895-142 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 142POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Read Out	Termination	Card Type	Gender	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Number of Positions/Bay/Row	Contact Material	Flange Feature [diameter]	Flange Feature [diameter]	Color	Contact Type	Number of Positions	Mounting Type	Contact Finish	Features	Flange Feature
EDAC Inc. 895-142-544-504	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Dual	Wire Wrap	Non Specified - Dual Edge	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	2	71	Copper Alloy	0.156 "	3.96 mm	Black	Cantilever	142	Through Hole	Gold

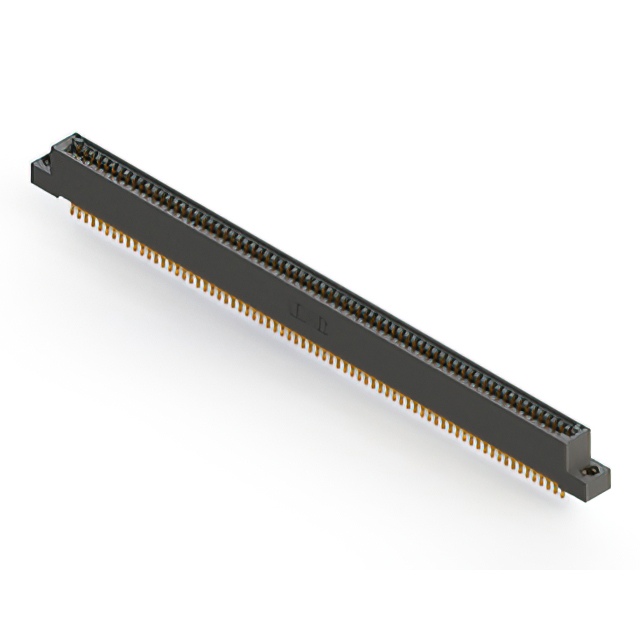

EDAC Inc. 895-142-555-208	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Dual	Solder	Non Specified - Dual Edge	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	2	71	Copper Alloy			Black	Cantilever	142	Board Edge Straddle Mount	Gold	Card Extender	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 895-142-541-202	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Dual	Wire Wrap	Non Specified - Dual Edge	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	2	71	Copper Alloy	0.128 "	3.25 mm	Black	Cantilever	142	Through Hole	Gold		Flush Mount Top Opening Unthreaded
EDAC Inc. 895-142-542-507	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Dual	Wire Wrap	Non Specified - Dual Edge	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	2	71	Copper Alloy			Black	Cantilever	142	Through Hole	Gold		M3 Threaded Insert Top Mount Opening
EDAC Inc. 895-142-521-208	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Dual	Solder	Non Specified - Dual Edge	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	2	71	Copper Alloy			Black	Cantilever	142	Through Hole	Gold		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 895-142-559-802	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Dual	Solder	Non Specified - Dual Edge	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	2	71	Copper Alloy	0.128 "	3.25 mm	Black	Cantilever	142	Right Angle Through Hole	Gold
EDAC Inc. 895-142-540-202	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Dual	Wire Wrap	Non Specified - Dual Edge	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	2	71	Copper Alloy	0.128 "	3.25 mm	Black	Cantilever	142	Through Hole	Gold		Flush Mount Top Opening Unthreaded

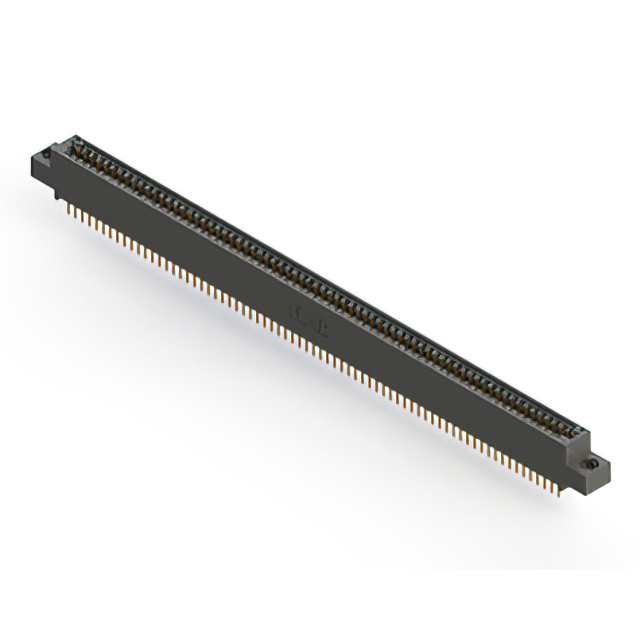

EDAC Inc. 895-142-520-507	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Dual	Solder	Non Specified - Dual Edge	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	2	71	Copper Alloy			Black	Cantilever	142	Through Hole	Gold		M3 Threaded Insert Top Mount Opening
EDAC Inc. 895-142-542-812	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Dual	Wire Wrap	Non Specified - Dual Edge	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	2	71	Copper Alloy	0.128 "	3.25 mm	Black	Cantilever	142	Through Hole	Gold		Side Mount Opening Unthreaded
EDAC Inc. 895-142-555-508	2	Polyphenylene Sulfide (PPS)	0.25 Ám	10 Áin	Dual	Solder	Non Specified - Dual Edge	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	125 °C	-40 C	2	71	Copper Alloy			Black	Cantilever	142	Board Edge Straddle Mount	Gold	Card Extender	4-40 Threaded Insert Top Mount Opening
