DF9B Series

Catalog

CONN HDR 23POS SMD TIN

Part	Number of Positions	Number of Rows [custom]	Connector Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features	Mated Stacking Heights	Contact Finish	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Number of Positions [custom]
Hirose Electric Co Ltd DF9B-23P-1V(32)	23	2	Header Center Strip Contacts	Surface Mount	1 Ám	39.4 Áin	Solder Retention	4.3 mm	Tin	3.3 mm	0.13 in	1 mm	0.039 in

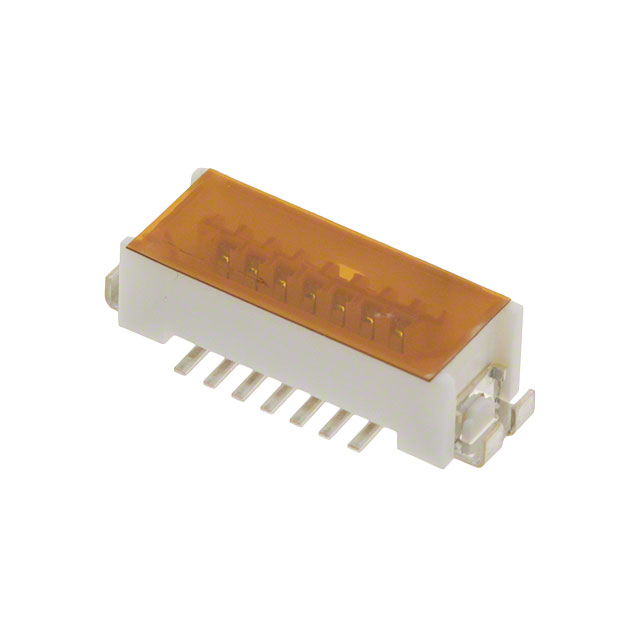

Hirose Electric Co Ltd DF9B-15P-1V(20)	15	2	Header Center Strip Contacts	Surface Mount			Solder Retention	4.3 mm	Tin	3.3 mm	0.13 in	1 mm	0.039 in

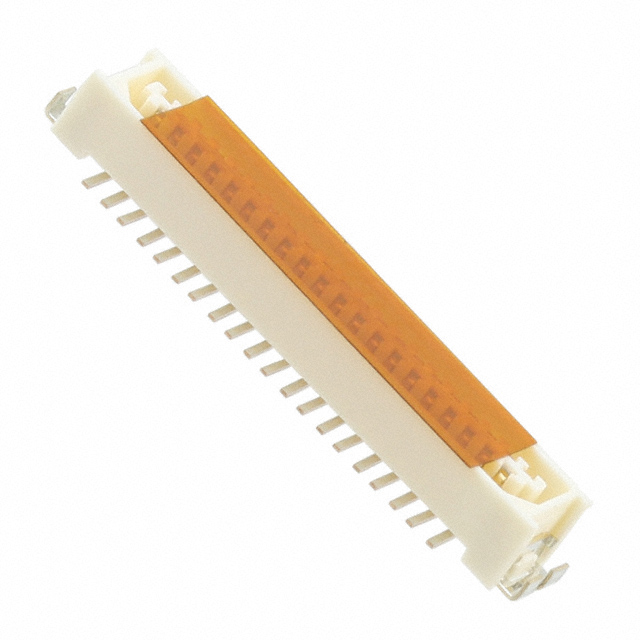

Hirose Electric Co Ltd DF9B-41P-1V(33)
Hirose Electric Co Ltd DF9B-31P-1V(69)		2	Header Center Strip Contacts	Surface Mount	0.203 çm	8 µin	Solder Retention	4.3 mm	Gold	3.3 mm	0.13 in	1 mm	0.039 in	31

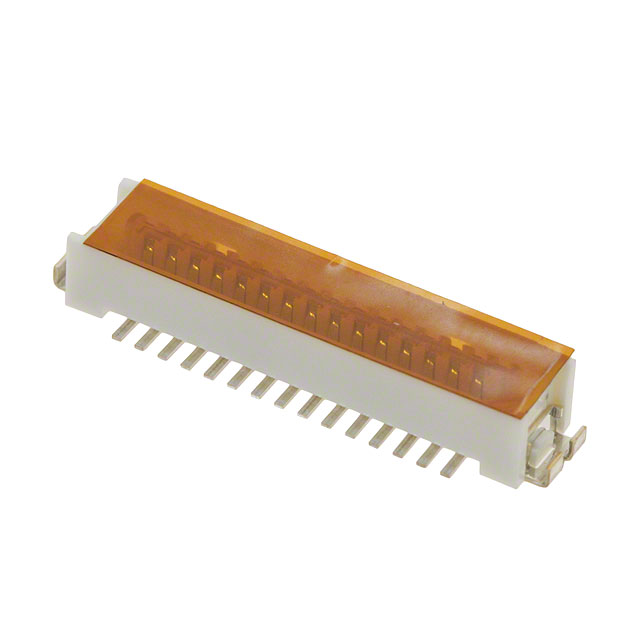

Hirose Electric Co Ltd DF9B-31S-1V(20)		2	Receptacle Outer Shroud Contacts	Surface Mount			Solder Retention	4.3 mm	Tin	3.3 mm	0.13 in	1 mm	0.039 in	31
Hirose Electric Co Ltd DF9B-19P-1V(32)	19	2	Header Center Strip Contacts	Surface Mount	1 Ám	39.4 Áin	Solder Retention	4.3 mm	Tin	3.3 mm	0.13 in	1 mm	0.039 in
Hirose Electric Co Ltd DF9B-23S-1V(32)	23	2	Receptacle Outer Shroud Contacts	Surface Mount	1 Ám	39.4 Áin	Solder Retention	4.3 mm	Tin	3.3 mm	0.13 in	1 mm	0.039 in

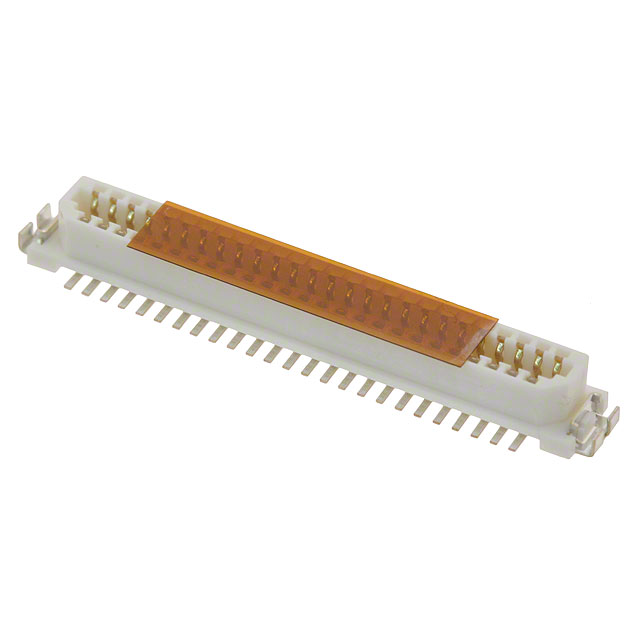

Hirose Electric Co Ltd DF9B-51S-1V(69)	51	2	Receptacle Outer Shroud Contacts	Surface Mount	0.203 çm	8 µin	Solder Retention	4.3 mm	Gold	3.3 mm	0.13 in	1 mm	0.039 in
Hirose Electric Co Ltd DF9B-41P-1V(22)	41	2	Header Center Strip Contacts	Surface Mount			Solder Retention	4.3 mm	Tin	3.3 mm	0.13 in	1 mm	0.039 in

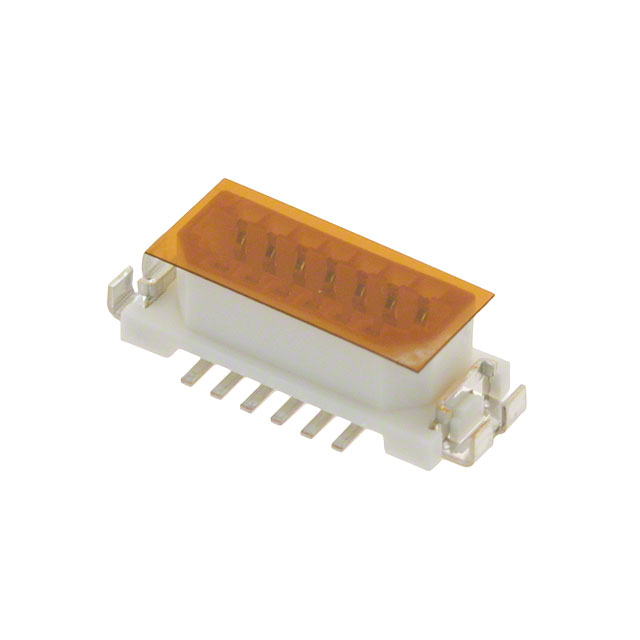

Hirose Electric Co Ltd DF9B-13S-1V(32)	13	2	Receptacle Outer Shroud Contacts	Surface Mount	1 Ám	39.4 Áin	Solder Retention	4.3 mm	Tin	3.3 mm	0.13 in	1 mm	0.039 in
