SP8M8 Series

Catalog

MOSFET N/P-CH 30V 6A/4.5A 8SOP

Part	FET Feature	Rds On (Max) @ Id, Vgs	Power - Max [Max]	Supplier Device Package	Vgs(th) (Max) @ Id	Package / Case	Package / Case	Package / Case	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Configuration	Drain to Source Voltage (Vdss)	Operating Temperature	Gate Charge (Qg) (Max) @ Vgs	Current - Continuous Drain (Id) @ 25°C	Technology

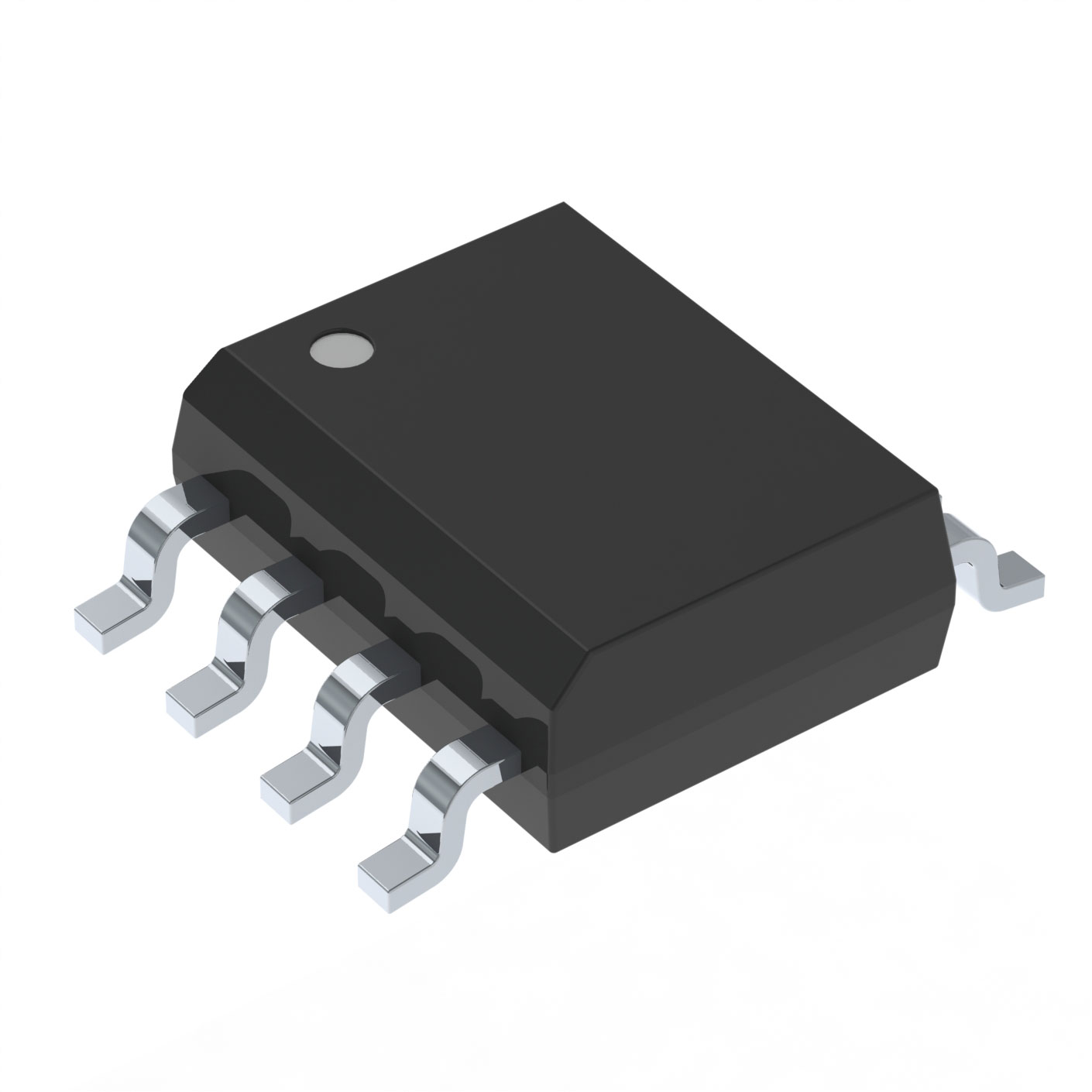

Rohm Semiconductor SP8M8FD5TB1	Logic Level Gate 4V Drive	30 mOhm 56 mOhm	2 W	8-SOP	2.5 V	0.154 in	8-SOIC	3.9 mm	Surface Mount	520 pF 850 pF	N and P-Channel	30 V	150 °C	7.2 nC 8.5 nC	4.5 A 6 A	MOSFET (Metal Oxide)
