E3034S Series

Catalog

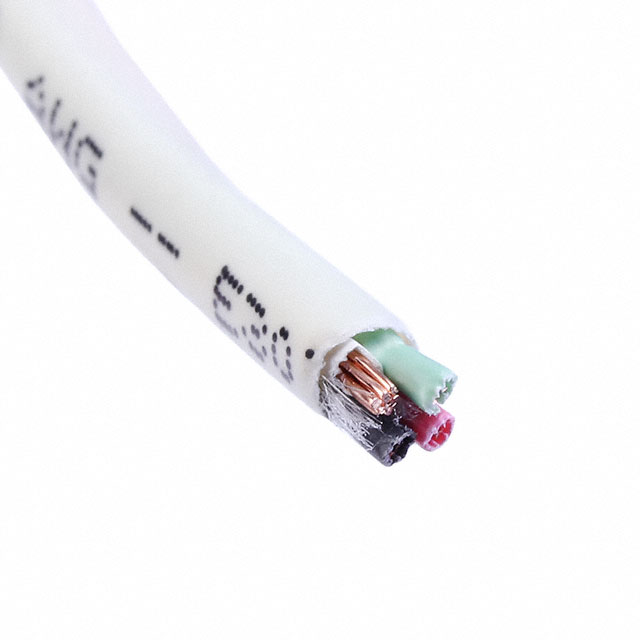

CABLE 4COND 18AWG WHITE

Part	Wire Gauge	Conductor Material	Cable Type	Number of Conductors	Ratings	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Usage	Jacket (Insulation) Material	Operating Temperature [Max]	Jacket Color	Voltage	Length [x]	Length [x]
Prysmian Group E3034S.30.02	18 AWG	Copper Bare	Multi-Conductor	4	ASTM B-3	0.381 mm	0.015 in	Poly-Vinyl Chloride (PVC)	0.187 in	4.75 mm	26 AWG	7	304.8 m	1000 ft	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)	75 ░C	White	300 VDC
Prysmian Group E3034S.69.86	18 AWG	Copper Annealed Bare	Multi-Conductor	4	ASTM B-3	0.381 mm	0.015 in	Poly-Vinyl Chloride (PVC)	0.187 in	4.75 mm	26 AWG	7	304.8 m	1000 ft	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)	75 ░C	Natural	300 VDC
Prysmian Group E3034S.41.86	18 AWG	Copper Annealed Bare	Multi-Conductor	4	ASTM B-3	0.381 mm	0.015 in	Poly-Vinyl Chloride (PVC)	0.187 in	4.75 mm	26 AWG	7	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)	75 ░C	Natural	300 VDC	100 ft	30.5 m
Prysmian Group E3034S.30.86	18 AWG	Copper Annealed Bare	Multi-Conductor	4	ASTM B-3	0.381 mm	0.015 in	Poly-Vinyl Chloride (PVC)	0.187 in	4.75 mm	26 AWG	7	304.8 m	1000 ft	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)	75 ░C	Natural	300 VDC
Prysmian Group E3034S.30.86	18 AWG	Copper Annealed Bare	Multi-Conductor	4	ASTM B-3	0.381 mm	0.015 in	Poly-Vinyl Chloride (PVC)	0.187 in	4.75 mm	26 AWG	7	304.8 m	1000 ft	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)	75 ░C	Natural	300 VDC
Prysmian Group E3034S.18.86	18 AWG	Copper Annealed Bare	Multi-Conductor	4	ASTM B-3	0.381 mm	0.015 in	Poly-Vinyl Chloride (PVC)	0.187 in	4.75 mm	26 AWG	7	152.4 m	500 ft	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)	75 ░C	Natural	300 VDC
Prysmian Group E3034S.41.86	18 AWG	Copper Annealed Bare	Multi-Conductor	4	ASTM B-3	0.381 mm	0.015 in	Poly-Vinyl Chloride (PVC)	0.187 in	4.75 mm	26 AWG	7	152.4 m 304.8 m	500 ft 1000 ft	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)	75 ░C	Natural	300 VDC	100 ft	30.5 m
Prysmian Group E3034S.41.05	18 AWG	Copper Annealed Bare	Multi-Conductor	4	ASTM B-3	0.381 mm	0.015 in	Poly-Vinyl Chloride (PVC)	0.187 in	4.75 mm	28 AWG	7	304.8 m	1000 ft	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)	75 ░C	Yellow	300 VDC
Prysmian Group E3034S.41.02	18 AWG	Copper Annealed Bare	Multi-Conductor	4	ASTM B-3	0.381 mm	0.015 in	Poly-Vinyl Chloride (PVC)	0.187 in	4.75 mm	26 AWG	7	15.24 m 304.8 m	50 ft 1000 ft	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)	75 ░C	White	300 VDC	25 ft 100 ft	7.62 m 30.5 m
Prysmian Group E3034S.69.86	18 AWG	Copper Annealed Bare	Multi-Conductor	4	ASTM B-3	0.381 mm	0.015 in	Poly-Vinyl Chloride (PVC)	0.187 in	4.75 mm	26 AWG	7	304.8 m	1000 ft	Alarm Security Sound	Plenum Poly-Vinyl Chloride (PVC)	75 ░C	Natural	300 VDC
