TCA39416 Series

Ultra-low-voltage I3C translator with rise time accelerators

Catalog

Ultra-low-voltage I3C translator with rise time accelerators

Part	Voltage - VCCA [Max]	Voltage - VCCA [Min]	Translator Type	Data Rate	Supplier Device Package	Voltage - VCCB [Min]	Voltage - VCCB [Max]	Number of Circuits	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Channel Type	Output Type	Mounting Type	Channels per Circuit
Texas Instruments TCA39416DDFR	1.98 V	0.72 V	Voltage Level	26 Mbps	TSOT-23-8	0.72 V	1.98 V	1	SOT-23-8 Thin TSOT-23-8	-40 °C	125 °C	Bidirectional	Tri-State	Surface Mount	2

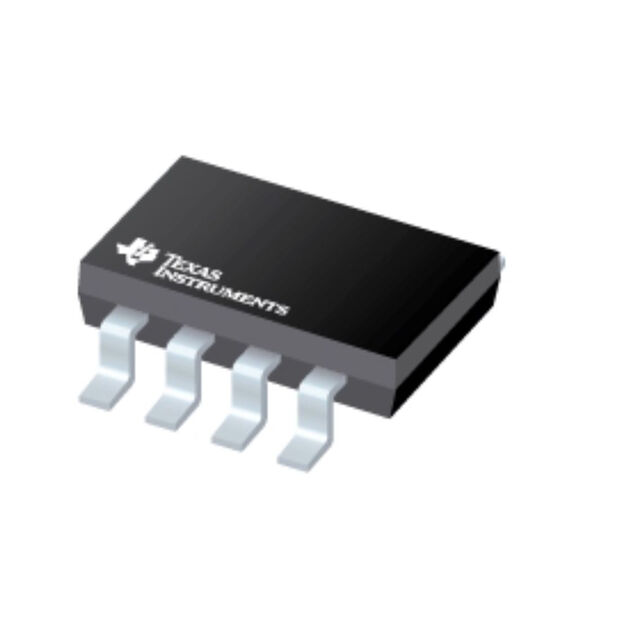

Texas Instruments TCA39416DTWR	1.98 V	0.72 V	Voltage Level	26 Mbps	8-XSON (1.35x1)	0.72 V	1.98 V	1	8-XFDFN	-40 °C	125 °C	Bidirectional	Non-Inverted	Surface Mount	2

Catalog

Ultra-low-voltage I3C translator with rise time accelerators

Key Features

• 2-bit dual supply bidirectional translator for I3C, I 2C, SMBus, SPI applicationsProvides bidirectional voltage translation with no direction pinHigh-impedance output Ax and Bx pins when OE = 0 V or V CC = 0 VInternal 10-kΩ pull-up resistor on Ax and Bx pins0.72 V to 1.98 V on both A and B ports; V CCA ≤ V CCBCompatible with MIPI I3C supporting speeds up to 12.5 MHzCompatible with JEDEC I3C module sideband bus specification (JESD403)V CC Isolation feature: If either V CC input is at GND, both A and B ports are in the high-impedance stateNo power-supply sequencing required: either V CCA or V CCB can be ramped firstLow I off of 2.5 µA when either V CCA or V CCB = 0 VOE input can be tied directly to V CCA or controlled by GPIOLatch-up performance exceeds 100 mA per JESD 78, class IIESD Protection exceeds JESD 224000-V Human-body model (A114-B)1500-V Charged-device model (C101)2-bit dual supply bidirectional translator for I3C, I 2C, SMBus, SPI applicationsProvides bidirectional voltage translation with no direction pinHigh-impedance output Ax and Bx pins when OE = 0 V or V CC = 0 VInternal 10-kΩ pull-up resistor on Ax and Bx pins0.72 V to 1.98 V on both A and B ports; V CCA ≤ V CCBCompatible with MIPI I3C supporting speeds up to 12.5 MHzCompatible with JEDEC I3C module sideband bus specification (JESD403)V CC Isolation feature: If either V CC input is at GND, both A and B ports are in the high-impedance stateNo power-supply sequencing required: either V CCA or V CCB can be ramped firstLow I off of 2.5 µA when either V CCA or V CCB = 0 VOE input can be tied directly to V CCA or controlled by GPIOLatch-up performance exceeds 100 mA per JESD 78, class IIESD Protection exceeds JESD 224000-V Human-body model (A114-B)1500-V Charged-device model (C101)

Description

The TCA39416 is a 2-bit bidirectional MIPI I3C v1.1.1, I 2C, SMBus and SPI voltage-level translator with an output enable (OE) input and rising and falling edge accelerators. It is operational from 0.72 V to 1.98 V on both the A-side and B-side with V CCA must be less than V CCB for proper operation. This limitation allows the device to interface between lower and higher logic signal levels at any of the typical 1-V, 1.2-V and 1.8-V supply rails. The OE input pin is referenced to V CCA, can be tied directly to V CCA, but it is also 1.98-V tolerant. The OE pin can also be controlled and set to a logic low to place all the Ax (A1, A2) and Bx (B1, B2) pins in a high-impedance state, which significantly reduces the quiescent current consumption. The TCA39416 is compatible with 12.5 MHz I3C speeds and also supports higher speed SPI applications with two devices. It also enables bidirectional voltage level translation for traditional I2C-bus/SMBus applications under normal I 2C and SMBus configurations. The TCA39416 features internal 10-kΩ pull-up resistors on Ax and Bx that act as high-keeper and are enabled based on respective V CC voltage when bus is high. The TCA39416 is a 2-bit bidirectional MIPI I3C v1.1.1, I 2C, SMBus and SPI voltage-level translator with an output enable (OE) input and rising and falling edge accelerators. It is operational from 0.72 V to 1.98 V on both the A-side and B-side with V CCA must be less than V CCB for proper operation. This limitation allows the device to interface between lower and higher logic signal levels at any of the typical 1-V, 1.2-V and 1.8-V supply rails. The OE input pin is referenced to V CCA, can be tied directly to V CCA, but it is also 1.98-V tolerant. The OE pin can also be controlled and set to a logic low to place all the Ax (A1, A2) and Bx (B1, B2) pins in a high-impedance state, which significantly reduces the quiescent current consumption. The TCA39416 is compatible with 12.5 MHz I3C speeds and also supports higher speed SPI applications with two devices. It also enables bidirectional voltage level translation for traditional I2C-bus/SMBus applications under normal I 2C and SMBus configurations. The TCA39416 features internal 10-kΩ pull-up resistors on Ax and Bx that act as high-keeper and are enabled based on respective V CC voltage when bus is high.
