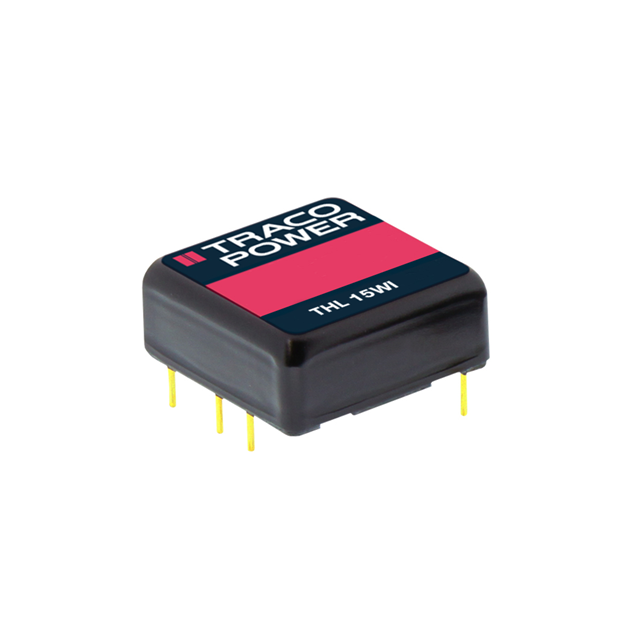

THL 15 Series
Manufacturer: Traco Power
Beta
⌘K
DC DC CONVERTER 12V 15W
| Part | Current - Output (Max) [Max] | Number of Outputs | Voltage - Isolation | Voltage - Input (Min) [Min] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Features | Type | Approval Agency | Voltage - Input (Max) [Max] | Applications | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Output 1 | Efficiency | Power (Watts) | Current - Output (Max) | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 1.25 A | 1 | 1800 V | 9 V | Through Hole | 70 °C | -40 C | 6-DIP Module | OCP OVP Remote On/Off SCP | Isolated Module | CB | 36 V | ITE (Commercial) | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 12 V | 88 % | 15 W | ||
Traco Power | 2 | 1800 V | 18 V | Through Hole | 70 °C | -40 C | 6-DIP Module | OCP OVP Remote On/Off SCP | Isolated Module | CB | 75 V | ITE (Commercial) | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 15 V | 89 % | 15 W | 500 mA | -15 V | |
 Traco Power | 3.4 A | 1 | 1800 V | 18 V | Through Hole | 70 °C | -40 C | 6-DIP Module | OCP OVP Remote On/Off SCP | Isolated Module | CB | 75 V | ITE (Commercial) | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 3.3 V | 86 % | 11 W |
