BALF Series

50 Ω nominal input / conjugate match balun to nRF51822-QFAAG0,\rnRF51822-QFAB0, nRF51422-QFAAE0 / integrated harmonic filter

Manufacturer: STMicroelectronics

Catalog

50 Ω nominal input / conjugate match balun to nRF51822-QFAAG0,\rnRF51822-QFAB0, nRF51422-QFAAE0 / integrated harmonic filter

Part	Phase Difference	Package / Case	Frequency Range [Max]	Frequency Range [Min]	Insertion Loss (Max)	Impedance - Unbalanced/Balanced [custom]	Impedance - Unbalanced/Balanced [custom]	Mounting Type	Insertion Loss (Max) [Max]	Return Loss (Min) [Min]	Impedance - Unbalanced/Balanced [custom]	Frequency Range

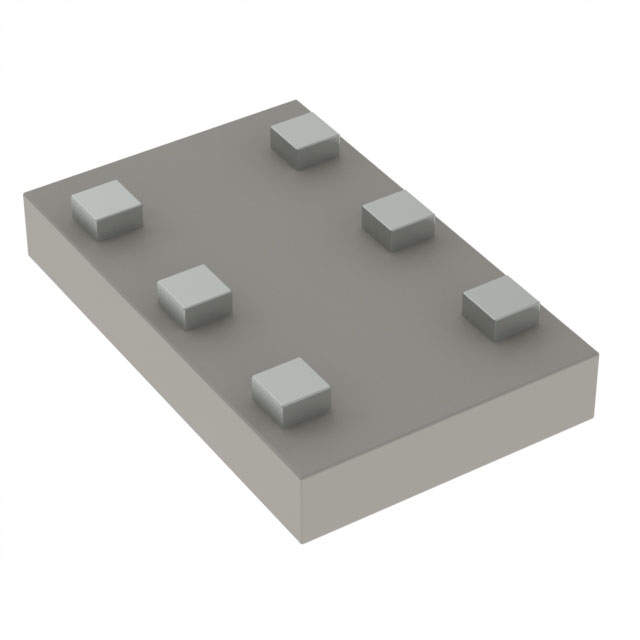

STMicroelectronics BALF-ATM-01E3	9 °	6-SMD No Lead	2.5 GHz	2.4 GHz	1.3 dB	50	50 Ohm	Surface Mount

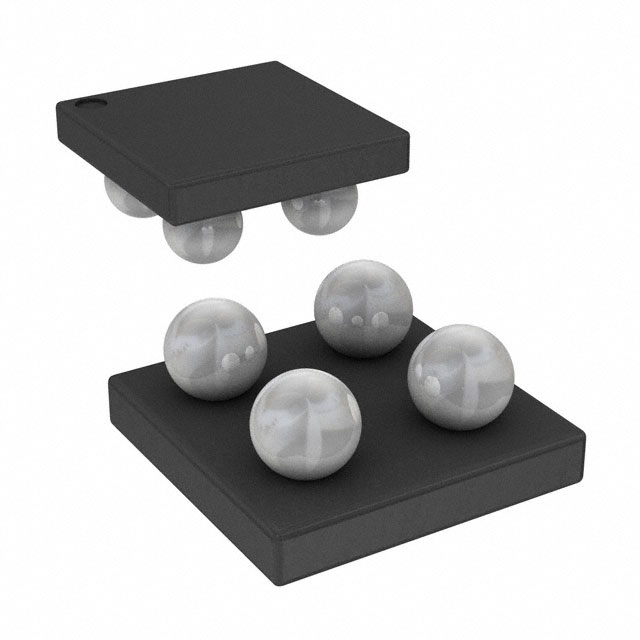

STMicroelectronics BALF-CC25-02D3	7 °	4-WFBGA FCBGA	2.5 GHz	2.4 GHz		50	50 Ohm	Surface Mount	1.6 dB
STMicroelectronics BALF-NRF01D3	5 °		2.5 GHz	2.4 GHz		50	50 Ohm	Surface Mount	1.5 dB	-17.5 dB

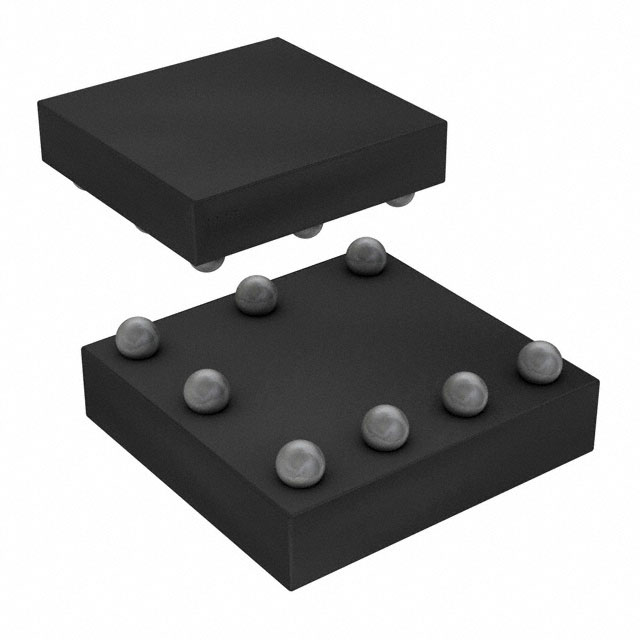

STMicroelectronics BALF-112X-02D3		8-UFBGA CSPBGA	436 MHz	431 MHz	1.3 dB	50	50 Ohm	Surface Mount		-20 dBm

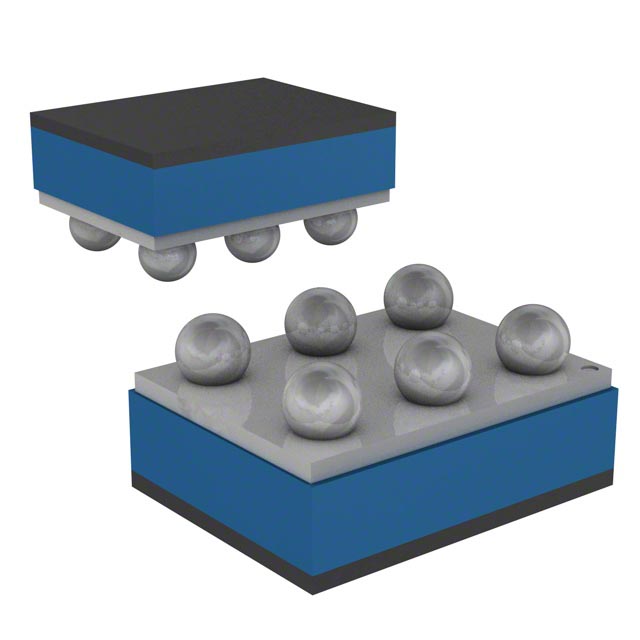

STMicroelectronics BALF-SPI2-02D3	2.1 °	6-WFBGA FCBGA				50 Ohm		Surface Mount	3.6 dB	6.5 dB	-	433 MHz

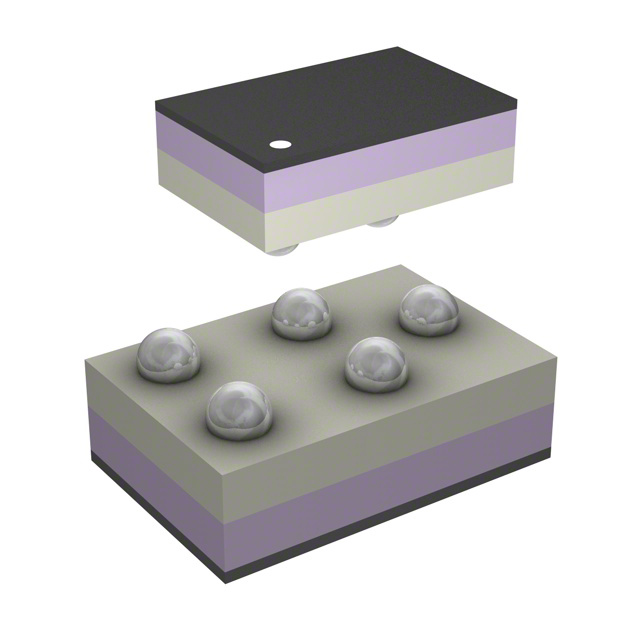

STMicroelectronics BALF-CC26-05D3		5-UFBGA CSPBGA	2.5 GHz	2.4 GHz		50	50 Ohm	Surface Mount	1.2 dB	-23 dB

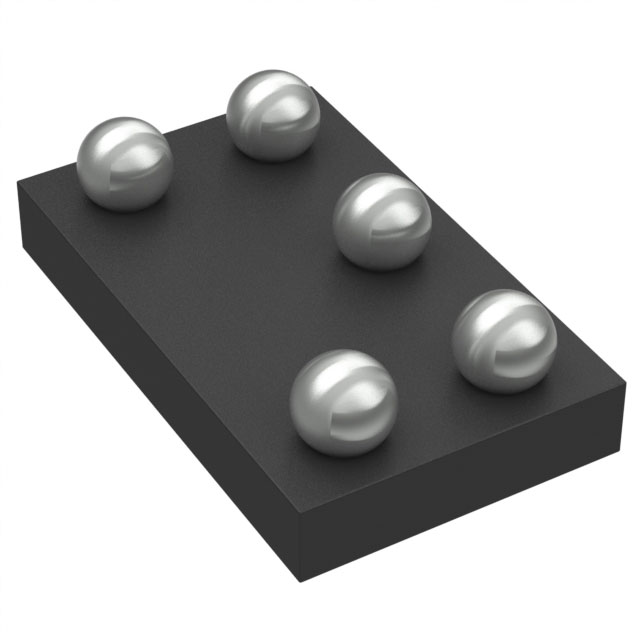

STMicroelectronics BALF-NRF01J5	7 °	5-XFBGA FCBGA	2.54 GHz	2.4 GHz				Surface Mount	2.4 dB	9 dB

Catalog

50 Ω nominal input / conjugate match balun to nRF51822-QFAAG0,\rnRF51822-QFAB0, nRF51422-QFAAE0 / integrated harmonic filter

Description

STMicroelectronics BALF-NRF01D3 is an ultraminiature balun. The BALF-NRF01D3 integrates matching network in a monolithic glass substrate. Matching impedance has been customized for the nRF51822-QFAA/QFAB, and nRF51422-QFAA/QFAB RF transceivers. The BALF-NRF01D3 uses STMicroelectronics IPD technology on non-conductive glass substrate which optimize RF performance.
