664-015 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

664 SERIES RIGHT ANGLE DUAL D-SU

...

Part	Contact Material	Dielectric Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Number of Positions	Number of Positions	Backset Spacing	Backset Spacing	Termination	Mounting Type	Connector Style	Number of Rows [custom]	Connector Type	Shell Material, Finish	Features	Flange Feature	Flange Feature	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Material Flammability Rating	Contact Finish Thickness

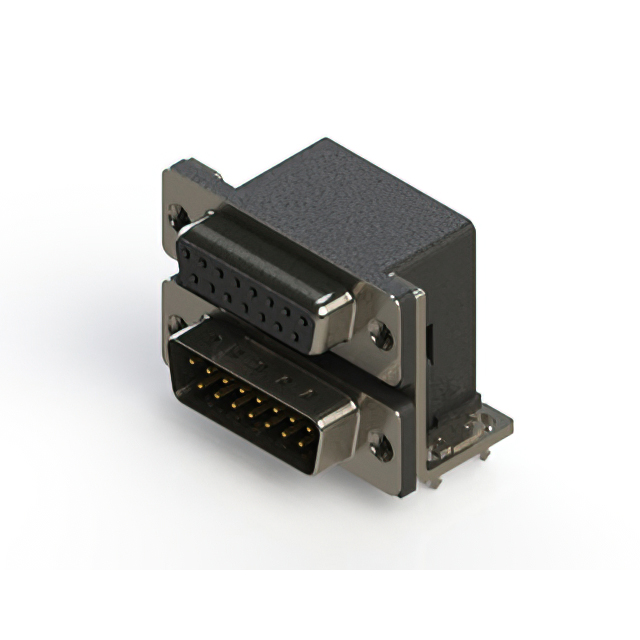

EDAC Inc. 664-015-364-032	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 C	85 °C	Gold	15	15	8.08 mm	0.318 "	Solder	Right Angle Through Hole	D-Sub - Stacked	2	Plug Male Pins Receptacle Female Socket	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets Shielded	Housing/Shell	4-40	3 A	2	2	0.38 µm	15 µin	Signal	UL94 V-0
EDAC Inc. 664-015-264-039	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 C	85 °C	Gold	15	15	8.08 mm	0.318 "	Solder	Right Angle Through Hole	D-Sub - Stacked	2	Plug Male Pins Receptacle Female Socket	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets Shielded	4-40 Mating Side Female Screwlock		3 A	2	2			Signal	UL94 V-0	Flash
EDAC Inc. 664-015-364-054	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 C	85 °C	Gold	15	15	8.08 mm	0.318 "	Solder	Right Angle Through Hole	D-Sub - Stacked	2	Plug Male Pins Receptacle Female Socket	Nickel Plated Steel	Grounding Indents Mounting Brackets Shielded	Housing/Shell (Unthreaded)		3 A	2	2	0.38 µm	15 µin	Signal	UL94 V-0
EDAC Inc. 664-015-664-009	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 C	85 °C	Gold	15	15	8.08 mm	0.318 "	Solder	Right Angle Through Hole	D-Sub - Stacked	2	Plug Male Pins Receptacle Female Socket	Nickel Plated Steel	Grounding Indents Shielded	4-40 Mating Side Female Screwlock		3 A	2	2	0.76 Ám	30 Áin	Signal	UL94 V-0

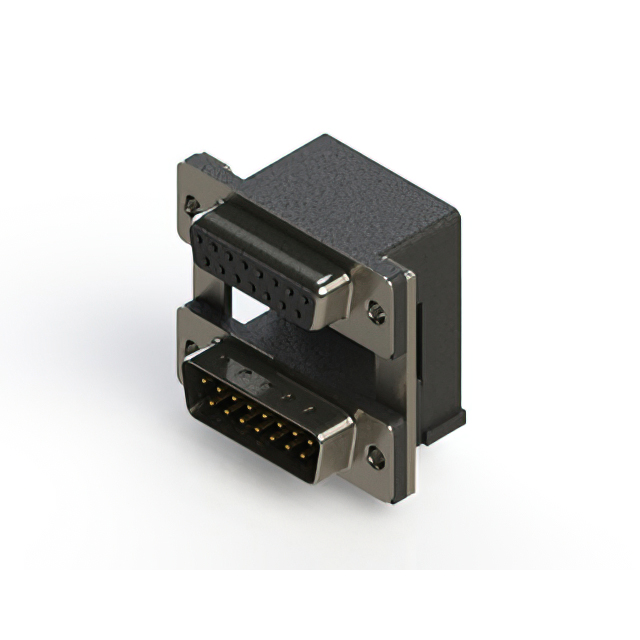

EDAC Inc. 664-015-264-00C	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 C	85 °C	Gold	15	15	8.08 mm	0.318 "	Solder	Right Angle Through Hole	D-Sub - Stacked	2	Plug Male Pins Receptacle Female Socket	Nickel Plated Steel	Grounding Indents Shielded	Housing/Shell (M3)		3 A	2	2			Signal	UL94 V-0	Flash
EDAC Inc. 664-015-364-004	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 C	85 °C	Gold	15	15	8.08 mm	0.318 "	Solder	Right Angle Through Hole	D-Sub - Stacked	2	Plug Male Pins Receptacle Female Socket	Nickel Plated Steel	Grounding Indents Shielded	Housing/Shell (Unthreaded)		3 A	2	2	0.38 µm	15 µin	Signal	UL94 V-0
EDAC Inc. 664-015-664-033	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 C	85 °C	Gold	15	15	8.08 mm	0.318 "	Solder	Right Angle Through Hole	D-Sub - Stacked	2	Plug Male Pins Receptacle Female Socket	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets Shielded	4-40 Mating Side Female Screwlock		3 A	2	2	0.76 Ám	30 Áin	Signal	UL94 V-0
EDAC Inc. 664-015-664-055	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 C	85 °C	Gold	15	15	8.08 mm	0.318 "	Solder	Right Angle Through Hole	D-Sub - Stacked	2	Plug Male Pins Receptacle Female Socket	Nickel Plated Steel	Grounding Indents Mounting Brackets Shielded	Housing/Shell	4-40	3 A	2	2	0.76 Ám	30 Áin	Signal	UL94 V-0

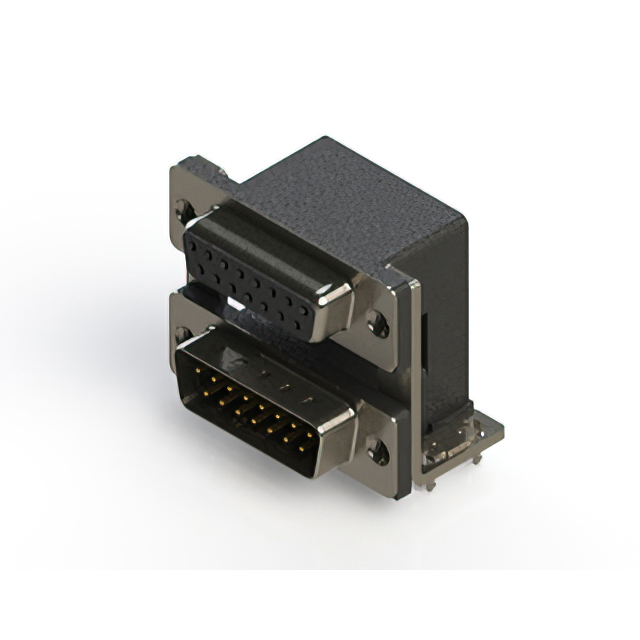

EDAC Inc. 664-015-664-035	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 C	85 °C	Gold	15	15	8.08 mm	0.318 "	Solder	Right Angle Through Hole	D-Sub - Stacked	2	Plug Male Pins Receptacle Female Socket	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets Shielded	Housing/Shell	4-40	3 A	2	2	0.76 Ám	30 Áin	Signal	UL94 V-0

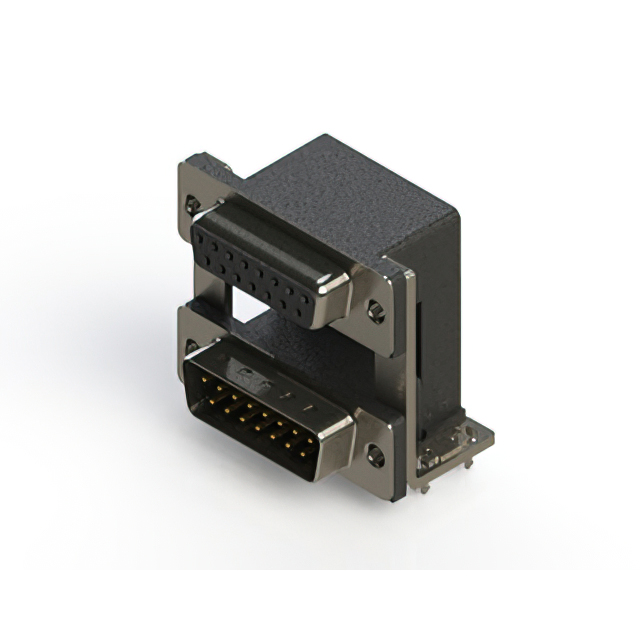

EDAC Inc. 664-015-364-03A	Brass Phosphor Bronze	Polyester Thermoplastic	Black	-55 C	85 °C	Gold	15	15	8.08 mm	0.318 "	Solder	Right Angle Through Hole	D-Sub - Stacked	2	Plug Male Pins Receptacle Female Socket	Nickel Plated Steel	Board Lock Grounding Indents Mounting Brackets Shielded	Housing/Shell (M3)		3 A	2	2	0.38 µm	15 µin	Signal	UL94 V-0
