2N70 Series

Catalog

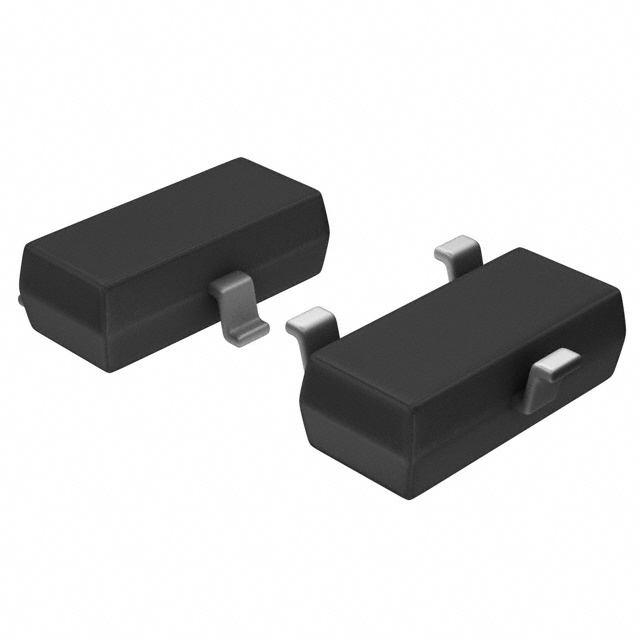

MOSFET N-CH 60V 200MA SOT23-3

Part	FET Type	Package / Case	Input Capacitance (Ciss) (Max) @ Vds [Max]	Drive Voltage (Max Rds On, Min Rds On)	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Vgs (Max)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Vgs(th) (Max) @ Id	Mounting Type	Drain to Source Voltage (Vdss)	Power Dissipation (Max)	Package / Case	Power Dissipation (Max) [Max]
STMicroelectronics 2N7002	N-Channel	SC-59 SOT-23-3 TO-236-3	43 pF	4.5 V 10 V	200 mA	5 Ohm	18 V	SOT-23-3	150 °C	-55 °C	MOSFET (Metal Oxide)	3 V	Surface Mount	60 V	350 mW
STMicroelectronics 2N7000	N-Channel	TO-226-3 TO-92-3	43 pF	4.5 V 10 V	350 mA	5 Ohm	18 V	TO-92-3	150 °C	-55 °C	MOSFET (Metal Oxide)	3 V	Through Hole	60 V		TO-226AA	1 W
