PMCM950 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K

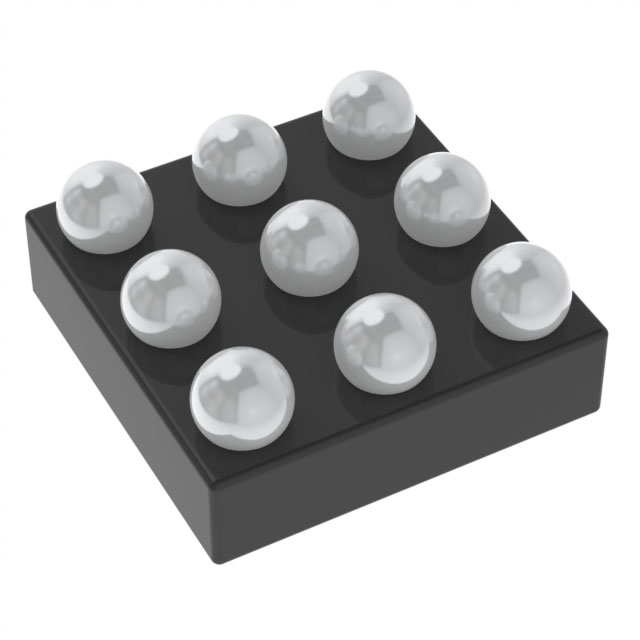

MOSFET N-CH 60V 4.8A 9WLCSP
| Part | Input Capacitance (Ciss) (Max) @ Vds [Max] | Current - Continuous Drain (Id) @ 25°C | Drain to Source Voltage (Vdss) | Vgs (Max) | Rds On (Max) @ Id, Vgs | Supplier Device Package | Gate Charge (Qg) (Max) @ Vgs [Max] | Power Dissipation (Max) | Vgs(th) (Max) @ Id | Drive Voltage (Max Rds On, Min Rds On) | Technology | Package / Case | FET Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Freescale Semiconductor - NXP | 1160 pF | 4.8 A | 60 V | 20 V | 41 mOhm | 9-WLCSP (1.48x1.48) | 45 nC | 12.5 W 780 mW | 1.5 V | 4.5 V 10 V | MOSFET (Metal Oxide) | 9-XFBGA WLCSP | N-Channel | Surface Mount | -55 °C | 150 °C |
