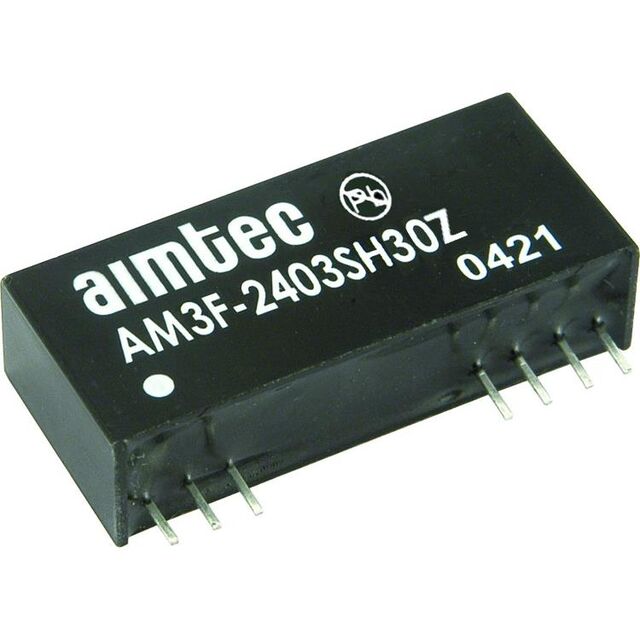

AM3F Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 15V 3W

Part	Voltage - Output 1	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Voltage - Isolation	Applications	Voltage - Input (Max) [Max]	Efficiency	Type	Approval Agency	Mounting Type	Power (Watts)	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
aimtec AM3F-2415SH30Z	15 V	21.6 V	200 mA	3000 V	ITE (Commercial)	26.4 V	71 %	Isolated Module	CE	Through Hole	3 W	1	1.26 in 32 mm	0.57 in 14.5 mm	0.32 in 8 mm	12-SIP Module	85 °C	-25 °C
aimtec AM3F-1205SH30Z	5 V	10.8 V	600 mA	3000 V	ITE (Commercial)	13.2 V	64 %	Isolated Module	CE	Through Hole	3 W	1	1.26 in 32 mm	0.57 in 14.5 mm	0.32 in 8 mm	12-SIP Module	85 °C	-25 °C
aimtec AM3F-0524SH30Z	24 V	4.5 V	125 mA	3000 V	ITE (Commercial)	5.5 V	69 %	Isolated Module	CE	Through Hole	3 W	1	1.26 in 32 mm	0.57 in 14.5 mm	0.32 in 8 mm	12-SIP Module	85 °C	-25 °C
aimtec AM3F-0503SH30Z	3.3 V	4.5 V	600 mA	3000 V	ITE (Commercial)	5.5 V	55 %	Isolated Module		Through Hole	2 W	1	31.8 mm	14 mm	8.6 mm		85 °C	-25 °C	0.55 in	1.25 in	0.34 in
