A15896 Series

Manufacturer: Laird Technologies - Thermal Materials

Catalog

THERM PAD 228.6MMX228.6MM GRAY

Part	Shelf Life Start	Shelf Life	Outline [y]	Outline [x]	Material	Shape	Color	Thickness	Thickness	Thermal Conductivity	Type	Adhesive	Thickness [custom]	Thickness [custom]
Laird Technologies - Thermal Materials A15896-13	Date of Shipment	24 Months	228.6 mm	228.6 mm	Silicone	Square	Gray	0.13 in	3.3 mm	5 W/m-K	Gap Filler Pad Sheet	Tacky - Both Sides

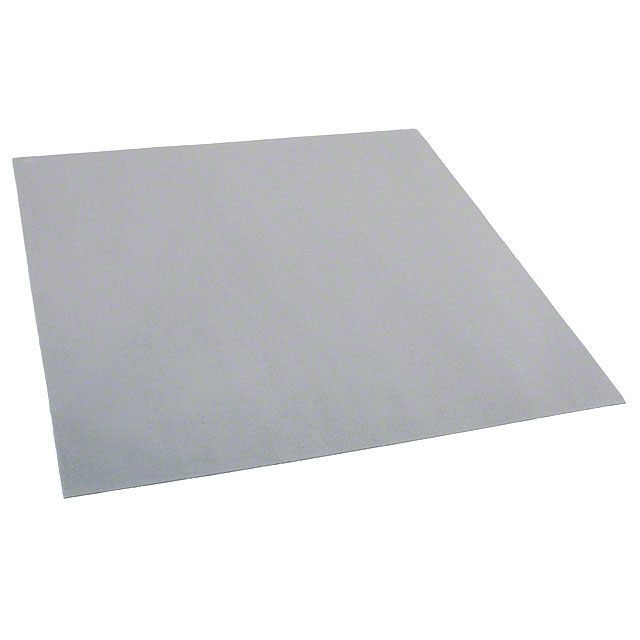

Laird Technologies - Thermal Materials A15896-04	Date of Shipment	24 Months	228.6 mm	228.6 mm	Silicone	Square	Gray	0.04 in	1.016 mm	5 W/m-K	Gap Filler Pad Sheet	Tacky - Both Sides

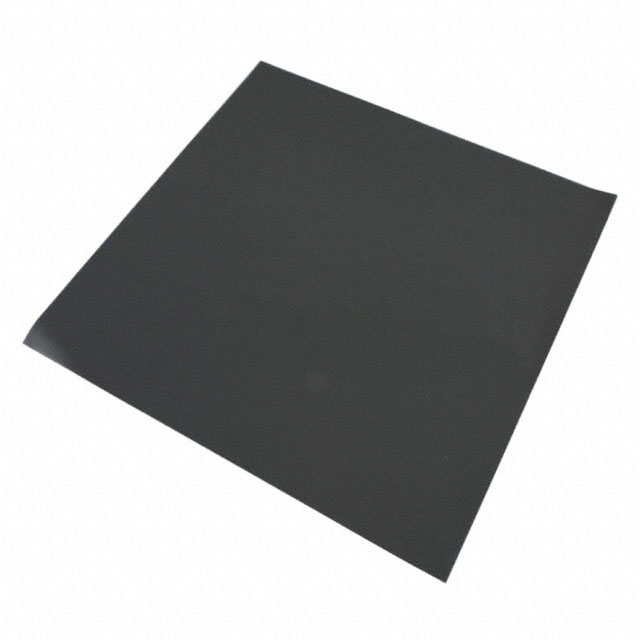

Laird Technologies - Thermal Materials A15896-02	Date of Certification	24 Months	228.6 mm	228.6 mm	Silicone	Square	Gray	0.02 in	0.508 mm	5 W/m-K	Gap Filler Pad Sheet	Tacky - Both Sides
Laird Technologies - Thermal Materials A15896-17	Date of Shipment	24 Months	228.6 mm	228.6 mm	Silicone	Square	Gray	0.17 "	4.32 mm	5 W/m-K	Gap Filler Pad Sheet	Tacky - Both Sides
Laird Technologies - Thermal Materials A15896-11	Date of Shipment	24 Months	228.6 mm	228.6 mm	Silicone	Square	Gray	0.11 in	2.79 mm	5 W/m-K	Gap Filler Pad Sheet	Tacky - Both Sides
Laird Technologies - Thermal Materials A15896-19	Date of Shipment	24 Months	228.6 mm	228.6 mm	Silicone	Square	Gray	0.19 in	4.83 mm	5 W/m-K	Gap Filler Pad Sheet	Tacky - Both Sides
Laird Technologies - Thermal Materials A15896-07	Date of Shipment	24 Months	228.6 mm	228.6 mm	Silicone	Square	Gray	0.07 in	1.778 mm	5 W/m-K	Gap Filler Pad Sheet	Tacky - Both Sides
Laird Technologies - Thermal Materials A15896-31	Date of Shipment	24 Months	228.6 mm	228.6 mm	Silicone	Square	Gray	0.16 "	4.06 mm	5 W/m-K	Gap Filler Pad Sheet	Tacky - Both Sides
Laird Technologies - Thermal Materials A15896-09	Date of Shipment	24 Months	228.6 mm	228.6 mm	Silicone	Square	Gray	0.09 in	2.286 mm	5 W/m-K	Gap Filler Pad Sheet	Tacky - Both Sides
Laird Technologies - Thermal Materials A15896-14	Date of Shipment	24 Months	228.6 mm	228.6 mm	Silicone	Square	Gray			5 W/m-K	Gap Filler Pad Sheet	Tacky - Both Sides	3.56 mm	0.14 in
