ADAS3022 Series
Manufacturer: Analog Devices
Beta
⌘K

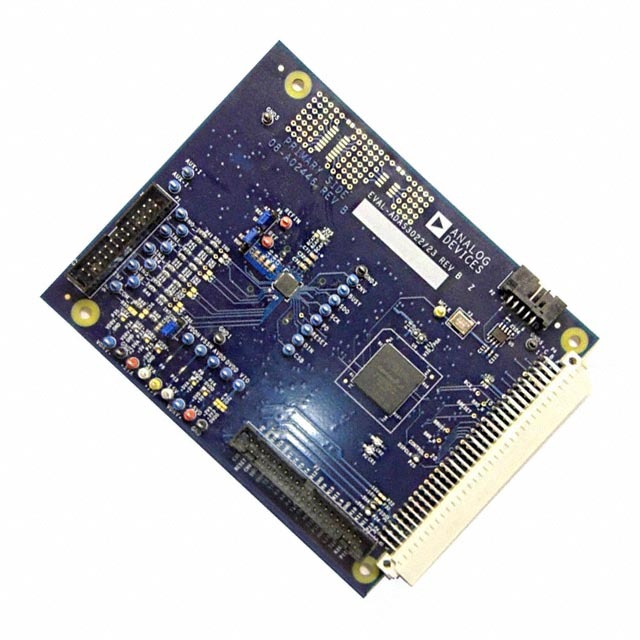

BOARD EVAL FOR ADAS3022
| Part | Number of A/D Converters | Input Range | Number of Bits | Data Interface | Utilized IC / Part | Sampling Rate (Per Second) | Supplied Contents | Input Type | Number of Inputs | Reference Type | Architecture | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Features | Package / Case | Voltage - Supply, Analog | Configuration | Voltage - Supply, Digital | Ratio - S/H:ADC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 1 | 24.576 V | 16 | SPI | ADAS3022 | 1 M | Board(s) | ||||||||||||||
 Analog Devices | 1 | 16 | SPI | 1 M | Differential Single Ended | 4 8 | External Internal | SAR | 40-LFCSP-VQ (6x6) | 85 °C | -40 °C | Surface Mount | PGA Temperature Sensor | 40-VFQFN Exposed Pad CSP | 5 V | MUX-PGA-ADC | 5 V | ||||
 Analog Devices | 1 | 16 | DSP MICROWIRE™ QSPI™ SPI™ | 1 M | Differential Single Ended | 4 8 | External Internal | SAR | 48-LQFP (7x7) | 84 °C | -40 °C | Surface Mount | PGA Temperature Sensor | 48-LQFP | 5 V | MUX-PGA-ADC | 5 V | 0:1 |
