C0780 Series
Manufacturer: Prysmian Group
Beta
⌘K

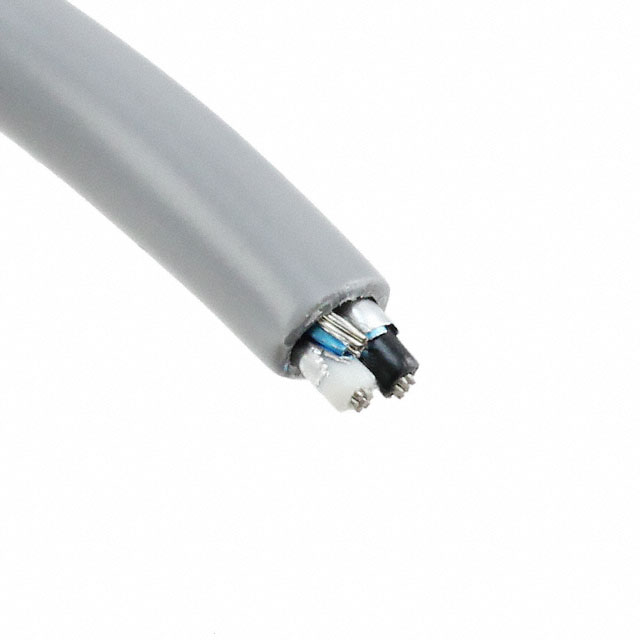

CABLE 2COND 20AWG GRAY SHLD 100'
| Part | Features | Shield Coverage | Wire Gauge | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Shield Type | Cable Type | Jacket (Insulation) Material | Conductor Material | Length [x] | Length [x] | Usage | Voltage | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Drain Wire | 100 % | 20 AWG | 152.4 m 304.8 m | 500 ft 1000 ft | 28 AWG | 7 | Flexfoil® | 5.26 mm | 0.207 in | Gray | Foil | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Copper Annealed Tinned | 100 ft | 30.5 m | Computer | 300 VDC | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 2 | 0.813 mm | 0.032 in | ASTM B-33 |
Prysmian Group | Drain Wire | 20 AWG | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 28 AWG | 7 | 5.26 mm | 0.207 in | Gray | Foil | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Copper Annealed Tinned | 100 ft | 30.5 m | Computer | 300 VDC | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 2 | 0.813 mm | 0.032 in | ASTM B-33 |
