GT13SH Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN HOUSING FOR F TERMINALS
| Part | For Use With/Related Products | Features | Color | Body Material | Connector Style | Accessory Type | Voltage Rating | Mating Cycles | Dielectric Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Fastening Type | Center Contact Material | Housing Color | Mounting Type | Number of Ports | Frequency - Max [Max] | Connector Type | Impedance | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

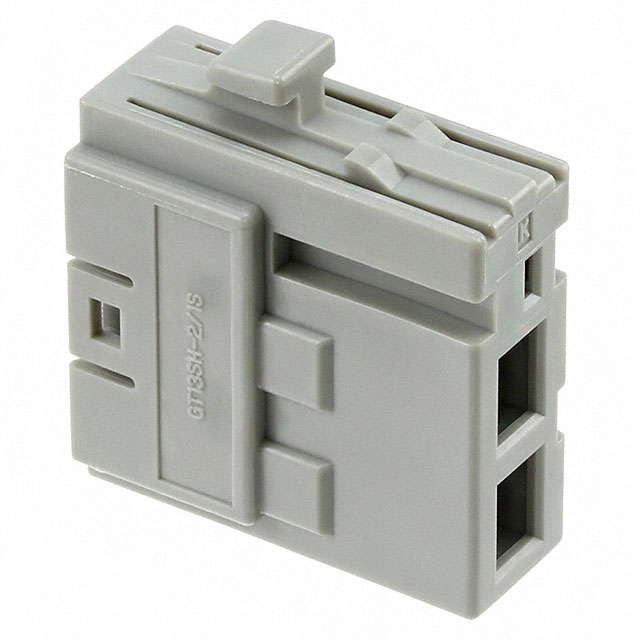

 Hirose Electric Co Ltd | F Terminals | 2 Positions | Gray | Polybutylene Terephthalate (PBT) | F | Housing | ||||||||||||||||
 Hirose Electric Co Ltd | Board Lock Mounting Flange | Polybutylene Terephthalate (PBT) | Coaxial | 250 V | 30 | Polybutylene Terephthalate (PBT) | Tin | -30 ░C | 105 ░C | Solder | Push-Pull | Copper Alloy | Gray | Right Angle Through Hole | 2 | 1 GHz | Receptacle Male Pin | 50 Ohms | ||||
 Hirose Electric Co Ltd | Board Lock | Polybutylene Terephthalate (PBT) | Coaxial | 250 V | 30 | Polybutylene Terephthalate (PBT) | Tin | -30 ░C | 105 ░C | Solder | Push-Pull | Copper Alloy | Gray | Right Angle Through Hole | 3 | 1 GHz | Receptacle Male Pin | 50 Ohms | ||||

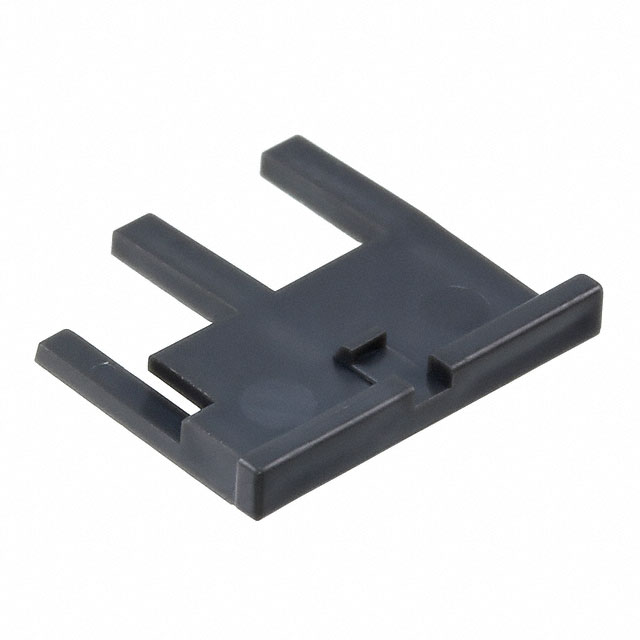

 Hirose Electric Co Ltd | GT13 Housings | Gray | Polybutylene Terephthalate (PBT) | Retainer | 3 Positions | |||||||||||||||||
 Hirose Electric Co Ltd | F Terminals | 3 Positions | Gray | Polybutylene Terephthalate (PBT) | F | Housing | ||||||||||||||||
Hirose Electric Co Ltd | ||||||||||||||||||||||

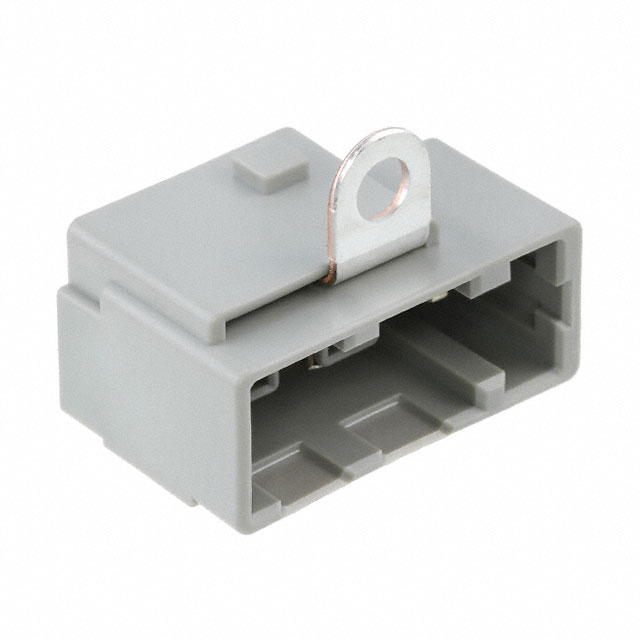

 Hirose Electric Co Ltd | Board Lock Mounting Flange | Polybutylene Terephthalate (PBT) | Coaxial | 250 V | 30 | Polybutylene Terephthalate (PBT) | Tin | -30 ░C | 105 ░C | Solder | Push-Pull | Copper Alloy | Gray | Right Angle Through Hole | 2 | 1 GHz | Receptacle Male Pin | 50 Ohms | ||||

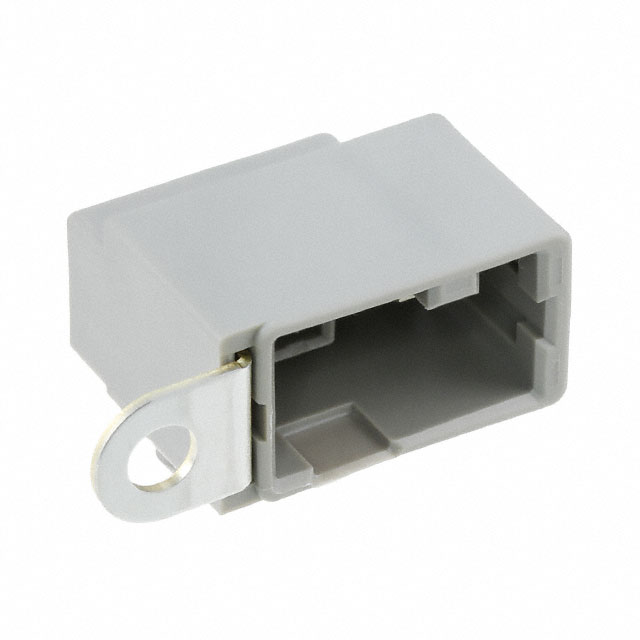

Hirose Electric Co Ltd | Board Lock | Polybutylene Terephthalate (PBT) | Coaxial | 250 V | 30 | Polybutylene Terephthalate (PBT) | Tin | -30 ░C | 105 ░C | Solder | Push-Pull | Copper Alloy | Gray | Right Angle Through Hole | 1 | 1 GHz | Receptacle Male Pin | 50 Ohms | ||||

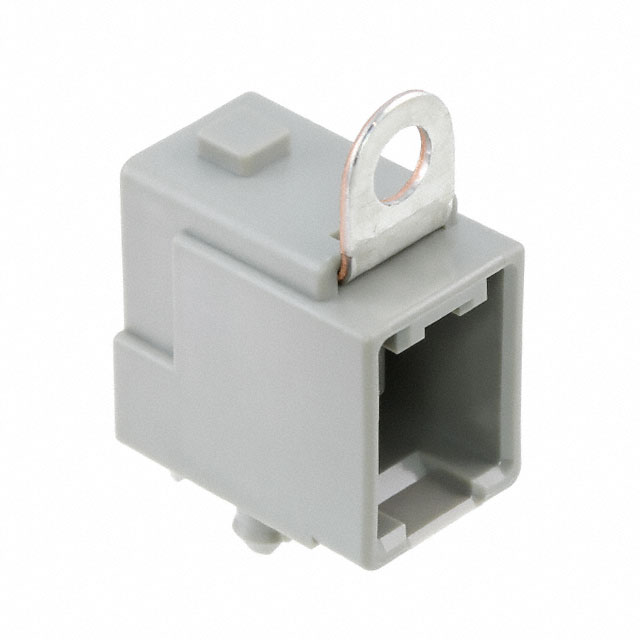

 Hirose Electric Co Ltd | Board Lock Mounting Flange | Polybutylene Terephthalate (PBT) | Coaxial | 250 V | 30 | Polybutylene Terephthalate (PBT) | Tin | -30 ░C | 105 ░C | Solder | Push-Pull | Copper Alloy | Gray | Right Angle Through Hole | 1 | 1 GHz | Receptacle Male Pin | 50 Ohms | ||||
Hirose Electric Co Ltd | F Terminals | 2 Position Keyed | Brown | Polybutylene Terephthalate (PBT) | F | Housing |
