A2-3PA-2 Series

Catalog

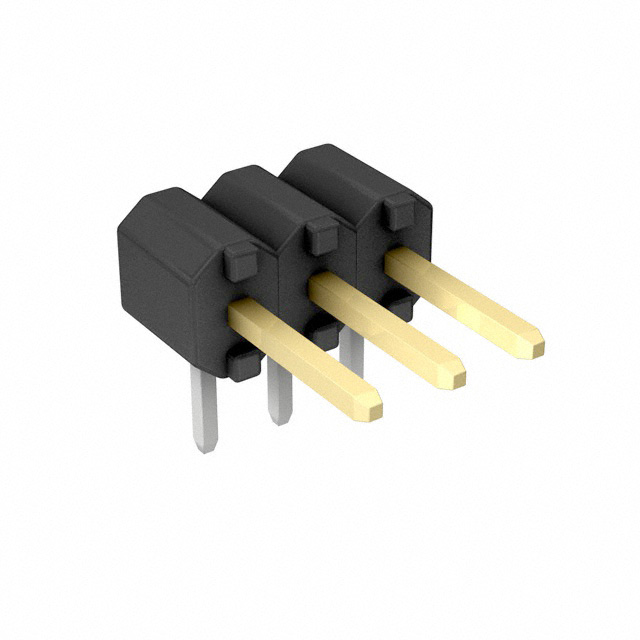

CONN HEADER R/A 3POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Connector Type	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Style	Contact Finish - Mating	Shrouding	Contact Type	Insulation Color	Contact Material	Fastening Type	Insulation Material	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Contact Shape	Termination	Mounting Type	Material Flammability Rating	Number of Rows	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length
Hirose Electric Co Ltd A2-3PA-2.54DS(71)	78.7 µin	2 µm	Header	4 mm	0.157 in	0.138 in	3.5 mm	8 µin	0.203 µm	200 V	-55 C	85 °C	Tin	0.1 "	2.54 mm	3 A	Board to Board Cable	Gold	Unshrouded	Male Pin	Black	Brass	Push-Pull	Polybutylene Terephthalate (PBT)	6 mm	0.236 in	All	Square	Solder	Right Angle Through Hole	UL94 V-0	1

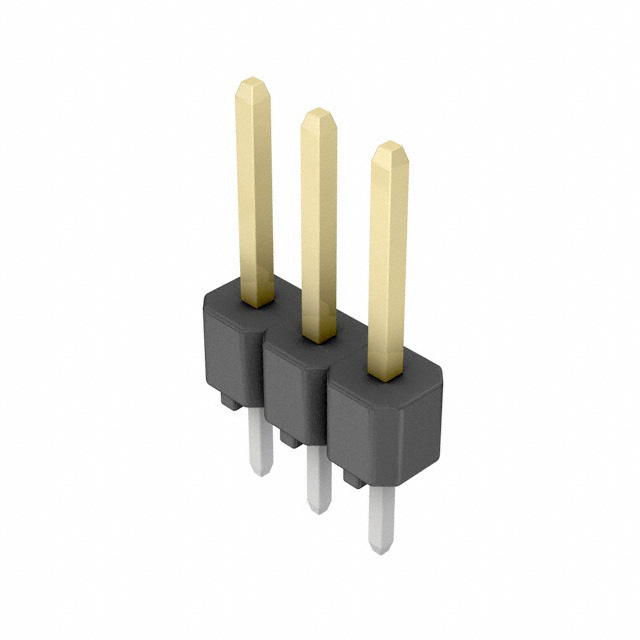

Hirose Electric Co Ltd A2-3PA-2.54DSA(71)	78.7 µin	2 µm	Header			0.118 in	3 mm	8 µin	0.203 µm	200 V	-55 C	85 °C	Tin	0.1 "	2.54 mm	3 A	Board to Board Cable	Gold	Unshrouded	Male Pin	Black	Brass	Push-Pull	Polybutylene Terephthalate (PBT)	6 mm	0.236 in	All	Square	Solder	Through Hole	UL94 V-0	1	0.1 in	2.54 mm	11.54 mm	0.454 "
Hirose Electric Co Ltd A2-3PA-2.54DSA(74)	78.7 µin	2 µm	Header			0.118 in	3 mm	19.7 µin	0.5 µm	200 V	-55 C	85 °C	Tin	0.1 "	2.54 mm	3 A	Board to Board Cable	Gold	Unshrouded	Male Pin	Black	Brass	Push-Pull	Polybutylene Terephthalate (PBT)	6 mm	0.236 in	All	Square	Solder	Through Hole	UL94 V-0	1	0.1 in	2.54 mm	11.54 mm	0.454 "
