803-41 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

CONN RCPT 60POS 0.1 GOLD PCB

...

Part	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Current Rating (Amps)	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Insulation Color	Contact Finish - Post	Contact Finish - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Type	Connector Type	Termination	Fastening Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Rows [custom]	Number of Positions

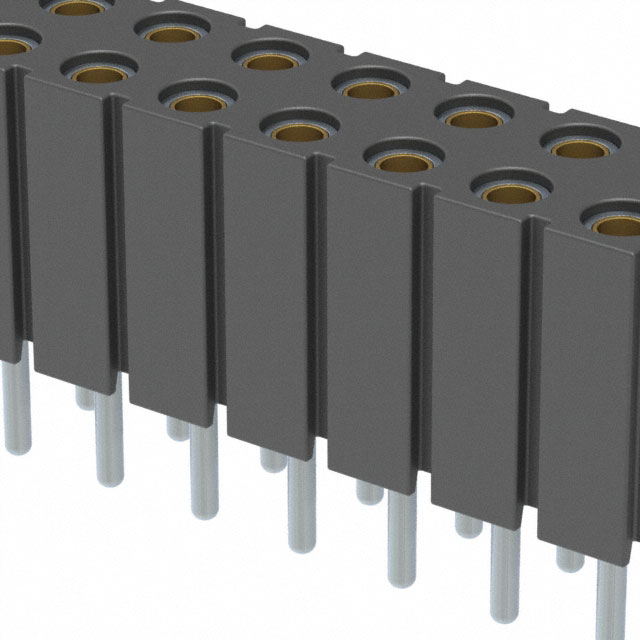

Mill-Max Manufacturing Corp. 803-41-060-10-004000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.5 A	0.272 in	6.91 mm	0.1 in	2.54 mm	0.118 in	3 mm	Black	Tin	Gold	All	0.25 µm	10 µin	Through Hole	Female Socket	Receptacle	Solder	Push-Pull	0.1 "	2.54 mm	-55 C	125 °C	UL94 V-0	2	60

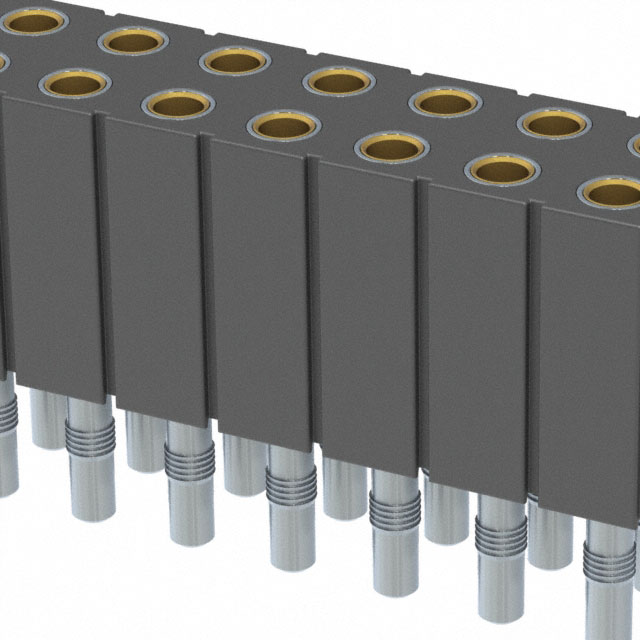

Mill-Max Manufacturing Corp. 803-41-044-62-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.5 A	0.276 in	7 mm	0.1 in	2.54 mm	0.143 in	3.63 mm	Black	Tin	Gold	All	0.25 µm	10 µin	Through Hole	Female Socket	Receptacle	Press-Fit Solder	Push-Pull	0.1 "	2.54 mm	-55 C	125 °C	UL94 V-0	2	44
Mill-Max Manufacturing Corp. 803-41-080-61-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.5 A	0.276 in	7 mm	0.1 in	2.54 mm	0.104 in	2.64 mm	Black	Tin	Gold	All	0.25 µm	10 µin	Through Hole	Female Socket	Receptacle	Press-Fit Solder	Push-Pull	0.1 "	2.54 mm	-55 C	125 °C	UL94 V-0	2	80

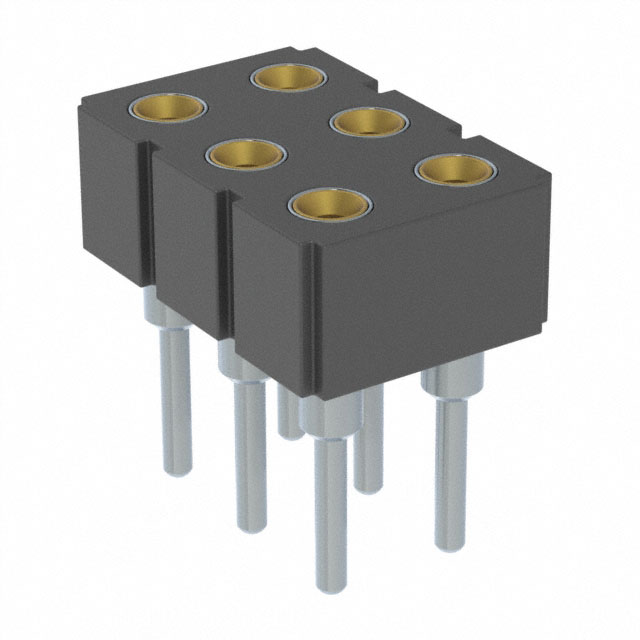

Mill-Max Manufacturing Corp. 803-41-006-10-002000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.5 A	0.165 in	4.2 mm	0.1 in	2.54 mm	0.125 in	3.18 mm	Black	Tin	Gold	All	0.25 µm	10 µin	Through Hole	Female Socket	Receptacle	Solder	Push-Pull	0.1 "	2.54 mm	-55 C	125 °C	UL94 V-0	2	6

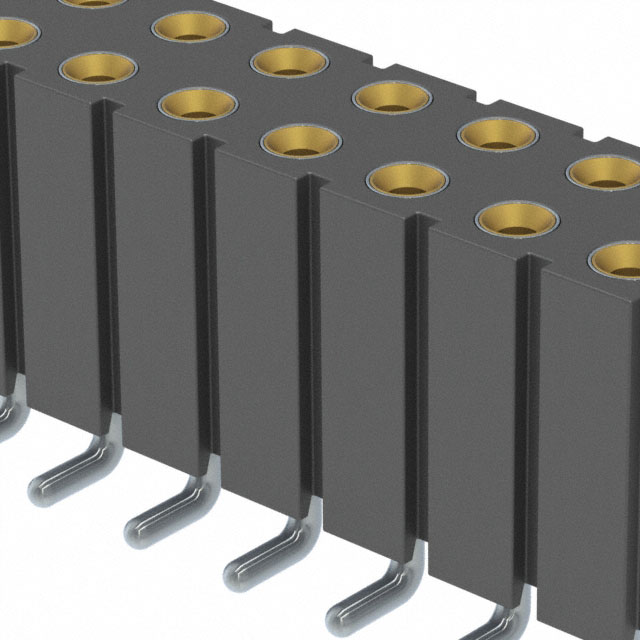

Mill-Max Manufacturing Corp. 803-41-016-30-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.5 A	0.338 in	8.59 mm	0.1 in	2.54 mm			Black	Tin	Gold	All	0.25 µm	10 µin	Surface Mount	Female Socket	Receptacle	Solder	Push-Pull	0.1 "	2.54 mm	-55 C	125 °C	UL94 V-0	2	16
Mill-Max Manufacturing Corp. 803-41-060-61-001000	Circular	200 Áin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.5 A	0.276 in	7 mm	0.1 in	2.54 mm	0.104 in	2.64 mm	Black	Tin	Gold	All	0.25 µm	10 µin	Through Hole	Female Socket	Receptacle	Press-Fit Solder	Push-Pull	0.1 "	2.54 mm	-55 C	125 °C	UL94 V-0	2	60
Mill-Max Manufacturing Corp. 803-41-030-30-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.5 A	0.338 in	8.59 mm	0.1 in	2.54 mm			Black	Tin	Gold	All	0.25 µm	10 µin	Surface Mount	Female Socket	Receptacle	Solder	Push-Pull	0.1 "	2.54 mm	-55 C	125 °C	UL94 V-0	2	30
Mill-Max Manufacturing Corp. 803-41-022-30-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.5 A	0.338 in	8.59 mm	0.1 in	2.54 mm			Black	Tin	Gold	All	0.25 µm	10 µin	Surface Mount	Female Socket	Receptacle	Solder	Push-Pull	0.1 "	2.54 mm	-55 C	125 °C	UL94 V-0	2	22
Mill-Max Manufacturing Corp. 803-41-032-61-001000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.5 A	0.276 in	7 mm	0.1 in	2.54 mm	0.104 in	2.64 mm	Black	Tin	Gold	All	0.25 µm	10 µin	Through Hole	Female Socket	Receptacle	Press-Fit Solder	Push-Pull	0.1 "	2.54 mm	-55 C	125 °C	UL94 V-0	2
Mill-Max Manufacturing Corp. 803-41-052-10-002000	Circular	200 µin	5.08 µm	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.5 A	0.165 in	4.2 mm	0.1 in	2.54 mm	0.125 in	3.18 mm	Black	Tin	Gold	All	0.25 µm	10 µin	Through Hole	Female Socket	Receptacle	Solder	Push-Pull	0.1 "	2.54 mm	-55 C	125 °C	UL94 V-0	2	52
