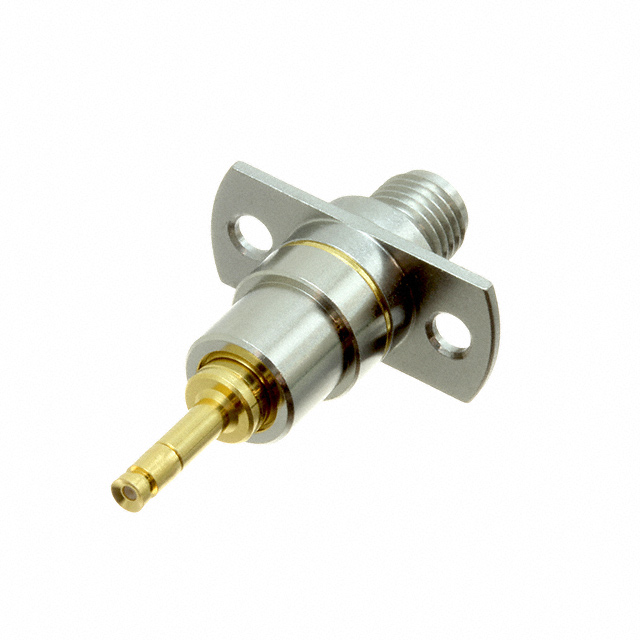

MS-180 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN ADAPT COAX PLUG TO SMA JACK
| Part | Dielectric Material | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Insertion Loss | Body Finish | Center Contact Material | Mounting Type | Convert To (Adapter End) | Impedance | Center Contact Plating | Fastening Type | Adapter Series | Frequency - Max [Max] | Mounting Feature | Style | Conversion Type | Convert From (Adapter End) | Convert From (Adapter End) | Adapter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Polytetrafluoroethylene (PTFE) | Beryllium Copper Stainless Steel | 85 °C | -40 C | 0.7 dB | Gold Passivated | Beryllium Copper | Panel Mount | SMA Jack Female Socket | 50 Ohms | Gold | Push-Pull Threaded | SMA to Coaxial Switch | 6000 MHz | Flange | Straight | Between Series | Coaxial Switch Male Pin | 2.24 mm | Plug to Jack |
 Hirose Electric Co Ltd | ||||||||||||||||||||
Hirose Electric Co Ltd |
