845-062 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 62POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Gender	Contact Finish	Termination	Pitch	Pitch	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row [custom]	Color	Contact Type	Number of Rows [custom]	Mounting Type	Card Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Read Out	Contact Material	Termination Rows	Number of Rows	Number of Positions/Bay/Row	Features

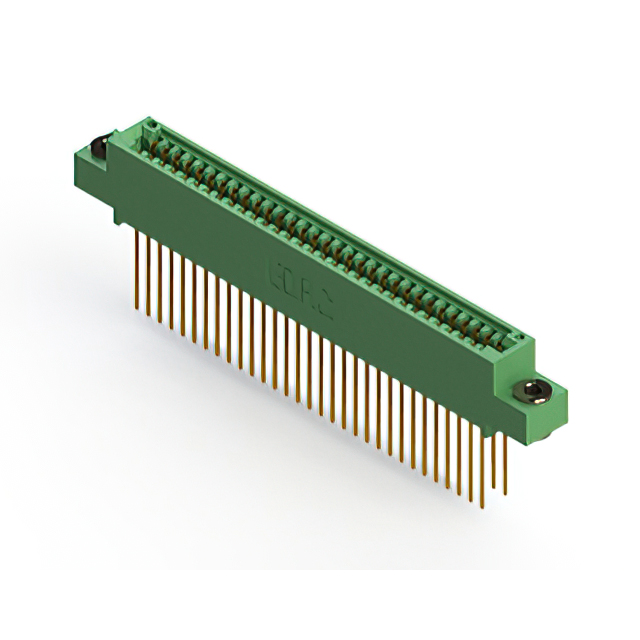

EDAC Inc. 845-062-542-503	Diallyl Phthalate (DAP)	2	Female	Gold	Wire Wrap	0.1 "	2.54 mm	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Green	Cantilever	2	Through Hole	Non Specified - Dual Edge	62	0.25 Ám	10 Áin	Dual	Copper Alloy

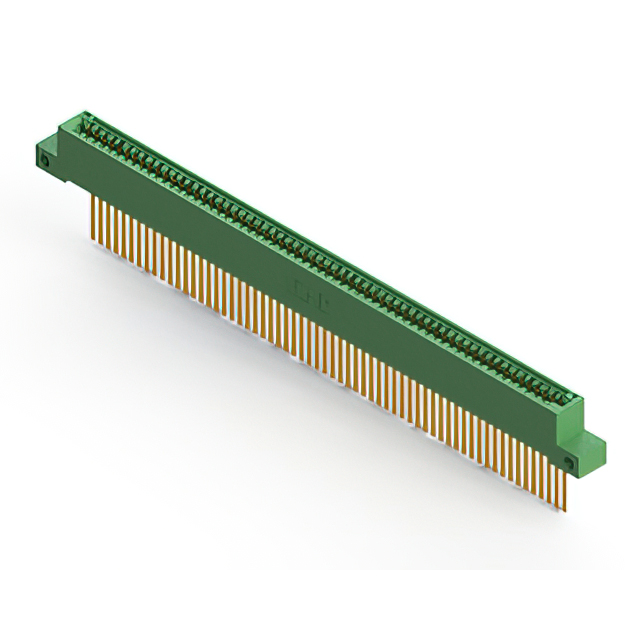

EDAC Inc. 845-062-544-112	Diallyl Phthalate (DAP)		Female	Gold	Wire Wrap	0.1 "	2.54 mm	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm		Green	Cantilever		Through Hole	Non Specified - Single Edge	62	0.25 Ám	10 Áin	Single	Copper Alloy	1	1	62
EDAC Inc. 845-062-560-803	Diallyl Phthalate (DAP)	2	Female	Gold	Solder	0.1 "	2.54 mm	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Green	Cantilever	2	Board Edge Straddle Mount	Non Specified - Dual Edge	62	0.25 Ám	10 Áin	Dual	Copper Alloy				Card Extender
EDAC Inc. 845-062-544-608	Diallyl Phthalate (DAP)		Female	Gold	Wire Wrap	0.1 "	2.54 mm	4-40 Threaded Insert Top Mount Opening			125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm		Green	Cantilever		Through Hole	Non Specified - Single Edge	62	0.25 Ám	10 Áin	Single	Copper Alloy	1	1	62

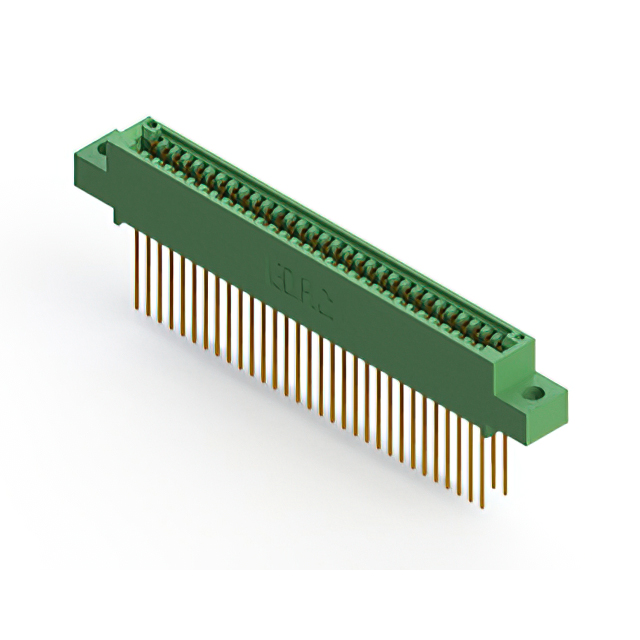

EDAC Inc. 845-062-542-504	Diallyl Phthalate (DAP)	2	Female	Gold	Wire Wrap	0.1 "	2.54 mm		0.156 "	3.96 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Green	Cantilever	2	Through Hole	Non Specified - Dual Edge	62	0.25 Ám	10 Áin	Dual	Copper Alloy

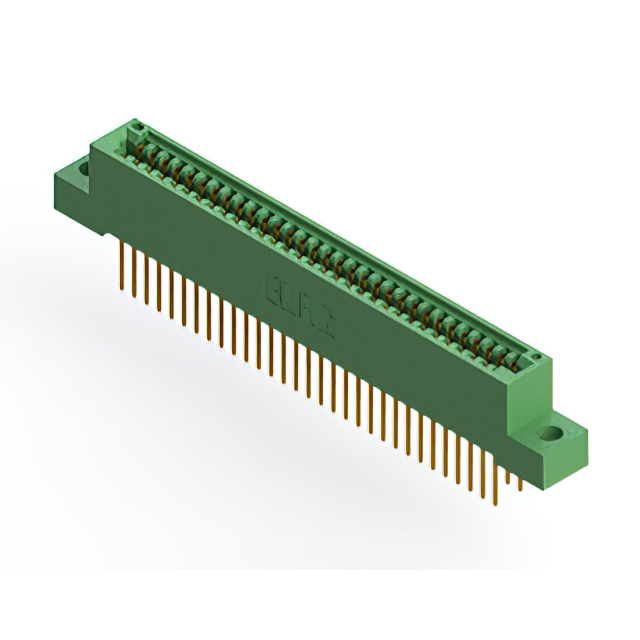

EDAC Inc. 845-062-523-204	Diallyl Phthalate (DAP)	2	Female	Gold	Solder	0.1 "	2.54 mm	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Green	Cantilever	2	Through Hole	Non Specified - Dual Edge	62	0.25 Ám	10 Áin	Dual	Copper Alloy
EDAC Inc. 845-062-555-812	Diallyl Phthalate (DAP)	2	Female	Gold	Solder	0.1 "	2.54 mm	Side Mount Opening Unthreaded	0.128 "	3.25 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Green	Cantilever	2	Board Edge Straddle Mount	Non Specified - Dual Edge	62	0.25 Ám	10 Áin	Dual	Copper Alloy				Card Extender

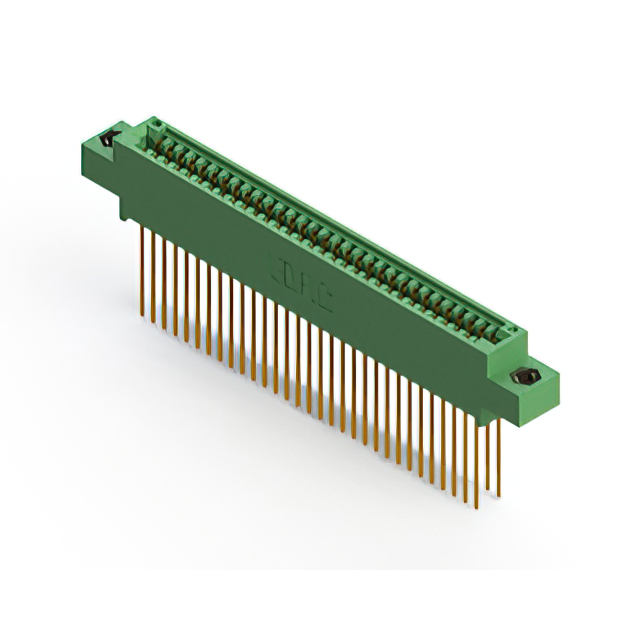

EDAC Inc. 845-062-541-807	Diallyl Phthalate (DAP)	2	Female	Gold	Wire Wrap	0.1 "	2.54 mm	M3 Threaded Insert Top Mount Opening			125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Green	Cantilever	2	Through Hole	Non Specified - Dual Edge	62	0.25 Ám	10 Áin	Dual	Copper Alloy
EDAC Inc. 845-062-555-803	Diallyl Phthalate (DAP)	2	Female	Gold	Solder	0.1 "	2.54 mm	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Green	Cantilever	2	Board Edge Straddle Mount	Non Specified - Dual Edge	62	0.25 Ám	10 Áin	Dual	Copper Alloy				Card Extender
EDAC Inc. 845-062-559-402	Diallyl Phthalate (DAP)		Female	Gold	Solder	0.1 "	2.54 mm		0.128 "	3.25 mm	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm		Green	Cantilever		Right Angle Through Hole	Non Specified - Single Edge	62	0.25 Ám	10 Áin	Single	Copper Alloy	1	1	62
