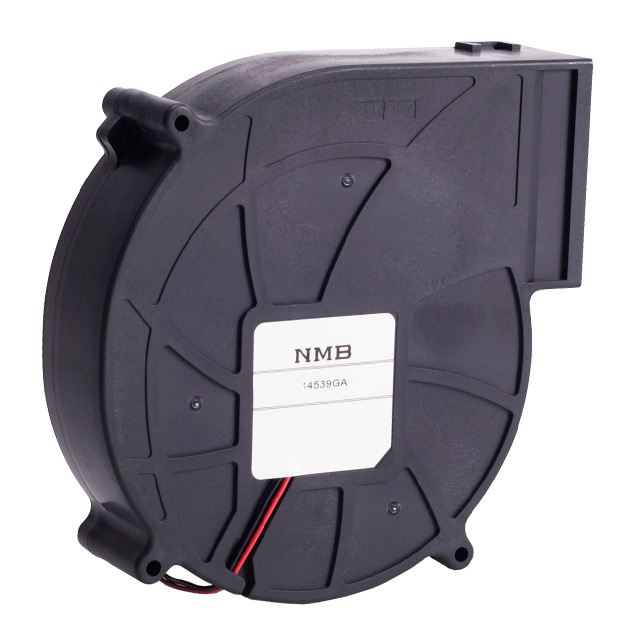

14539GA Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
FAN BLOWER, 145MM, 15W, 12 ROHS COMPLIANT: YES
| Part | Material - Frame | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Lifetime @ Temp. | Current Rating (Amps) | Noise | Air Flow | Air Flow | Termination | Bearing Type | Fan Type | Static Pressure | Static Pressure | Size / Dimension [x] | Size / Dimension | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | RPM | Width [x] | Voltage - Rated | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | Plastic | Plastic | 8 V | 13.2 VDC | 100000 Hrs | 1.25 A | 54.5 dB | 1.43 mł/min | 51.2 CFM | 2 Wire Leads | Ball | Blower | 1.55 in H2O | 385 Pa | 145 mm | Square/Rounded | 145 mm | -10 °C | 60 °C | 15 W | 2450 RPM | 39 mm | 12 VDC | Auto Restart |
