629-43W Series
Manufacturer: EDAC Inc.
Catalog

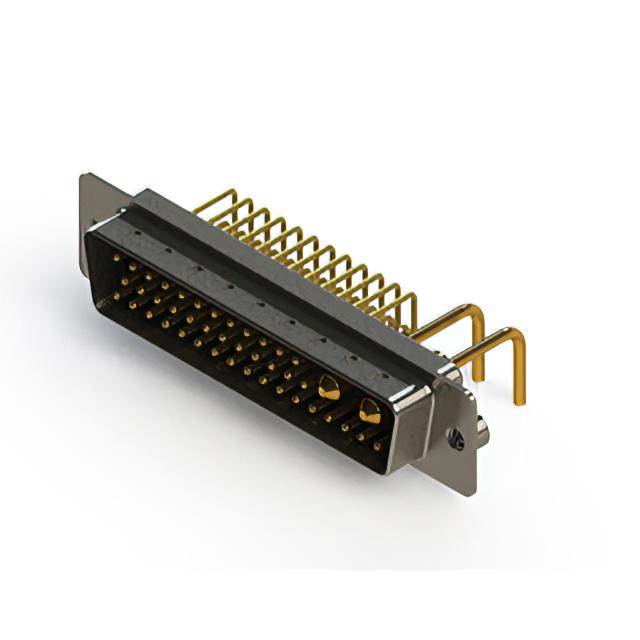

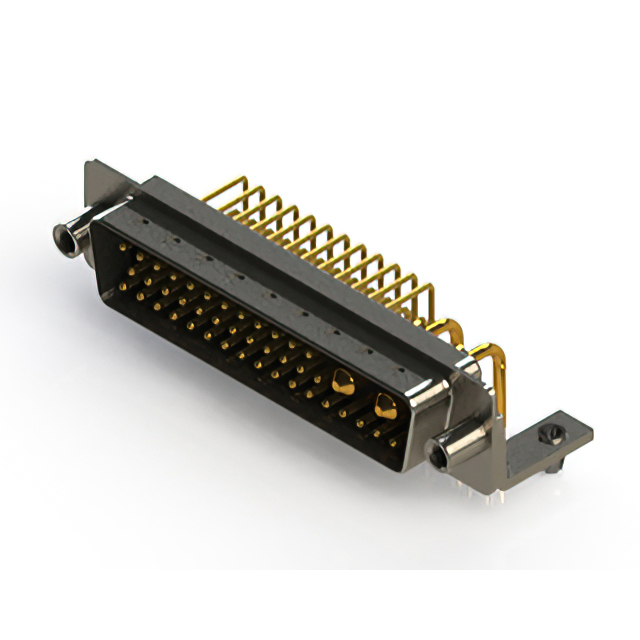

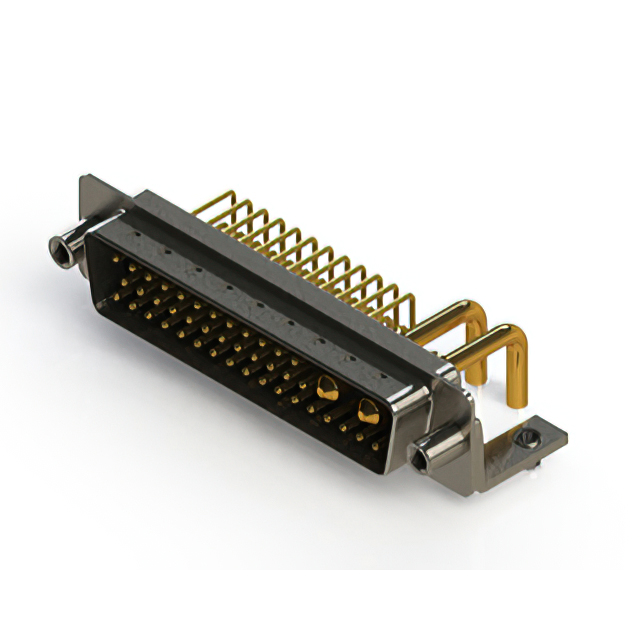

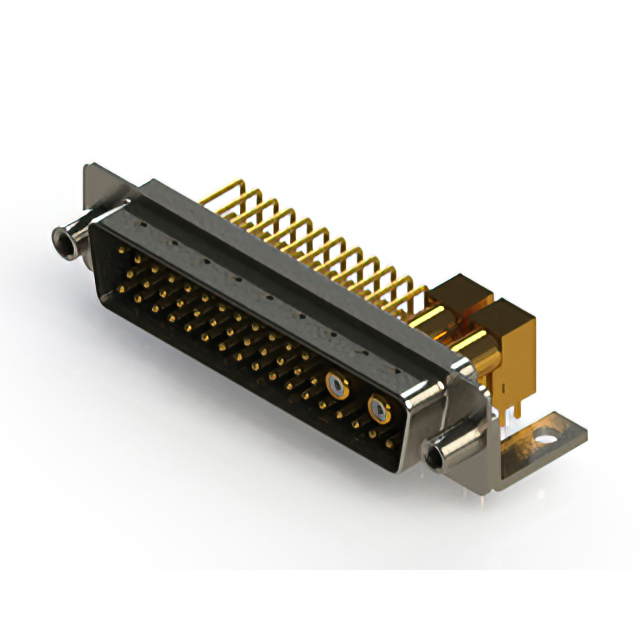

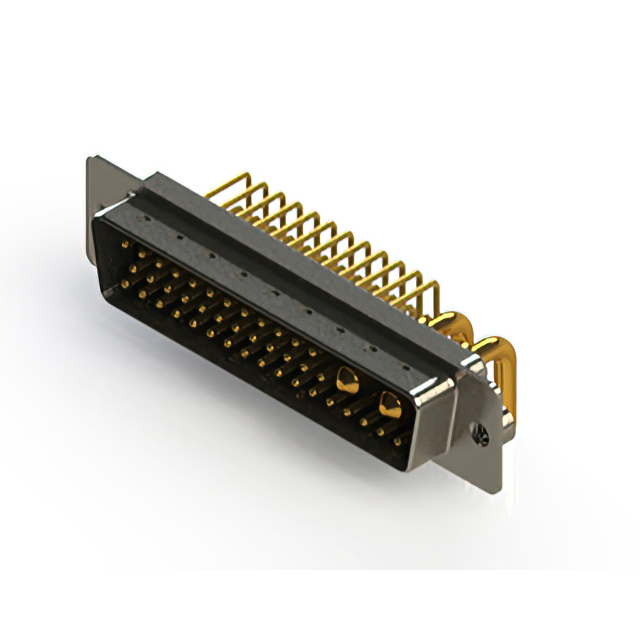

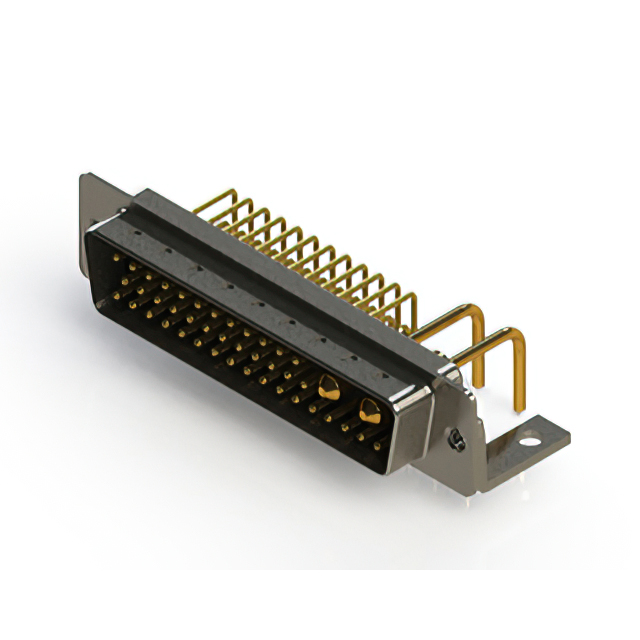

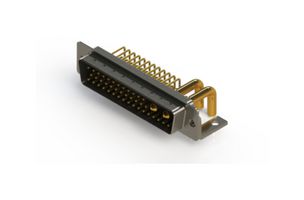

CONN D-SUB PLUG 43POS R/A SLDR
...
| Part | Connector Style | Material Flammability Rating | Termination | Flange Feature | Current Rating (Amps) | Voltage Rating | Mounting Type | Color | Contact Type | Number of Positions [custom] | Number of Positions [custom] | Contact Material | Contact Finish Thickness | Connector Type | Features | Number of Rows | Contact Finish | Shell Material, Finish | Shell Size, Connector Layout | Dielectric Material | Backset Spacing | Backset Spacing | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Combo D-Sub | UL94 V-0 | Solder | Board Side (M3) | 10A 5A | 125 VDC | Through Hole Right Angle | Black | Signal and Power | 2 | 41 | Copper Alloy | Flash | Male Pins Plug | Grounding Indents | 3 | Gold | Nickel Plated Steel | 5 (DD D) - 43W2 | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | ||||
 EDAC Inc. | Combo D-Sub | UL94 V-0 | Solder | Housing/Shell (4-40) | 125 VDC | Through Hole Right Angle | Black | Signal and Power | 2 | 41 | Copper Alloy | Male Pins Plug | 3 | Gold | Nickel Plated Steel | 5 (DD D) - 43W2 | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 5 A 40 A | 0.76 Ám | 30 Áin | ||||
 EDAC Inc. | Combo D-Sub | UL94 V-0 | Solder | Board Side (M3) | 125 VDC | Through Hole Right Angle | Black | Signal and Power | 2 | 41 | Copper Alloy | Male Pins Plug | Grounding Indents | 3 | Gold | Nickel Plated Steel | 5 (DD D) - 43W2 | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 5 A 20 A | 0.76 Ám | 30 Áin | |||
EDAC Inc. | Combo D-Sub | UL94 V-0 | Solder | Housing/Shell (M3) | 125 VDC | Through Hole Right Angle | Black | Signal and Power | 2 | 41 | Copper Alloy | Flash | Male Pins Plug | Grounding Indents Mounting Brackets | 3 | Gold | 5 (DD D) - 43W2 | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 5 A 40 A | |||||
 EDAC Inc. | Combo D-Sub | UL94 V-0 | Solder | Housing/Shell (4-40) | 10A 5A | 125 VDC | Through Hole Right Angle | Black | Signal and Power | 2 | 41 | Copper Alloy | Flash | Male Pins Plug | 3 | Gold | Nickel Plated Steel | 5 (DD D) - 43W2 | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | |||||
 EDAC Inc. | Combo D-Sub | UL94 V-0 | Solder | Housing/Shell (4-40) | 125 VDC | Through Hole Right Angle | Black | Signal and Power | 2 | 41 | Copper Alloy | Male Pins Plug | 3 | Gold | 5 (DD D) - 43W2 | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 5 A 20 A | 0.76 Ám | 30 Áin | |||||
 EDAC Inc. | Combo D-Sub | UL94 V-0 | Solder | 4-40 | 125 VDC | Through Hole Right Angle | Black | Coax Signal | 41 | Copper Alloy | Flash | Male Pins Plug | Board Lock Grounding Indents | 3 | Gold | Nickel Plated Steel | 5 (DD D) - 43W2 | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 2 | |||||
 EDAC Inc. | Combo D-Sub | UL94 V-0 | Solder | M3 | 10A 5A | 125 VDC | Through Hole Right Angle | Black | Signal and Power | 2 | 41 | Copper Alloy | Male Pins Plug | Board Lock Grounding Indents Mounting Brackets | 3 | Gold | 5 (DD D) - 43W2 | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 0.76 Ám | 30 Áin | ||||
 EDAC Inc. | Combo D-Sub | UL94 V-0 | Solder | Housing/Shell (M3) | 10A 5A | 125 VDC | Through Hole Right Angle | Black | Signal and Power | 2 | 41 | Copper Alloy | Male Pins Plug | Grounding Indents Mounting Brackets | 3 | Gold | 5 (DD D) - 43W2 | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 0.76 Ám | 30 Áin | ||||
 EDAC Inc. | Combo D-Sub | UL94 V-0 | Solder | Housing/Shell (M3) | 125 VDC | Through Hole Right Angle | Black | Signal and Power | 2 | 41 | Copper Alloy | Flash | Male Pins Plug | Grounding Indents Mounting Brackets | 3 | Gold | Nickel Plated Steel | 5 (DD D) - 43W2 | Polyester Thermoplastic | 9.4 mm | 0.37 in | -55 °C | 125 °C | 5 A 30 A |
