857-046 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 46POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Contact Material	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Read Out	Mounting Type	Termination	Flange Feature	Contact Finish	Color	Number of Rows [custom]	Gender	Number of Positions/Bay/Row	Pitch	Pitch	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 857-046-459-207	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Non Specified - Dual Edge	Single	Right Angle Through Hole	Solder	Flush Mount M3 Threaded Insert Top Opening	Tin	Black	2	Female	23	3.96 mm	0.156 in	46
EDAC Inc. 857-046-442-202	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Non Specified - Dual Edge	Dual	Through Hole	Wire Wrap	Flush Mount Top Opening Unthreaded	Tin	Black	2	Female	23	3.96 mm	0.156 in	46	3.25 mm	0.128 "
EDAC Inc. 857-046-420-208	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Non Specified - Dual Edge	Dual	Through Hole	Solder	4-40 Flush Mount Threaded Insert Top Opening	Tin	Black	2	Female	23	3.96 mm	0.156 in	46

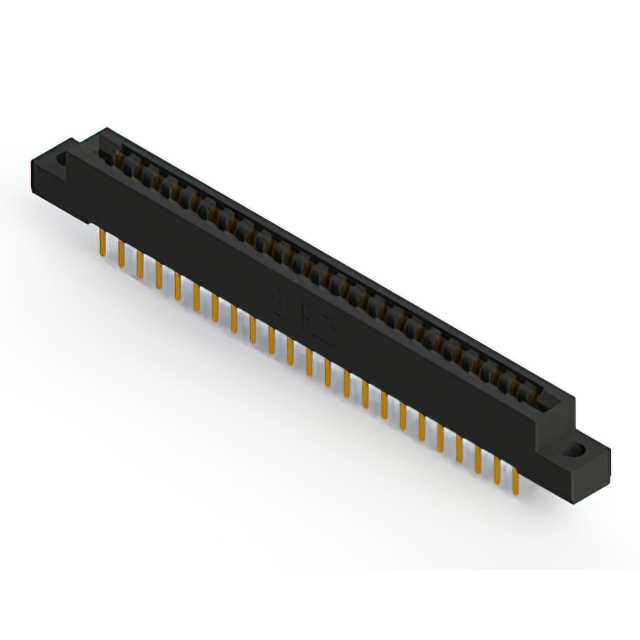

EDAC Inc. 857-046-520-202	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Non Specified - Dual Edge	Dual	Through Hole	Solder	Flush Mount Top Opening Unthreaded	Gold	Black	2	Female	23	3.96 mm	0.156 in	46	3.25 mm	0.128 "	0.25 Ám	10 Áin
EDAC Inc. 857-046-422-212	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Non Specified - Dual Edge	Dual	Through Hole	Solder	Side Mount Opening Unthreaded	Tin	Black	2	Female	23	3.96 mm	0.156 in	46	3.25 mm	0.128 "
EDAC Inc. 857-046-440-208	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Non Specified - Dual Edge	Dual	Through Hole	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	Tin	Black	2	Female	23	3.96 mm	0.156 in	46
EDAC Inc. 857-046-522-202	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Non Specified - Dual Edge	Dual	Through Hole	Solder	Flush Mount Top Opening Unthreaded	Gold	Black	2	Female	23	3.96 mm	0.156 in	46	3.25 mm	0.128 "	0.25 Ám	10 Áin
EDAC Inc. 857-046-440-203	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Non Specified - Dual Edge	Dual	Through Hole	Wire Wrap	Floating Bobbin Flush Mount	Tin	Black	2	Female	23	3.96 mm	0.156 in	46	2.95 mm	0.116 "

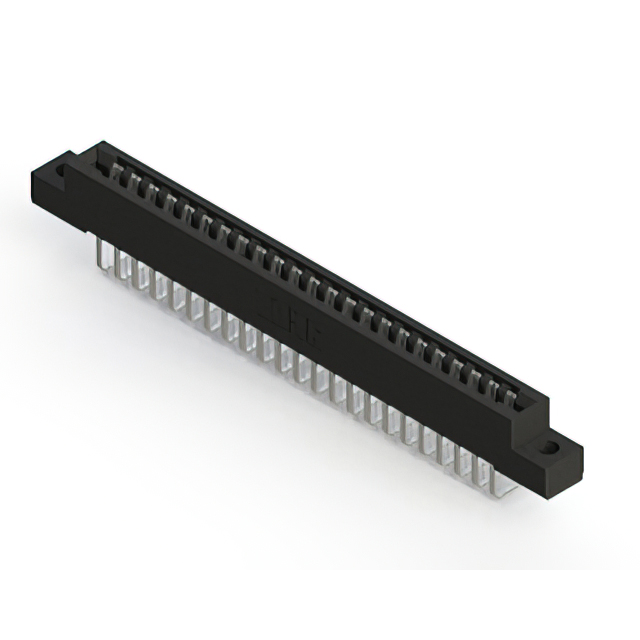

EDAC Inc. 857-046-458-202	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Non Specified - Dual Edge	Single	Right Angle Through Hole	Solder	Flush Mount Top Opening Unthreaded	Tin	Black	2	Female	23	3.96 mm	0.156 in	46	3.25 mm	0.128 "
EDAC Inc. 857-046-442-204	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	Non Specified - Dual Edge	Dual	Through Hole	Wire Wrap	Flush Mount Top Opening Unthreaded	Tin	Black	2	Female	23	3.96 mm	0.156 in	46	3.96 mm	0.156 "
