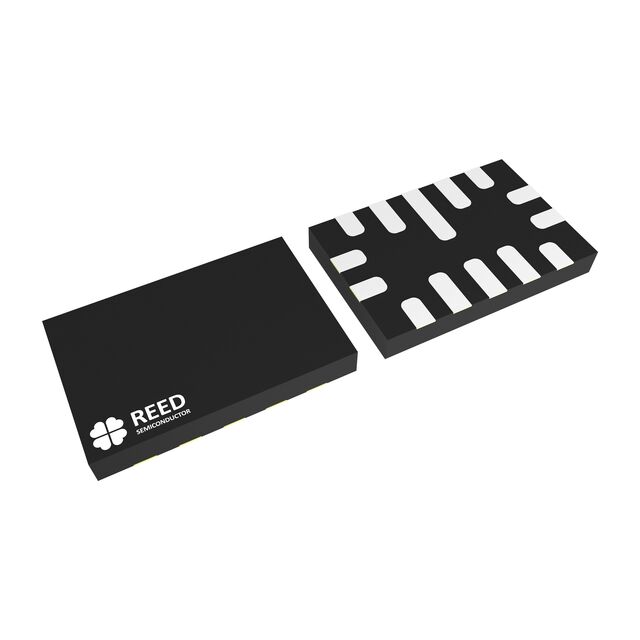

RS53317 Series
Manufacturer: Reed Semiconductor Corp.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
IC REG BUCK ADJ 6A 14QFN
| Part | Frequency - Switching | Frequency - Switching (Typical) | Frequency - Switching (Max) | Frequency - Switching (Min) | Function | Voltage - Output (Max) | Voltage - Input (Min) | Output Type | Voltage - Input (Max) | Output Configuration | Topology | Voltage - Output (Min/Fixed) | Synchronous Rectifier | Package / Case | Mounting Type | Package Name | Package Length | Package Width | Current - Output | Operating Temperature (Max) | Operating Temperature (Min) | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Reed Semiconductor Corp. | 600 kHz 800 kHz | 600 kHz | 2 MHz | 1.1 MHz | Step-Down | 6 V | 2.85 V | Adjustable | 16 V | Positive | Buck | 0.9 V | Yes | 14-QFN | Surface Mount | 14-QFN | 2 mm | 3 mm | 6 A | 125 °C | -40 °C | 1 |
Reed Semiconductor Corp. | 600 kHz 800 kHz | 600 kHz | 2 MHz | 1.1 MHz | Step-Down | 6 V | 2.85 V | Adjustable | 16 V | Positive | Buck | 0.6 V | Yes | 14-QFN | Surface Mount | 14-QFN | 2 mm | 3 mm | 6 A | 125 °C | -40 °C | 1 |
