AZ822 Series

Catalog

RELAY GENERAL PURPOSE DPDT 2A 6V

Part	Coil Resistance	Contact Form	Operate Time	Must Operate Voltage	Must Release Voltage	Contact Rating (Current)	Approval Agency	Switching Voltage [Max]	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Load - Max Switching	Mounting Type	Release Time	Coil Current	Seal Rating	Contact Material	Relay Type	Termination Style	Coil Voltage
American Zettler AZ8222-2C-6DME	130 Ohms	DPDT (2 Form C)	7 ms	4.5 VDC	0.6 VDC	2 A	cUR UL	120 VDC 240 VAC	Non Latching	70 °C	-40 C	240 W 480 VA	Through Hole	4 ms	46.2 mA	Sealed - Fully	Gold (Au) Silver Nickel (AgNi)	General Purpose	PC Pin

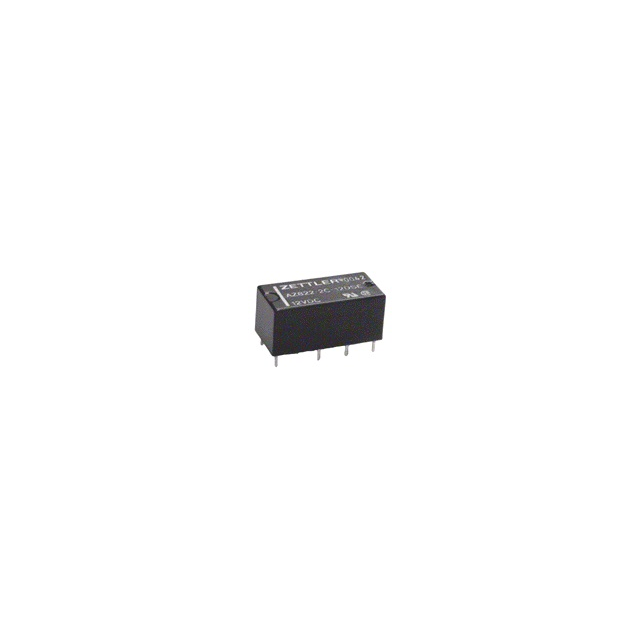

American Zettler AZ822-2C-12DSE	960 Ohms	DPDT (2 Form C)	5 ms	8.4 VDC	0.6 VDC	2 A	cUR UL	220 VDC 250 VAC	Non Latching	90 °C	-55 C	60 W 125 VA 440 W 500 VA	Through Hole	2 ms		Sealed - Fully	Gold (Au) Silver Palladium (AgPd)	General Purpose	PC Pin	12 VDC
American Zettler AZ8222-2C-15DME	625 Ohms	DPDT (2 Form C)	7 ms	11.3 VDC	1.5 VDC	2 A	cUR UL	120 VDC 240 VAC	Non Latching	70 °C	-40 C	240 W 480 VA	Through Hole	4 ms	24 mA	Sealed - Fully	Gold (Au) Silver Nickel (AgNi)	General Purpose	PC Pin	15 VDC
American Zettler AZ8222-2C-9DME	280 Ohms	DPDT (2 Form C)	7 ms	6.8 VDC	0.9 VDC	2 A	cUR UL	120 VDC 240 VAC	Non Latching	70 °C	-40 C	240 W 480 VA	Through Hole	4 ms	32.1 mA	Sealed - Fully	Gold (Au) Silver Nickel (AgNi)	General Purpose	PC Pin	9 VDC
American Zettler AZ8222-2C-48DME	4 kOhms	DPDT (2 Form C)	7 ms	36 VDC	4.8 VDC	2 A	cUR UL	120 VDC 240 VAC	Non Latching	70 °C	-40 C	240 W 480 VA	Through Hole	4 ms	12 mA	Sealed - Fully	Gold (Au) Silver Nickel (AgNi)	General Purpose	PC Pin	48 VDC

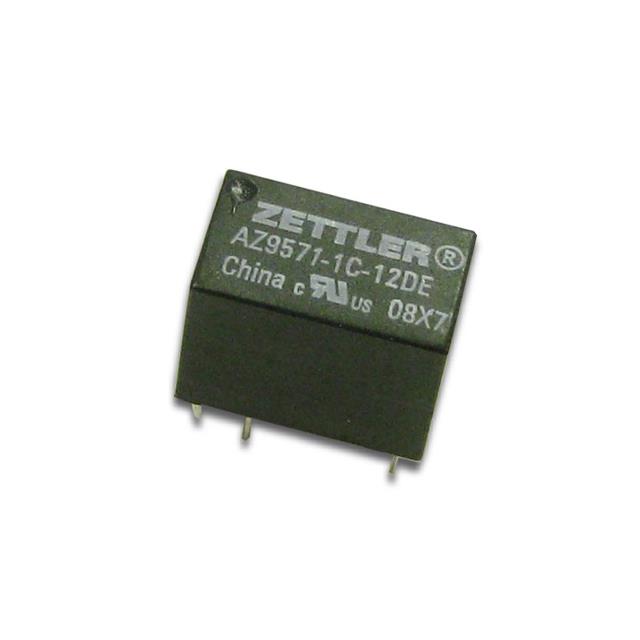

American Zettler AZ8222-2C-9DSE	405 Ohms	DPDT (2 Form C)	7 ms	6.8 VDC	0.9 VDC	2 A	cUR UL	120 VDC 240 VAC	Non Latching	80 °C	-40 C	240 W 480 VA	Through Hole	4 ms	22.2 mA	Sealed - Fully	Gold (Au) Silver Nickel (AgNi)	General Purpose	PC Pin	9 VDC
American Zettler AZ822-2C-24DE	2.88 kOhms	DPDT (2 Form C)	5 ms	16.8 VDC	1.2 VDC	2 A	cUR UL	220 VDC 250 VAC	Non Latching	90 °C	-55 C	60 W 125 VA 440 W 500 VA	Through Hole	2 ms	8.3 mA	Sealed - Fully	Gold (Au) Silver Palladium (AgPd)	General Purpose	PC Pin	24 VDC
American Zettler AZ8222-2C-9DSSE		DPDT (2 Form C)	7 ms	7.2 VDC	0.9 VDC	2 A	cUR UL	120 VDC 240 VAC	Non Latching	85 °C	-40 C	240 W 480 VA	Through Hole	4 ms	16.7 mA	Sealed - Fully	Gold (Au) Silver Nickel (AgNi)	General Purpose	PC Pin	9 VDC

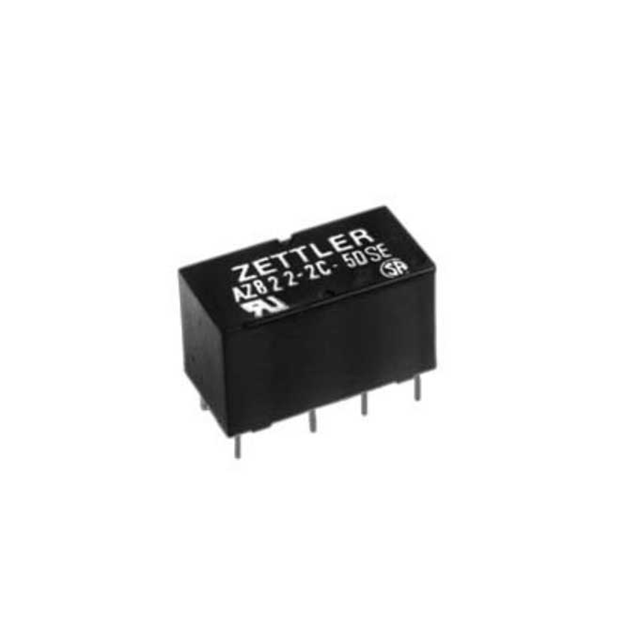

American Zettler AZ822-2C-12DE	720 Ohms	DPDT (2 Form C)	5 ms	8.4 VDC	0.6 VDC	2 A	cUR UL	220 VDC 250 VAC	Non Latching	90 °C	-55 C	60 W 125 VA 440 W 500 VA	Through Hole	2 ms	16.7 mA	Sealed - Fully	Gold (Au) Silver Palladium (AgPd)	General Purpose	PC Pin	12 VDC
American Zettler AZ822-2C-3DSE	60 Ohms	DPDT (2 Form C)	5 ms	2.1 VDC	0.15 VDC	2 A	cUR UL	220 VDC 250 VAC	Non Latching	90 °C	-55 C	60 W 125 VA 440 W 500 VA	Through Hole	2 ms	50 mA	Sealed - Fully	Gold (Au) Silver Palladium (AgPd)	General Purpose	PC Pin
