BG1002 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

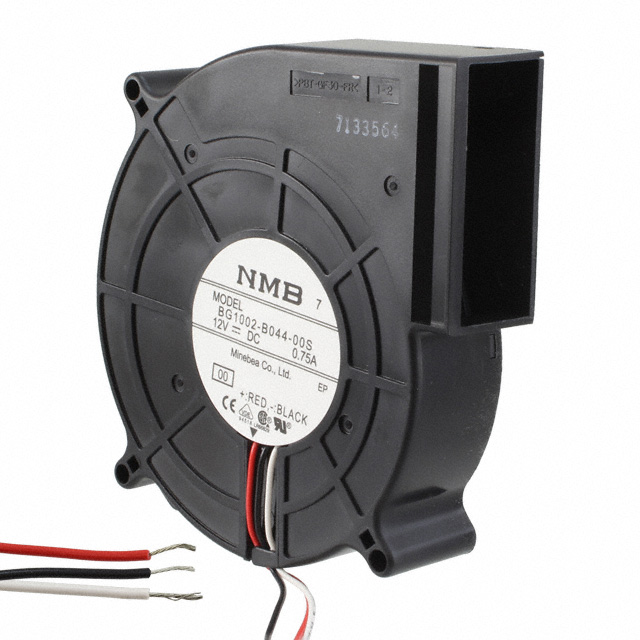

FAN BLOWER 101X25MM 12VDC WIRE
| Part | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Current Rating (Amps) | Material - Frame | Air Flow | Air Flow | Power (Watts) | Weight [custom] | Weight [custom] | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Bearing Type | Size / Dimension | Size / Dimension [x] | Size / Dimension [y] | Noise | Fan Type | Termination | Voltage - Rated | Static Pressure | Static Pressure | Width [y] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 13.8 VDC | 6 VDC | Plastic | 0.56 A | Plastic | 0.602 m³/min | 21.5 CFM | 6.7 W | 0.375 lb | 170.1 g | 3300 RPM | -10 °C | 60 °C | CE CSA UL | Ball | Square/Rounded | 101 mm | 107 mm | 47 dB | Blower | 2 Wire Leads | 12 VDC | 190 Pa | 0.763 in H2O | 25 mm | |
 NMB TECHNOLOGIES | 13.8 VDC | 6 VDC | Plastic | 0.56 A | Plastic | 0.602 m³/min | 21.5 CFM | 6.7 W | 0.375 lb | 170.1 g | 3300 RPM | -10 °C | 60 °C | CE CSA UL | Ball | Square/Rounded | 101 mm | 107 mm | 47 dB | Blower | 3 Wire Leads | 12 VDC | 190 Pa | 0.763 in H2O | 25 mm | Speed Sensor (Tach) |
NMB TECHNOLOGIES | 13.8 VDC | 6 VDC | Plastic | 0.56 A | Plastic | 0.602 m³/min | 21.5 CFM | 6.7 W | 0.375 lb | 170.1 g | 3300 RPM | -10 °C | 60 °C | CE CSA UL | Ball | Square/Rounded | 101 mm | 107 mm | 47 dB | Blower | 3 Wire Leads | 12 VDC | 190 Pa | 0.763 in H2O | 25 mm | Locked Rotor Sensor |
