TPS84210 Series

3-V to 6-V Input, 2-A Synchronous Buck, Integrated Power Solution

Catalog

3-V to 6-V Input, 2-A Synchronous Buck, Integrated Power Solution

Part	Synchronous Rectifier	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Mounting Type	Voltage - Output (Max) [Max]	Function	Voltage - Input (Max) [Max]	Package / Case	Supplier Device Package	Voltage - Output (Min/Fixed)	Voltage - Input (Min) [Min]	Frequency - Switching [Max]	Frequency - Switching [Min]	Topology	Number of Outputs	Current - Output	Output Type

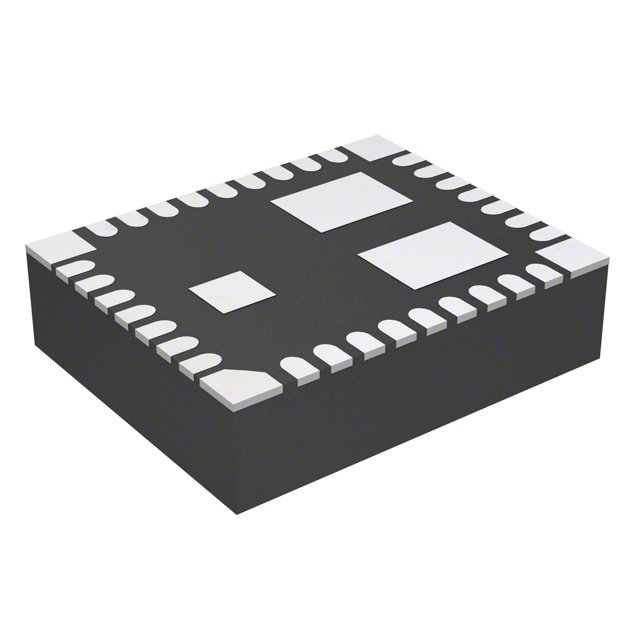

Texas Instruments TPS84210RKGT		85 °C	-40 °C	Positive	Surface Mount	3.6 V	Step-Down	6 V	39-BQFN Exposed Pad	39-B1QFN (11x9)	0.8 V	2.95 V	2 MHz	500 kHz	Buck	1	2 A	Adjustable

Catalog

3-V to 6-V Input, 2-A Synchronous Buck, Integrated Power Solution

Key Features

• Complete Integrated Power Solution AllowsSmall Footprint, Low-Profile DesignEfficiencies Up To 96%Wide-Output Voltage Adjust0.8 V to 3.6 V, with ±1% Reference AccuracyAdjustable Switching Frequency(500 kHz to 2 MHz)Synchronizes to an External ClockAdjustable Slow-StartOutput Voltage Sequencing / TrackingPower Good OutputProgrammable Undervoltage Lockout (UVLO)Output Overcurrent ProtectionOver Temperature ProtectionOperating Temperature Range: –40°C to 85°CEnhanced Thermal Performance: 12°C/WMeets EN55022 Class B EmissionsComplete Integrated Power Solution AllowsSmall Footprint, Low-Profile DesignEfficiencies Up To 96%Wide-Output Voltage Adjust0.8 V to 3.6 V, with ±1% Reference AccuracyAdjustable Switching Frequency(500 kHz to 2 MHz)Synchronizes to an External ClockAdjustable Slow-StartOutput Voltage Sequencing / TrackingPower Good OutputProgrammable Undervoltage Lockout (UVLO)Output Overcurrent ProtectionOver Temperature ProtectionOperating Temperature Range: –40°C to 85°CEnhanced Thermal Performance: 12°C/WMeets EN55022 Class B Emissions

Description
