A3B-16PA Series

Catalog

CONN HEADER

Part	Contact Finish - Mating	Number of Positions	Fastening Type	Style	Contact Length - Post	Contact Length - Post	Insulation Material	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Connector Type	Number of Rows [custom]	Shrouding	Contact Length - Mating	Contact Length - Mating	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Positions Loaded	Contact Material	Contact Type	Current Rating (Amps)	Insulation Color	Mounting Type	Contact Finish - Post	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Overall Contact Length	Overall Contact Length

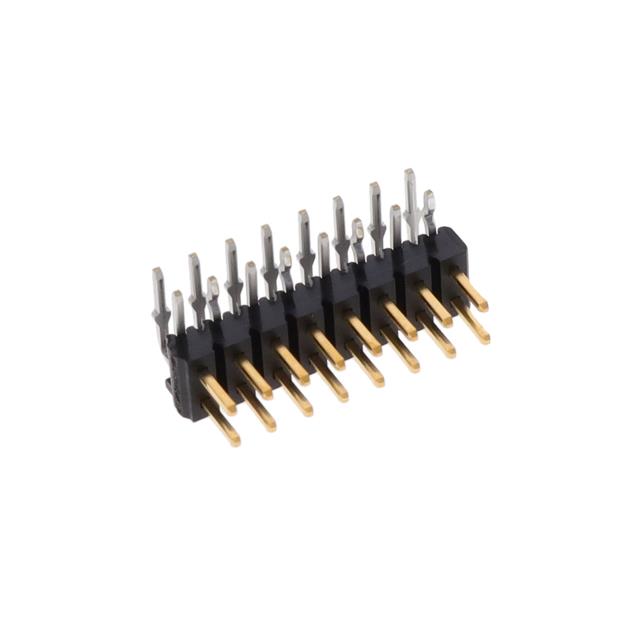

Hirose Electric Co Ltd A3B-16PA-2DS(51)	Gold	16	Push-Pull	Board to Board Cable	2.6 mm	0.102 in	Nylon Polyamide (PA)	4 mm	0.157 in	0.079 "	2 mm	UL94 V-0	Header	2	Unshrouded	3.5 mm	0.138 in	2 mm	0.079 in	200 V	Kinked Pin Solder	-55 C	85 °C	Square	All	Brass	Male Pin	2 A	Black	Right Angle Through Hole
Hirose Electric Co Ltd A3B-16PA-2DS(71)	Gold	16	Push-Pull	Board to Board Cable	2.6 mm	0.102 in	Nylon Polyamide (PA)	4 mm	0.157 in	0.079 "	2 mm	UL94 V-0	Header	2	Unshrouded	3.5 mm	0.138 in	2 mm	0.079 in	200 VAC	Kinked Pin Solder	-55 C	85 °C	Square	All	Brass	Male Pin		Black	Right Angle Through Hole	Tin	Flash
Hirose Electric Co Ltd A3B-16PA-2DSA(51)	Gold	16	Push-Pull	Board to Board Cable	2.6 mm	0.102 in	Nylon Polyamide (PA)			0.079 "	2 mm	UL94 V-0	Header	2	Unshrouded	3.5 mm	0.138 in	2 mm	0.079 in	200 VAC	Solder	-55 C	85 °C	Square	All	Brass	Male Pin		Black	Through Hole			1.8 mm	0.071 in	7.9 mm	0.311 in
