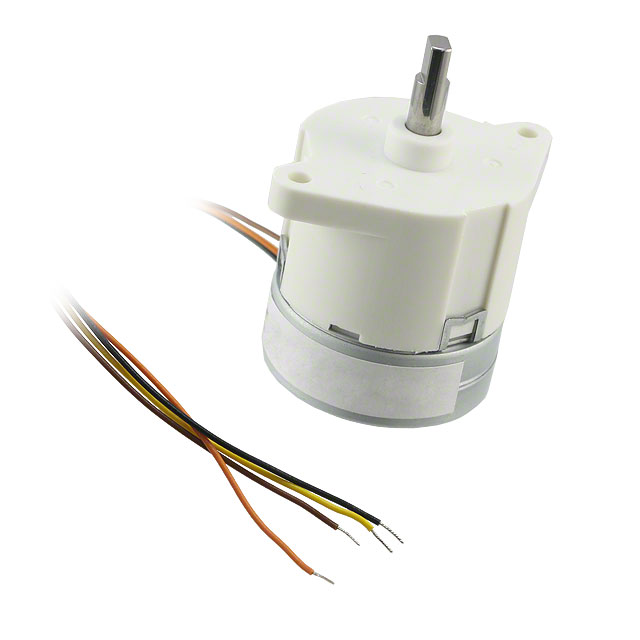

PG35S Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K
MOTOR /BIPOLOR GEAR RATIO 1/35.4 SIZE MM 35X38.5 RATE CURRENT (A) 0.50 RESISTANCE 8.00
| Part | Step Angle | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Steps per Revolution | Features | Type | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Coil Type | Voltage - Rated | Current Rating (Amps) | Coil Resistance | Termination Style | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | 0.212 ° | 42 mm | 1.65 in | 1698 | Double Flatted Shaft | Permanent Magnet Gear Motor | 0.197 in | 5 mm | Bipolar | 24 VDC | 0.25 A | 28 Ohms | Wire Leads | 18 mm | 0.709 in | 1.378 in | 35 mm | 700 mNm | 99.1 oz-in |
