FDMQ8403 Series

N-Channel PowerTrench® MOSFET GreenBridge™ Series of High-Efficiency Bridge Rectifiers 100V, 6A, 110mΩ

Catalog

N-Channel PowerTrench® MOSFET GreenBridge™ Series of High-Efficiency Bridge Rectifiers 100V, 6A, 110mΩ

Part	Mounting Type	Gate Charge (Qg) (Max) @ Vgs	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Drain to Source Voltage (Vdss)	Package / Case	Configuration	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Vgs(th) (Max) @ Id	Power - Max [Max]	Technology

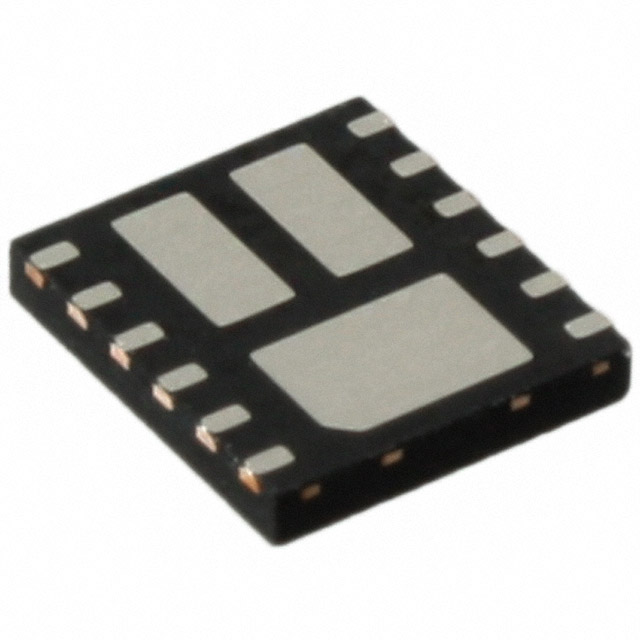

ON Semiconductor FDMQ8403	Surface Mount	5 nC	3.1 A	215 pF	-55 °C	150 °C	100 V	12-WDFN Exposed Pad	4 N-Channel	5	4.5	12-MLP	4 V	1.9 W	MOSFET (Metal Oxide)

N-Channel PowerTrench® MOSFET GreenBridge™ Series of High-Efficiency Bridge Rectifiers 100V, 6A, 110mΩ

• Max rDS(on)= 110 mΩ at VGS= 10 V, ID= 3 A

• Max rDS(on)= 175 mΩ at VGS= 6 V, ID= 2.4 A

• Substantial efficiency benefit in PD solutions

• RoHS Compliant

This quad MOSFET solution provides ten-fold improvement in power dissipation over diode bridge.
