HIF6A Series

Catalog

CONN HEADER R/A 60POS 1.27MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Shape	Mounting Type	Voltage Rating	Contact Material	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Pitch - Mating	Pitch - Mating	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Fastening Type	Number of Positions	Insulation Color	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Insulation Material	Current Rating (Amps)	Material Flammability Rating	Contact Type	Contact Finish - Post	Shrouding	Number of Positions Loaded	Applications	Features	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Mated Stacking Heights	Style

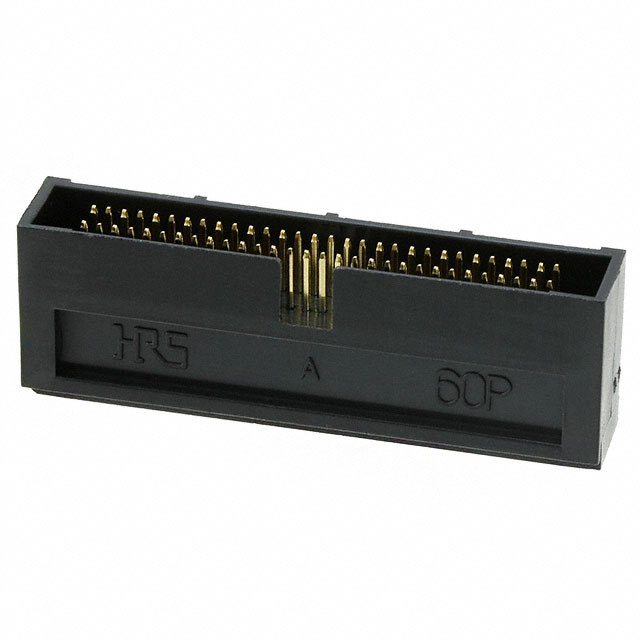

Hirose Electric Co Ltd HIF6A-60PA-1.27DS(71)	78.7 µin	2 µm	Square	Right Angle Through Hole	300 VDC	Brass	0.335 "	8.51 mm	-55 C	85 °C	Header	1.27 mm	0.05 in	Solder	8 µin	0.203 µm	Gold	Push-Pull	60	Black	2	0.1 in	2.54 mm	0.205 in	5.21 mm	Polybutylene Terephthalate (PBT)	0.5 A	UL94 V-0	Male Pin	Tin	Shrouded - 4 Wall	All

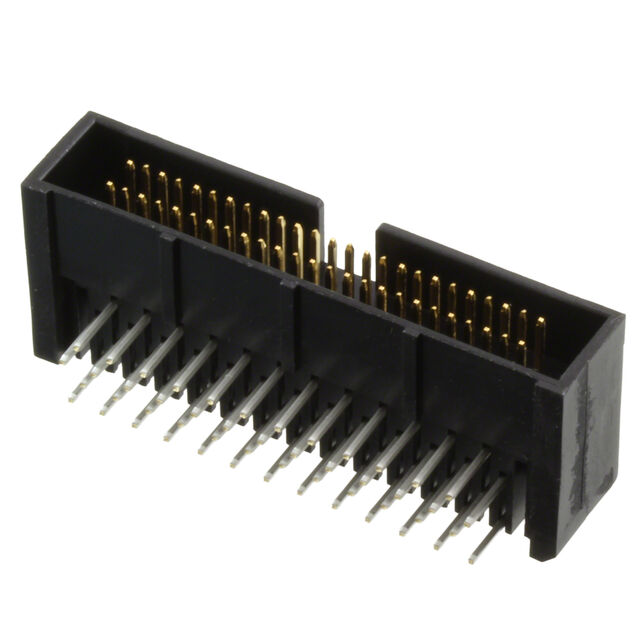

Hirose Electric Co Ltd HIF6A-50PA-1.27DS(71)	78.7 µin	2 µm	Square	Right Angle Through Hole	300 VDC	Brass	0.335 "	8.51 mm	-55 C	85 °C	Header	1.27 mm	0.05 in	Solder	8 µin	0.203 µm	Gold	Push-Pull	50	Black	2	0.1 in	2.54 mm	0.205 in	5.21 mm	Polybutylene Terephthalate (PBT)	0.5 A	UL94 V-0	Male Pin	Tin	Shrouded - 4 Wall	All

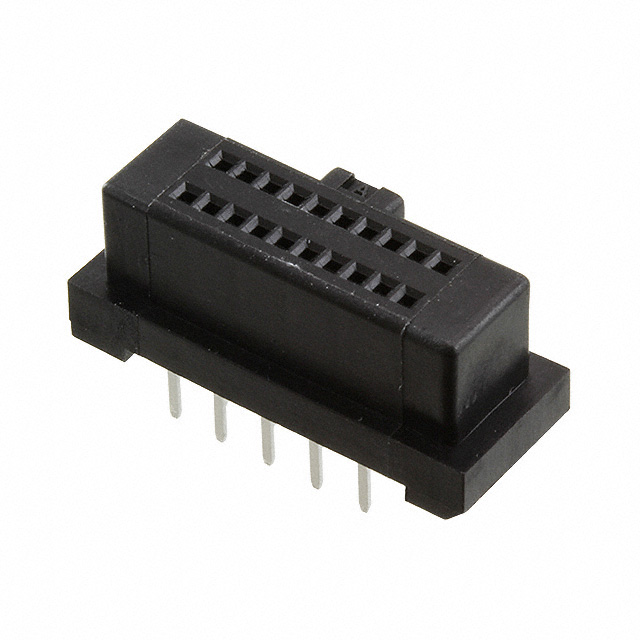

Hirose Electric Co Ltd HIF6A-20DA-1.27DSA(71)	78.7 µin	2 µm	Square	Through Hole	125 VAC	Copper Alloy			-55 C	85 °C	Receptacle	1.27 mm	0.05 in	Solder	8 µin	0.203 µm	Gold	Push-Pull	20	Black	2	0.1 in	2.54 mm			Polybutylene Terephthalate (PBT)	0.5 A	UL94 V-0	Female Socket	Tin		All	General Purpose	Polarizing Key	8.8 mm	0.346 in	0.118 in	3 mm	14.8 mm	Board to Board Cable
Hirose Electric Co Ltd HIF6A-50DA-1.27DSA	78.7 µin	2 µm	Square	Through Hole	125 VAC	Copper Alloy			-55 C	85 °C	Receptacle	1.27 mm	0.05 in	Solder	8 µin	0.203 µm	Gold	Push-Pull	50	Black	2	0.1 in	2.54 mm			Polybutylene Terephthalate (PBT)	0.5 A	UL94 V-0	Female Socket	Tin		All	General Purpose	Polarizing Key	8.8 mm	0.346 in	0.118 in	3 mm	14.8 mm	Board to Board Cable

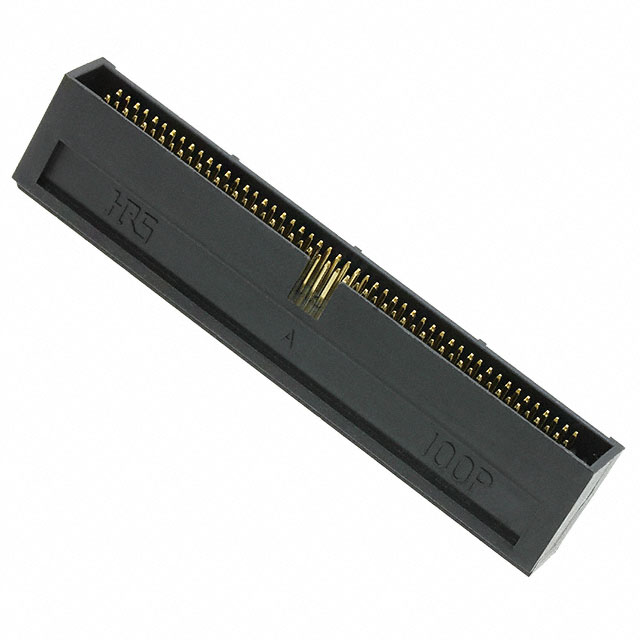

Hirose Electric Co Ltd HIF6A-100PA-1.27DS(71)	78.7 µin	2 µm	Square	Right Angle Through Hole	300 VDC	Brass	0.335 "	8.51 mm	-55 C	85 °C	Header	1.27 mm	0.05 in	Solder	8 µin	0.203 µm	Gold	Push-Pull	100	Black	2	0.1 in	2.54 mm	0.205 in	5.21 mm	Polybutylene Terephthalate (PBT)	0.5 A	UL94 V-0	Male Pin	Tin	Shrouded - 4 Wall	All

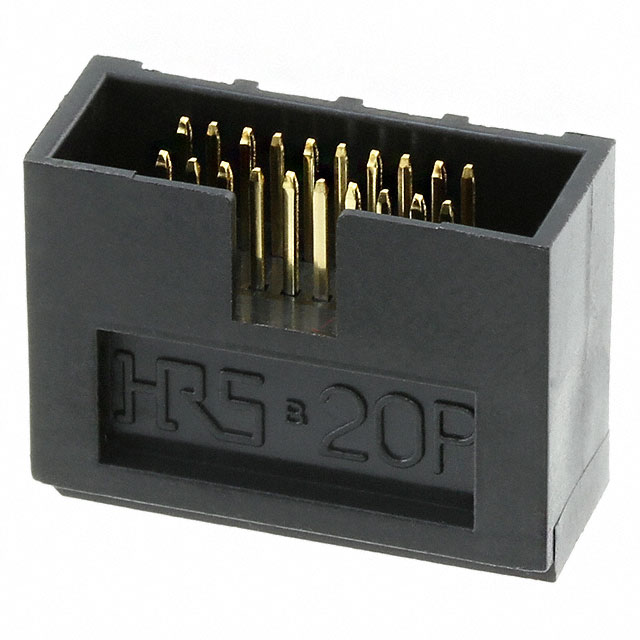

Hirose Electric Co Ltd HIF6A-20PA-1.27DS(71)	78.7 µin	2 µm	Square	Right Angle Through Hole	300 VDC	Brass	0.335 "	8.51 mm	-55 C	85 °C	Header	1.27 mm	0.05 in	Solder	8 µin	0.203 µm	Gold	Push-Pull	20	Black	2	0.1 in	2.54 mm	0.205 in	5.21 mm	Polybutylene Terephthalate (PBT)	0.5 A	UL94 V-0	Male Pin	Tin	Shrouded - 4 Wall	All

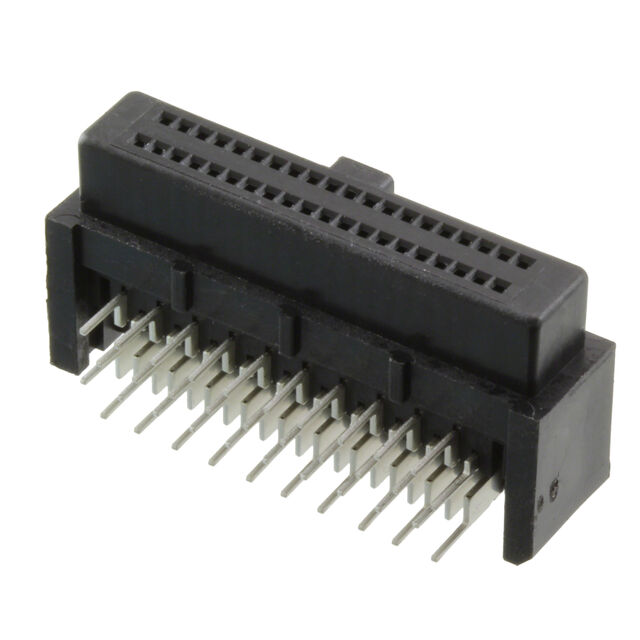

Hirose Electric Co Ltd HIF6A-40DA-1.27DS(71)			Square	Right Angle Through Hole	125 VAC	Copper Alloy	0.335 "	8.51 mm	-55 C	85 °C	Receptacle	1.27 mm	0.05 in	Solder	8 µin	0.203 µm	Gold	Push-Pull	40	Black	2	0.1 in	2.54 mm			Polybutylene Terephthalate (PBT)	0.5 A	UL94 V-0	Female Socket			All	General Purpose	Polarizing Key			0.118 in	3 mm		Board to Board Cable

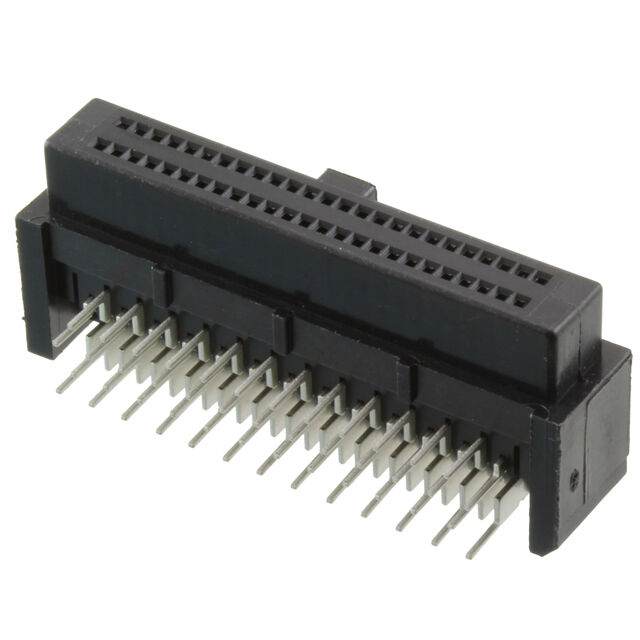

Hirose Electric Co Ltd HIF6A-50DA-1.27DS(71)			Square	Right Angle Through Hole	125 VAC	Copper Alloy	0.335 "	8.51 mm	-55 C	85 °C	Receptacle	1.27 mm	0.05 in	Solder	8 µin	0.203 µm	Gold	Push-Pull	50	Black	2	0.1 in	2.54 mm			Polybutylene Terephthalate (PBT)	0.5 A	UL94 V-0	Female Socket			All	General Purpose	Polarizing Key			0.118 in	3 mm		Board to Board Cable

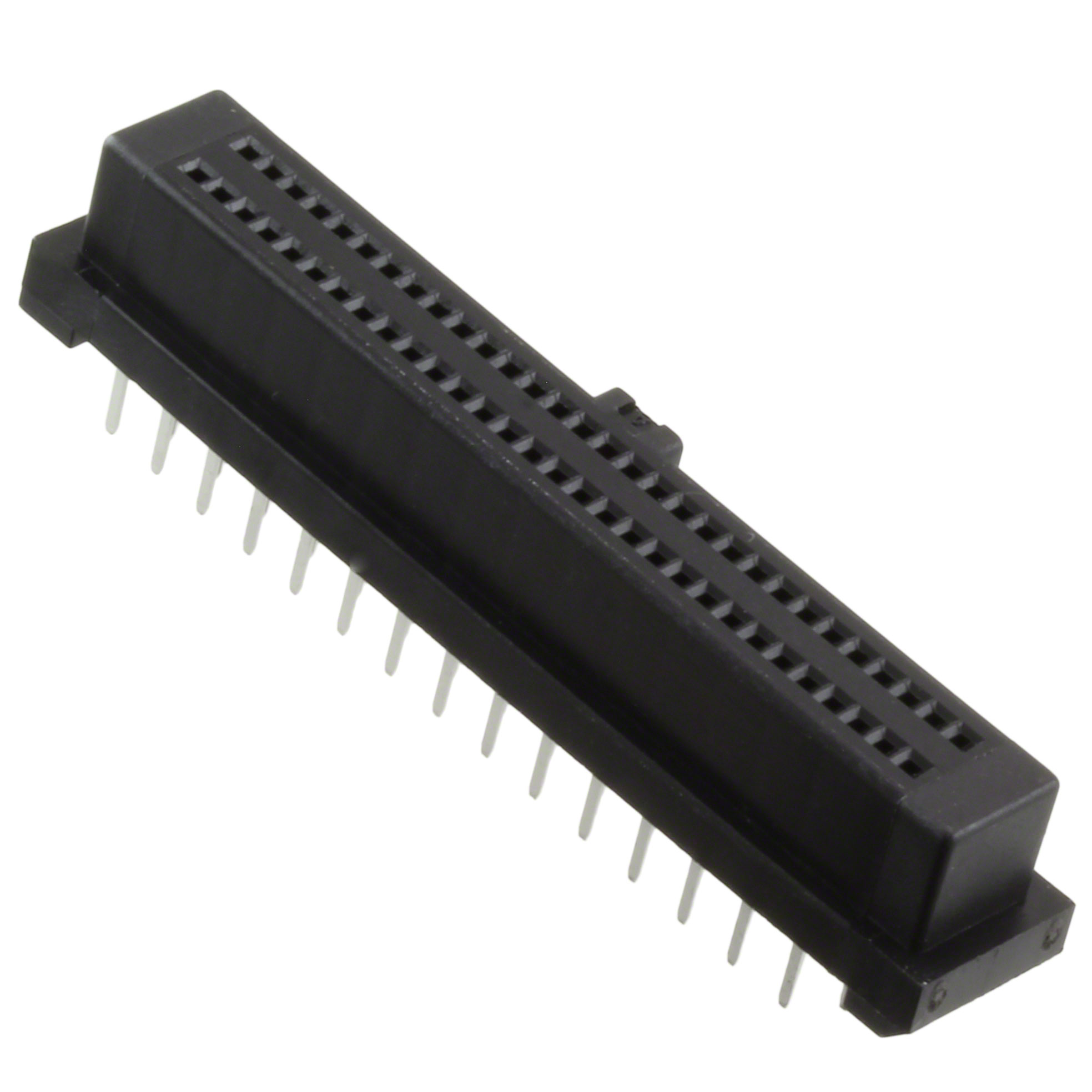

Hirose Electric Co Ltd HIF6A-60DA-1.27DSA(71)	78.7 µin	2 µm	Square	Through Hole	125 VAC	Copper Alloy			-55 C	85 °C	Receptacle	1.27 mm	0.05 in	Solder	8 µin	0.203 µm	Gold	Push-Pull	60	Black	2	0.1 in	2.54 mm			Polybutylene Terephthalate (PBT)	0.5 A	UL94 V-0	Female Socket	Tin		All	General Purpose	Polarizing Key	8.8 mm	0.346 in	0.118 in	3 mm	14.8 mm	Board to Board Cable

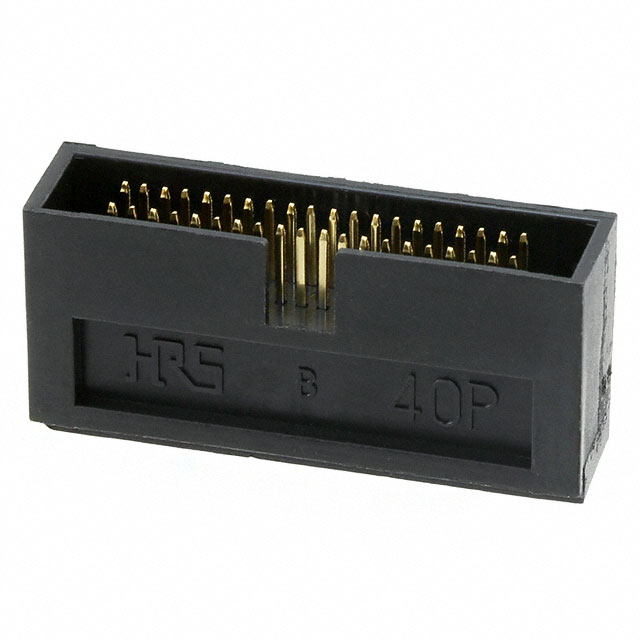

Hirose Electric Co Ltd HIF6A-40PA-1.27DS(71)	78.7 µin	2 µm	Square	Right Angle Through Hole	300 VDC	Brass	0.335 "	8.51 mm	-55 C	85 °C	Header	1.27 mm	0.05 in	Solder	8 µin	0.203 µm	Gold	Push-Pull	40	Black	2	0.1 in	2.54 mm	0.205 in	5.21 mm	Polybutylene Terephthalate (PBT)	0.5 A	UL94 V-0	Male Pin	Tin	Shrouded - 4 Wall	All
