M80-854 Series

Catalog

PIN HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 2 ROWS, 14 CONTACTS, THROUGH HOLE

Part	Mated Stacking Heights	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Mounting Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Material	Number of Rows [custom]	Connector Type	Contact Finish - Mating	Contact Type	Number of Positions Loaded	Termination	Shrouding	Contact Finish - Post	Insulation Color	Contact Material	Number of Positions	Insulation Height [z]	Insulation Height [z]	Fastening Type	Contact Length - Post	Contact Length - Post	Style	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Shape	Number of Positions [custom]

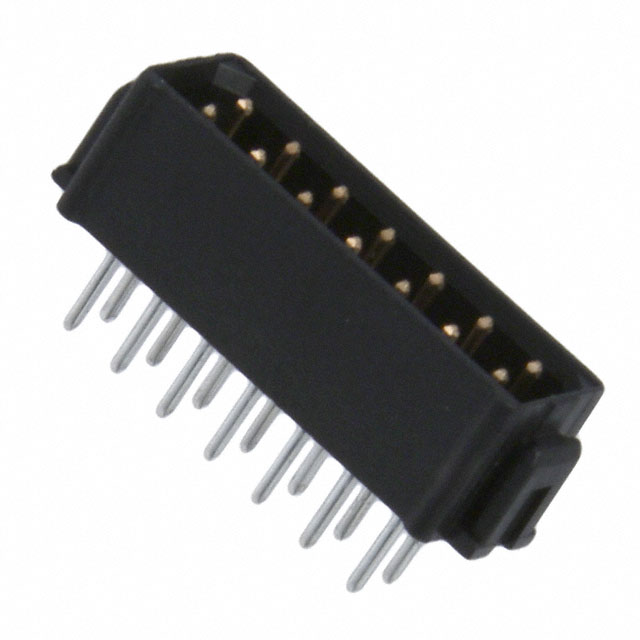

Harwin Inc. M80-8541442	7.23 mm 7.85 mm 10.2 mm 13.51 mm	118.1 µin	3 µm	Through Hole	0.079 "	2 mm	UL94 V-0	-55 C	125 °C	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	2	Header	Gold	Male Pin	All	Solder	Shrouded - 4 Wall	Tin	Black	Phosphor Bronze	14	0.219 in	5.56 mm	Latch Holder	0.118 in	3 mm	Board to Board Cable	29.5 µin	0.75 µm	2 mm	0.079 in	800 V	Circular

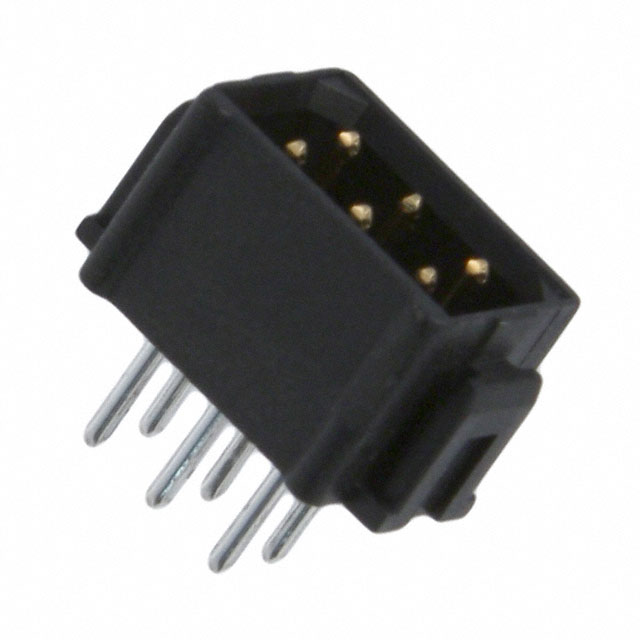

Harwin Inc. M80-8540842	7.23 mm 7.85 mm 10.2 mm 13.51 mm	118.1 µin	3 µm	Through Hole	0.079 "	2 mm	UL94 V-0	-55 C	125 °C	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	2	Header	Gold	Male Pin	All	Solder	Shrouded - 4 Wall	Tin	Black	Phosphor Bronze	8	0.219 in	5.56 mm	Latch Holder	0.118 in	3 mm	Board to Board Cable	29.5 µin	0.75 µm	2 mm	0.079 in	800 V	Circular
Harwin Inc. M80-8543445	7.23 mm 7.85 mm 10.2 mm 13.51 mm			Through Hole	0.079 "	2 mm	UL94 V-0	-55 C	125 °C	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	2	Header	Gold	Male Pin	All	Solder	Shrouded - 4 Wall	Gold	Black	Phosphor Bronze		0.219 in	5.56 mm	Latch Holder	0.118 in	3 mm	Board to Board Cable	29.5 µin	0.75 µm	2 mm	0.079 in	800 V	Circular	34
Harwin Inc. M80-8542645	7.23 mm 7.85 mm 10.2 mm 13.51 mm			Through Hole	0.079 "	2 mm	UL94 V-0	-55 C	125 °C	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	2	Header	Gold	Male Pin	All	Solder	Shrouded - 4 Wall	Gold	Black	Phosphor Bronze	26	0.219 in	5.56 mm	Latch Holder	0.118 in	3 mm	Board to Board Cable	29.5 µin	0.75 µm	2 mm	0.079 in	800 V	Circular
Harwin Inc. M80-8541842	7.23 mm 7.85 mm 10.2 mm 13.51 mm	118.1 µin	3 µm	Through Hole	0.079 "	2 mm	UL94 V-0	-55 C	125 °C	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	2	Header	Gold	Male Pin	All	Solder	Shrouded - 4 Wall	Tin	Black	Phosphor Bronze	18	0.219 in	5.56 mm	Latch Holder	0.118 in	3 mm	Board to Board Cable	29.5 µin	0.75 µm	2 mm	0.079 in	800 V	Circular
Harwin Inc. M80-8544442	7.23 mm 7.85 mm 10.2 mm 13.51 mm	118.1 µin	3 µm	Through Hole	0.079 "	2 mm	UL94 V-0	-55 C	125 °C	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	2	Header	Gold	Male Pin	All	Solder	Shrouded - 4 Wall	Tin	Black	Phosphor Bronze	44	0.219 in	5.56 mm	Latch Holder	0.118 in	3 mm	Board to Board Cable	29.5 µin	0.75 µm	2 mm	0.079 in	800 V	Circular
Harwin Inc. M80-8541045	7.23 mm 7.85 mm 10.2 mm 13.51 mm			Through Hole	0.079 "	2 mm	UL94 V-0	-55 C	125 °C	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	2	Header	Gold	Male Pin	All	Solder	Shrouded - 4 Wall	Gold	Black	Phosphor Bronze	10	0.219 in	5.56 mm	Latch Holder	0.118 in	3 mm	Board to Board Cable	29.5 µin	0.75 µm	2 mm	0.079 in	800 V	Circular

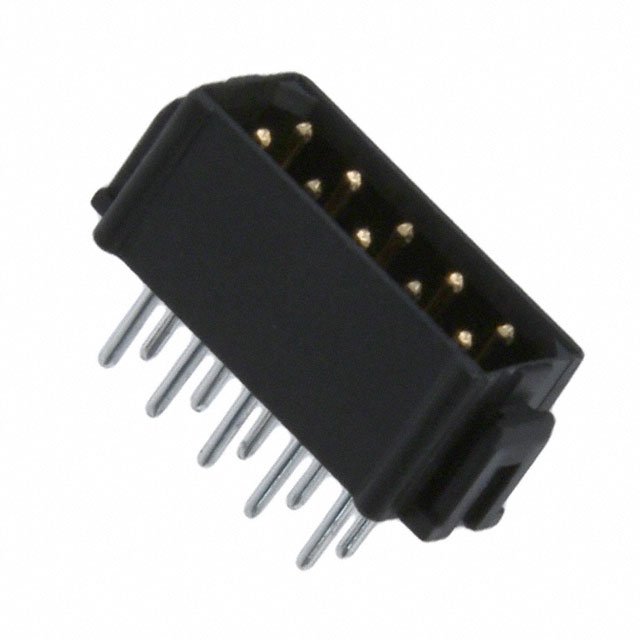

Harwin Inc. M80-8541042	7.23 mm 7.85 mm 10.2 mm 13.51 mm	118.1 µin	3 µm	Through Hole	0.079 "	2 mm	UL94 V-0	-55 C	125 °C	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	2	Header	Gold	Male Pin	All	Solder	Shrouded - 4 Wall	Tin	Black	Phosphor Bronze	10	0.219 in	5.56 mm	Latch Holder	0.118 in	3 mm	Board to Board Cable	29.5 µin	0.75 µm	2 mm	0.079 in	800 V	Circular
Harwin Inc. M80-8542642	7.23 mm 7.85 mm 10.2 mm 13.51 mm	118.1 µin	3 µm	Through Hole	0.079 "	2 mm	UL94 V-0	-55 C	125 °C	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	2	Header	Gold	Male Pin	All	Solder	Shrouded - 4 Wall	Tin	Black	Phosphor Bronze	26	0.219 in	5.56 mm	Latch Holder	0.118 in	3 mm	Board to Board Cable	29.5 µin	0.75 µm	2 mm	0.079 in	800 V	Circular
Harwin Inc. M80-8543442	7.23 mm 7.85 mm 10.2 mm 13.51 mm	118.1 µin	3 µm	Through Hole	0.079 "	2 mm	UL94 V-0	-55 C	125 °C	2.2 A	Polyphenylene Sulfide (PPS) Glass Filled	2	Header	Gold	Male Pin	All	Solder	Shrouded - 4 Wall	Tin	Black	Phosphor Bronze		0.219 in	5.56 mm	Latch Holder	0.118 in	3 mm	Board to Board Cable	29.5 µin	0.75 µm	2 mm	0.079 in	800 V	Circular	34
