STGF30H65DFB2 Series
Manufacturer: STMicroelectronics
Beta
⌘K

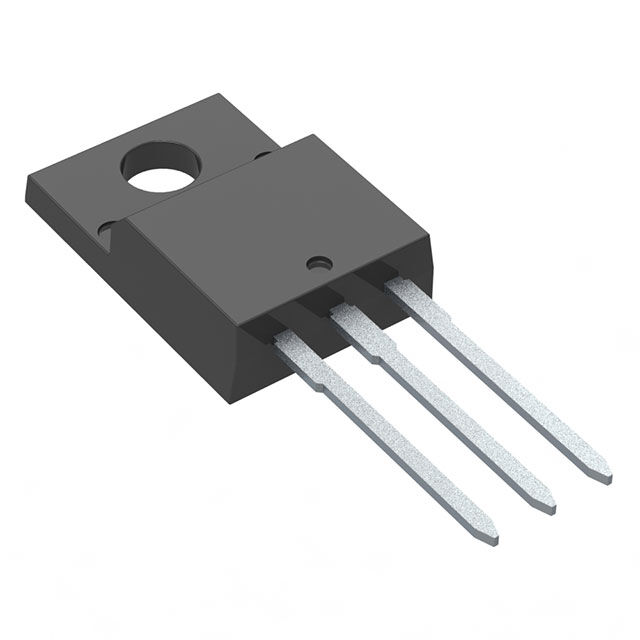

TRENCH GATE FIELD-STOP 650 V, 30 A HIGH SPEED HB2 SERIES IGBT IN A TO-220FP PACKAGE
| Part | Current - Collector Pulsed (Icm) | Test Condition | Switching Energy | Td (on/off) @ 25°C | Td (on/off) @ 25°C | Reverse Recovery Time (trr) | Operating Temperature [Max] | Operating Temperature [Min] | Power - Max [Max] | IGBT Type | Mounting Type | Vce(on) (Max) @ Vge, Ic | Package / Case | Voltage - Collector Emitter Breakdown (Max) [Max] | Gate Charge | Supplier Device Package | Current - Collector (Ic) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 STMicroelectronics | 90 A | 6.8 Ohm 15 V 30 A 400 V | 270 µJ 310 µJ | 18.4 ns | 71 ns | 115 ns | 175 °C | -55 °C | 50 W | Trench Field Stop | Through Hole | 2.1 V | TO-220-3 Full Pack | 650 V | 90 nC | TO-220FP | 50 A |
