W25Q16 Series

Catalog

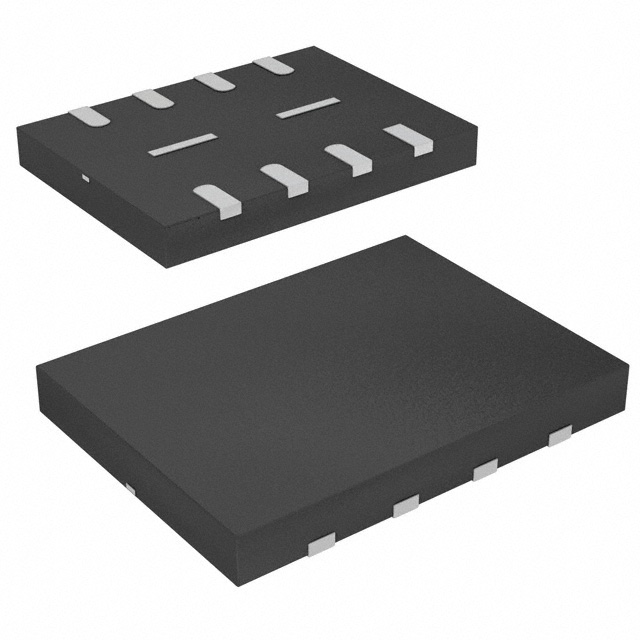

IC FLASH 16MBIT SPI/QUAD 8USON

...

Part	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Memory Size	Clock Frequency	Memory Format	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Memory Organization [custom]	Memory Organization [custom]	Mounting Type	Supplier Device Package	Technology	Memory Type	Memory Interface	Access Time	Write Cycle Time - Word, Page	Package / Case	Package / Case	Package / Case
Winbond Electronics W25Q16DWUUAG	8-UFDFN Exposed Pad	1.95 V	1.65 V	-40 °C	105 °C	2 MB	104 MHz	FLASH	40 µs	3 ms	2 M	8	Surface Mount	8-USON (4x3)	FLASH - NOR	Non-Volatile	QPI SPI - Quad I/O	7 ns
Winbond Electronics W25Q16JVUUIQ TR	8-UFDFN Exposed Pad	3.6 V	2.7 V	-40 ¯C	85 C	2 MB	133 MHz	FLASH			2 M	8	Surface Mount	8-USON (4x3)	FLASH - NOR	Non-Volatile	SPI - Quad I/O		3 ms
Winbond Electronics W25Q16JWSSSQ	8-SOIC	1.95 V	1.65 V	-40 °C	125 °C	2 MB	133 MHz	FLASH			2 M	8	Surface Mount	8-SOIC	FLASH - NOR	Non-Volatile	DTR QPI SPI - Quad I/O	6 ns	3 ms	0.209 in 5.3 mm
Winbond Electronics W25Q16DVDAIG	8-DIP (0.300" 7.62mm)	3.6 V	2.7 V	-40 ¯C	85 C	2 MB	104 MHz	FLASH	50 µs	3 ms	2 M	8	Through Hole	8-PDIP	FLASH - NOR	Non-Volatile	SPI - Quad I/O
Winbond Electronics W25Q16FWUXAQ	8-UFDFN Exposed Pad	1.95 V	1.65 V	-40 °C	105 °C	2 MB	104 MHz	FLASH	60 µs	3 ms	2 M	8	Surface Mount	8-USON (2x3)	FLASH - NOR	Non-Volatile	QPI SPI - Quad I/O	6 ns
Winbond Electronics W25Q16JWZPSQ	8-WDFN Exposed Pad	1.95 V	1.65 V	-40 °C	125 °C	2 MB	133 MHz	FLASH			2 M	8	Surface Mount	8-WSON (6x5)	FLASH - NOR	Non-Volatile	DTR QPI SPI - Quad I/O	6 ns	3 ms
Winbond Electronics W25Q16DVSSIQ	8-SOIC	3.6 V	2.7 V	-40 ¯C	85 C	2 MB	104 MHz	FLASH	50 µs	3 ms	2 M	8	Surface Mount	8-SOIC	FLASH - NOR	Non-Volatile	SPI - Quad I/O			0.209 in 5.3 mm
Winbond Electronics W25Q16DWSSAG	8-SOIC	1.95 V	1.65 V	-40 °C	105 °C	2 MB	104 MHz	FLASH	40 µs	3 ms	2 M	8	Surface Mount	8-SOIC	FLASH - NOR	Non-Volatile	QPI SPI - Quad I/O	7 ns		0.209 in 5.3 mm
Winbond Electronics W25Q16FWSVIQ	8-SOIC	1.95 V	1.65 V	-40 ¯C	85 C	2 MB	104 MHz	FLASH	60 µs	3 ms	2 M	8	Surface Mount	8-VSOP	FLASH - NOR	Non-Volatile	QPI SPI - Quad I/O				0.154 in	3.9 mm
Winbond Electronics W25Q16FWSNIQ	8-SOIC	1.95 V	1.65 V	-40 ¯C	85 C	2 MB	104 MHz	FLASH	60 µs	3 ms	2 M	8	Surface Mount	8-SOIC	FLASH - NOR	Non-Volatile	QPI SPI - Quad I/O				0.154 in	3.9 mm
