DF19 Series

Catalog

CONN HEADER SMD 20POS 1MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Contact Material	Mounting Type	Voltage Rating	Contact Type	Termination	Number of Positions	Material Flammability Rating	Contact Finish - Post	Number of Rows	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Current Rating (Amps)	Connector Type	Insulation Height	Insulation Height	Shrouding	Insulation Color	Style	Features	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Material	Note	Pitch	Pitch	Color	Contact Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Mated Stacking Heights	Pin or Socket	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]

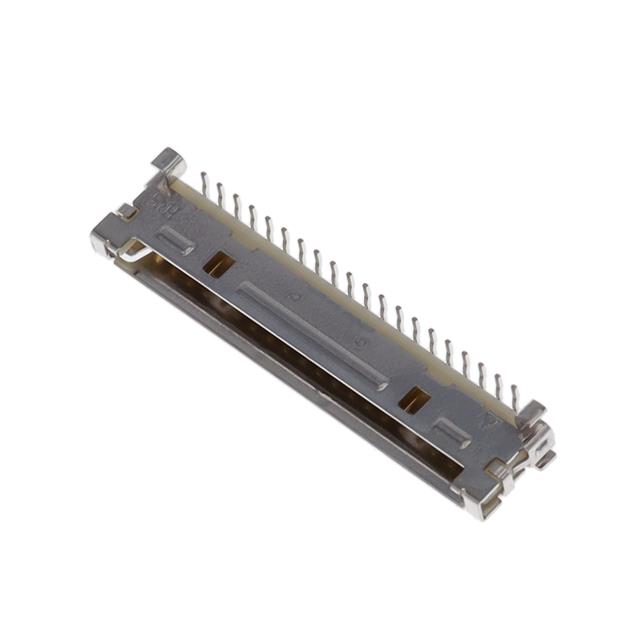

Hirose Electric Co Ltd DF19-20P-1V(52)	39.4 çin	1 çm	85 °C	-35 °C	All	Phosphor Bronze	Surface Mount	100 VAC	Male Pin	Solder	20	UL94 V-0	Tin	1	39.4 µin	1 µm	Varies by Wire Gauge	Receptacle	5.23 mm	0.206 in	Shrouded - 3 Wall	Beige	Board to Cable/Wire	Pick and Place Solder Retention	1 mm	0.039 in	Friction Lock	Nylon Polyamide (PA)
Hirose Electric Co Ltd DF19-30S-1C			85 °C	-35 °C			Free Hanging (In-Line)		Female Socket		30			1				Plug										Nylon Polyamide (PA)	Contacts Not Included	1 mm	0.039 in	Beige	Crimp

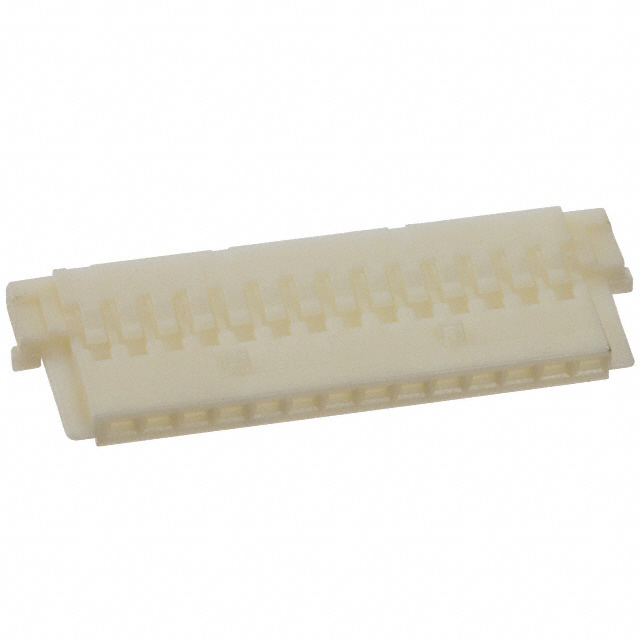

Hirose Electric Co Ltd DF19-14S-1C			85 °C	-35 °C			Free Hanging (In-Line)		Female Socket		14			1				Plug										Nylon Polyamide (PA)	Contacts Not Included	1 mm	0.039 in	Beige	Crimp

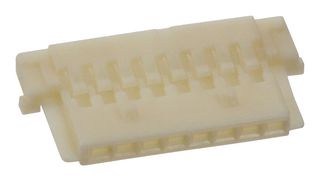

Hirose Electric Co Ltd DF19-8S-1C			85 °C	-35 °C			Free Hanging (In-Line)		Female Socket		8			1				Plug										Nylon Polyamide (PA)	Contacts Not Included	1 mm	0.039 in	Beige	Crimp
Hirose Electric Co Ltd DF19-20P-1V(56)	39.4 çin	1 çm	85 °C	-35 °C	All	Phosphor Bronze	Surface Mount	100 V	Male Pin	Solder	20	UL94 V-0	Tin-Copper	1				Receptacle	5.23 mm	0.206 in	Shrouded - 4 Wall	Beige	Board to Cable/Wire	Pick and Place Solder Retention	1 mm	0.039 in	Friction Lock	Nylon Polyamide (PA)						3.9 µin	0.099 µm	Gold	7.7 mm
Hirose Electric Co Ltd DF19-2830SCFA																																	Crimp					Socket	Gold	30 AWG	27.5 AWG
