AD9761 Series
Manufacturer: Analog Devices
Beta
⌘K

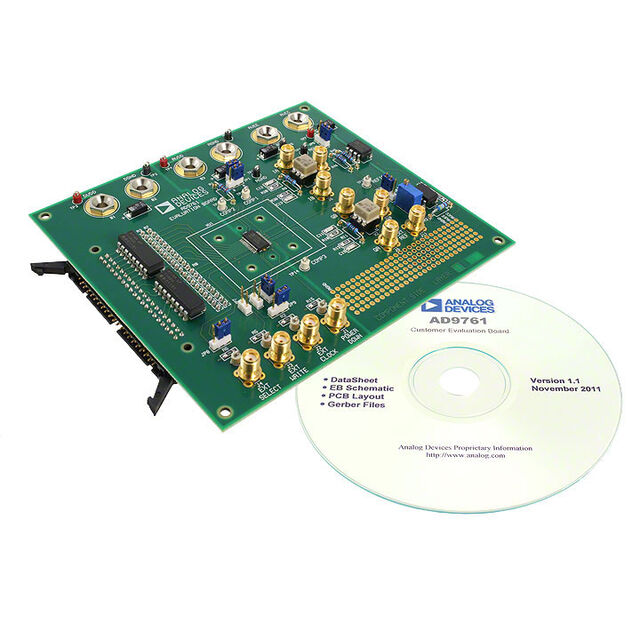

AD9761 DAC EVALUATION BOARD 40MSPS
| Part | Number of Bits [custom] | Data Interface | Supplied Contents | DAC Type | Number of DAC's | Settling Time | Utilized IC / Part | Sampling Rate (Per Second) | Architecture | Reference Type | Package / Case [custom] | Package / Case | Package / Case [custom] | Differential Output | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Supplier Device Package | Output Type | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | INL/DNL (LSB) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices | 10 | Parallel | Board(s) | Current | 2 | 35 ns | AD9761 | 40M | ||||||||||||||||
 Analog Devices | 10 | Parallel | 35 ns | Current Source | External Internal | 0.209 in | 28-SSOP | 5.3 mm | 85 °C | -40 °C | Surface Mount | 5.5 V | 2.7 V | 28-SSOP | Current - Unbuffered | 3 V | 5.5 V | 0.5 LSB 0.7 LSB |
