4715KL Series

Catalog

FAN AXIAL 119X38.4MM 48VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Current Rating (Amps)	Material - Frame	Air Flow	Air Flow	Material - Blade	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Features	Voltage - Rated	Weight	Weight	Noise	RPM	Bearing Type	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Fan Type	Power (Watts)	Approval Agency	Width [y]	Termination
NMB TECHNOLOGIES 4715KL-07W-B49-E50	25 VDC	55.2 VDC	50000 Hrs	0.2 A	Plastic	3.3 m³/min	118 CFM	Plastic	0.33 in H2O	82.2 Pa	70 °C	-10 °C	3 Wire Leads	Speed Sensor (Tach)	48 VDC	0.573 lb	259.91 g	46.5 dB	3200 RPM	Ball	Square	119 mm	119 mm	Tubeaxial	9.6 W	CE CSA UL VDE	38.4 mm

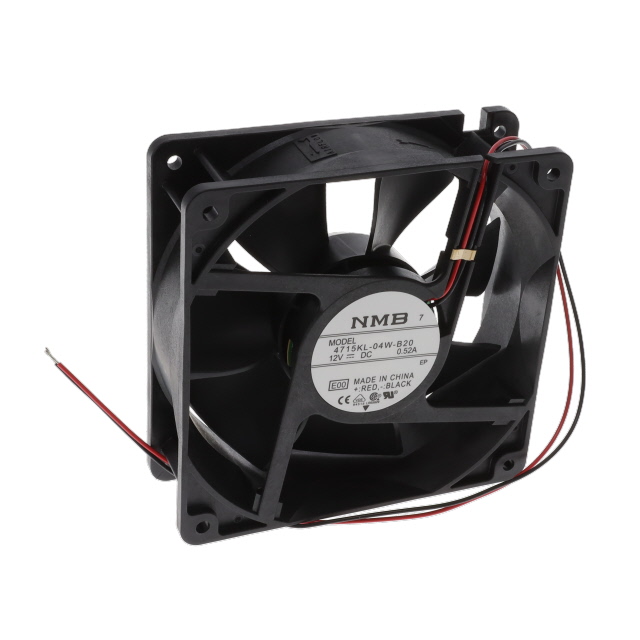

NMB TECHNOLOGIES 4715KL-04W-B20-E00	6 VDC	13.8 VDC	50000 Hrs	400 mA	Plastic	2.72 m³/min	97 CFM	Plastic	0.22 in H2O	54.8 Pa	70 °C	-10 °C	2 Wire Leads		12 VDC	0.573 lb	259.91 g	41 dB	2650 RPM	Ball	Square	119 mm	119 mm	Tubeaxial	4.8 W	CE CSA UL VDE	38.4 mm
NMB TECHNOLOGIES 4715KL-07W-B59-E00	25 VDC	55.2 VDC	100000 Hrs		Plastic	3.64 m³/min	130 CFM	Plastic	0.44 in H2O	109.6 Pa	70 °C	-10 °C	3 Wire Leads	Locked Rotor Sensor	48 VDC	0.573 lb	259.91 g	50 dB(A)	3600 RPM	Ball	Square	119 mm	119 mm	Tubeaxial	7.68 W	CE CSA UL VDE	38 mm
NMB TECHNOLOGIES 4715KL-05T-B40-P00	10 VDC	27.6 VDC	50000 Hrs	0.35 A	Plastic	3.3 m³/min	118 CFM	Plastic	0.33 in H2O	82.2 Pa	70 °C	-10 °C			24 VDC	0.573 lb	259.91 g	46.5 dB	3200 RPM	Ball	Square	119 mm	119 mm	Tubeaxial	8.4 W	CE CSA UL VDE	38.4 mm	2
NMB TECHNOLOGIES 4715KL-07W-B19-E00	25 VDC	55.2 VDC	50000 Hrs		Plastic	2.34 mł/min	83.6 CFM	Plastic	0.17 in H2O	42.3 Pa	70 °C	-10 °C	3 Wire Leads	Locked Rotor Sensor	48 VDC	0.573 lb	259.91 g	37 dB	2300 RPM	Ball	Square	119 mm	119 mm	Tubeaxial	3.84 W	CE CSA UL VDE	38.4 mm
NMB TECHNOLOGIES 4715KL-04W-B50-E00	9.5 VDC	12.6 VDC	50000 Hrs		Plastic	3.64 m³/min	129.9 CFM	Plastic	0.44 in H2O	109.6 Pa	40 °C	-10 °C	2 Wire Leads		12 VDC	0.573 lb	259.91 g	50 dB(A)	3600 RPM	Ball	Square	119 mm	119 mm	Tubeaxial	12 W	CE CSA UL VDE	38.4 mm
NMB TECHNOLOGIES 4715KL-05W-B39-E00	10 VDC	27.6 VDC	50000 Hrs	0.31 A	Plastic	3.02 m³/min	108 CFM	Plastic	0.27 in H2O	67.3 Pa	70 °C	-10 °C	3 Wire Leads	Locked Rotor Sensor	24 VDC	0.573 lb	259.91 g	42.5 dB	2950 RPM	Ball	Square	119 mm	119 mm	Tubeaxial	7.44 W	CE CSA UL VDE	38.4 mm
NMB TECHNOLOGIES 4715KL-07W-B19-E50	25 VDC	55.2 VDC	50000 Hrs		Plastic	2.34 mł/min	83.6 CFM	Plastic	0.17 in H2O	42.3 Pa	70 °C	-10 °C	3 Wire Leads	Speed Sensor (Tach)	48 VDC	0.573 lb	259.91 g	37 dB	2300 RPM	Ball	Square	119 mm	119 mm	Tubeaxial	3.84 W	CE CSA UL VDE	38.4 mm
NMB TECHNOLOGIES 4715KL-05W-B59-E00	18 VDC	25 VDC	50000 Hrs	0.5 A	Plastic	3.64 m³/min	130 CFM	Plastic	0.44 in H2O	109.6 Pa	40 °C	-10 °C	3 Wire Leads	Locked Rotor Sensor	24 VDC	0.573 lb	259.91 g	50 dB(A)	3600 RPM	Ball	Square	119 mm	119 mm	Tubeaxial	12 W	CE CSA UL VDE	38.4 mm
NMB TECHNOLOGIES 4715KL-04W-B49-E50	6 VDC	13.8 VDC	50000 Hrs	0.7 A	Plastic	3.3 m³/min	118 CFM	Plastic	0.33 in H2O	82.2 Pa	70 °C	-10 °C	3 Wire Leads	Speed Sensor (Tach)	12 VDC	0.573 lb	259.91 g	46.5 dB	3200 RPM	Ball	Square	119 mm	119 mm	Tubeaxial	8.4 W	CE CSA UL VDE	38.4 mm
