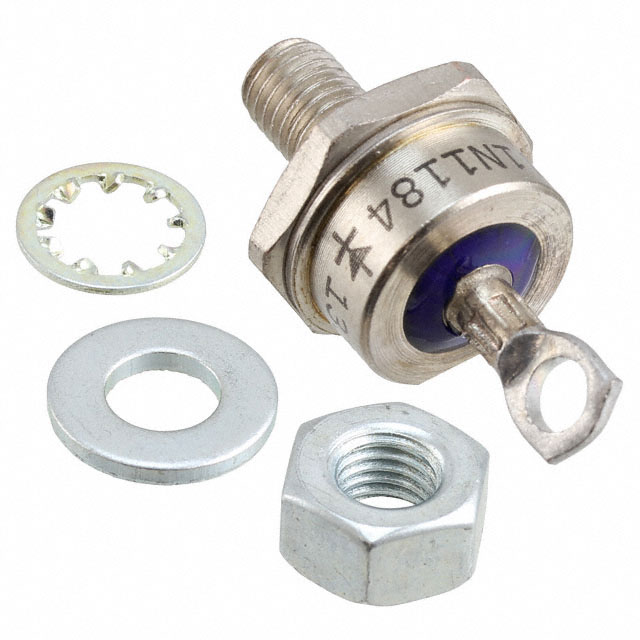

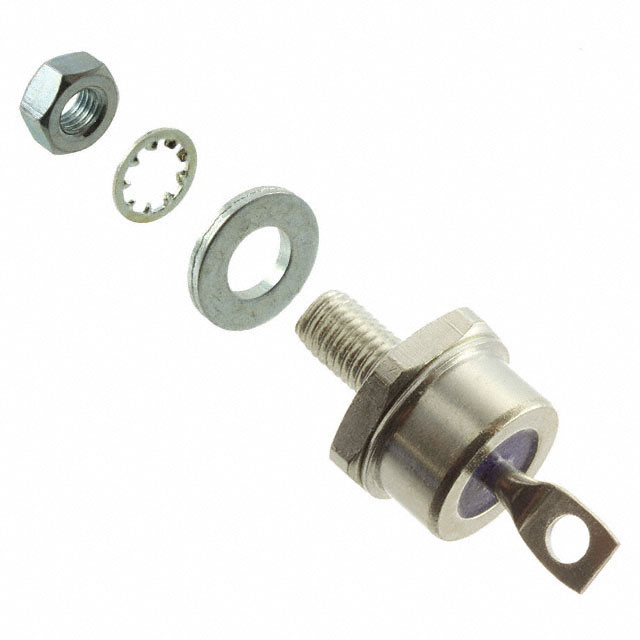

1N1184 Series
Manufacturer: GeneSiC Semiconductor
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
DIODE GEN PURP 100V 35A DO5
| Part | Package Name | Current - Reverse Leakage | Technology | Current - Average Rectified (Io) | Mounting Type | Voltage - Forward (Vf) (Max) | Package / Case | Operating Temperature - Junction (Min) | Operating Temperature - Junction (Max) | Voltage - DC Reverse (Vr) (Max) | Speed - Fast Recovery (Minimum) | Speed | Speed - Recovery Current | Speed - Recovery Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GeneSiC Semiconductor | DO-5 | 10 µA | Standard | 35 A | Chassis Stud Mount | 1.2 V | DO-203AB DO-5 Stud | -65 °C | 190 °C | 100 V | 200 mA 500 ns | Standard Recovery | 200 mA 200 mA | 500 ns |
 GeneSiC Semiconductor | DO-5 | 10 µA | Standard | 40 A | Chassis Stud Mount | 1.1 V | DO-203AB DO-5 Stud | -65 °C | 200 °C | 100 V | 200 mA 500 ns | Standard Recovery | 200 mA 200 mA | 500 ns |
