E1502S Series
Manufacturer: Prysmian Group
Beta
⌘K

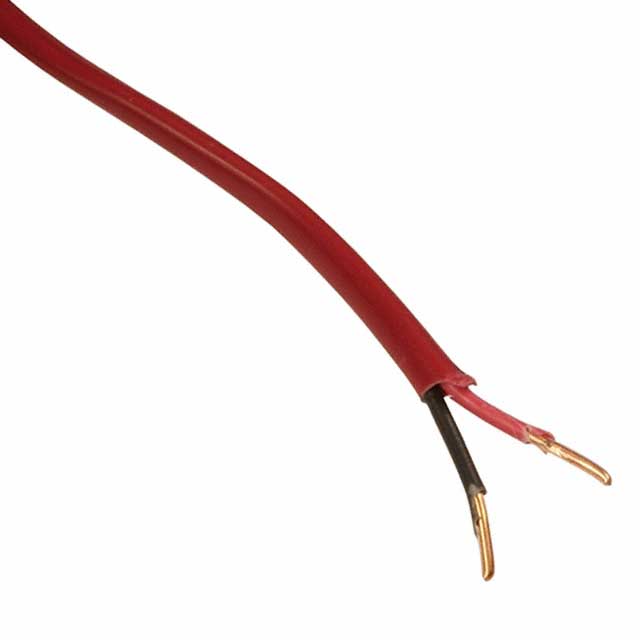

CABLE 2COND 18AWG RED
| Part | Jacket Color | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Usage | Features | Conductor Insulation | Number of Conductors | Voltage | Conductor Strand | Cable Type | Wire Gauge | Conductor Material | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Red | 304.8 m | 1000 ft | 0.15 in | 3.81 mm | Poly-Vinyl Chloride (PVC) | Alarm Safety | Rip Cord | Poly-Vinyl Chloride (PVC) | 2 | 300 VDC | Solid | Multi-Conductor | 18 AWG | Copper Annealed Bare | 0.381 mm | 0.015 in | ASTM B-3 | ||
Prysmian Group | Red | 15.24 m 304.8 m | 50 ft 1000 ft | 0.15 in | 3.81 mm | Poly-Vinyl Chloride (PVC) | Alarm Safety | Rip Cord | Poly-Vinyl Chloride (PVC) | 2 | 300 VDC | Solid | Multi-Conductor | 18 AWG | Copper Annealed Bare | 0.381 mm | 0.015 in | ASTM B-3 | 100 ft | 30.5 m |
Prysmian Group | Red | 304.8 m | 1000 ft | 0.15 in | 3.81 mm | Poly-Vinyl Chloride (PVC) | Alarm Safety | Rip Cord | Poly-Vinyl Chloride (PVC) | 2 | 300 VDC | Solid | Multi-Conductor | 18 AWG | Copper Annealed Bare | 0.381 mm | 0.015 in | ASTM B-3 | ||
Prysmian Group | Red | 152.4 m | 500 ft | 0.15 in | 3.81 mm | Poly-Vinyl Chloride (PVC) | Alarm Safety | Rip Cord | Poly-Vinyl Chloride (PVC) | 2 | 300 VDC | Solid | Multi-Conductor | 18 AWG | Copper Annealed Bare | 0.381 mm | 0.015 in | ASTM B-3 | ||
Prysmian Group | Red | 15.24 m 304.8 m | 50 ft 1000 ft | 0.15 in | 3.81 mm | Poly-Vinyl Chloride (PVC) | Alarm Safety | Rip Cord | Poly-Vinyl Chloride (PVC) | 2 | 300 VDC | Solid | Multi-Conductor | 18 AWG | Copper Annealed Bare | 0.381 mm | 0.015 in | ASTM B-3 | 100 ft | 30.5 m |
 Prysmian Group | Orange | 304.8 m | 1000 ft | 0.15 in | 3.81 mm | Poly-Vinyl Chloride (PVC) | Alarm Safety | Rip Cord | Poly-Vinyl Chloride (PVC) | 2 | 300 VDC | Solid | Multi-Conductor | 18 AWG | Copper Annealed Bare | 0.381 mm | 0.015 in | ASTM B-3 | ||
Prysmian Group | Black | 304.8 m | 1000 ft | 0.15 in | 3.81 mm | Poly-Vinyl Chloride (PVC) | Alarm Safety | Rip Cord | Poly-Vinyl Chloride (PVC) | 2 | 300 VDC | Solid | Multi-Conductor | 18 AWG | Copper Annealed Bare | 0.381 mm | 0.015 in | ASTM B-3 | ||
Prysmian Group | White | 152.4 m | 500 ft | 0.15 in | 3.81 mm | Poly-Vinyl Chloride (PVC) | Alarm Safety | Rip Cord | Poly-Vinyl Chloride (PVC) | 2 | 300 VDC | Solid | Multi-Conductor | 18 AWG | Copper Annealed Bare | 0.381 mm | 0.015 in | ASTM B-3 | ||
Prysmian Group | Black | 304.8 m | 1000 ft | 0.15 in | 3.81 mm | Poly-Vinyl Chloride (PVC) | Alarm Safety | Rip Cord | Poly-Vinyl Chloride (PVC) | 2 | 300 VDC | Solid | Multi-Conductor | 18 AWG | Copper Annealed Bare | 0.381 mm | 0.015 in | ASTM B-3 | ||
Prysmian Group | White | 152.4 m | 500 ft | 0.15 in | 3.81 mm | Poly-Vinyl Chloride (PVC) | Alarm Safety | Rip Cord | Poly-Vinyl Chloride (PVC) | 2 | 300 VDC | Solid | Multi-Conductor | 18 AWG | Copper Annealed Bare | 0.381 mm | 0.015 in | ASTM B-3 |
