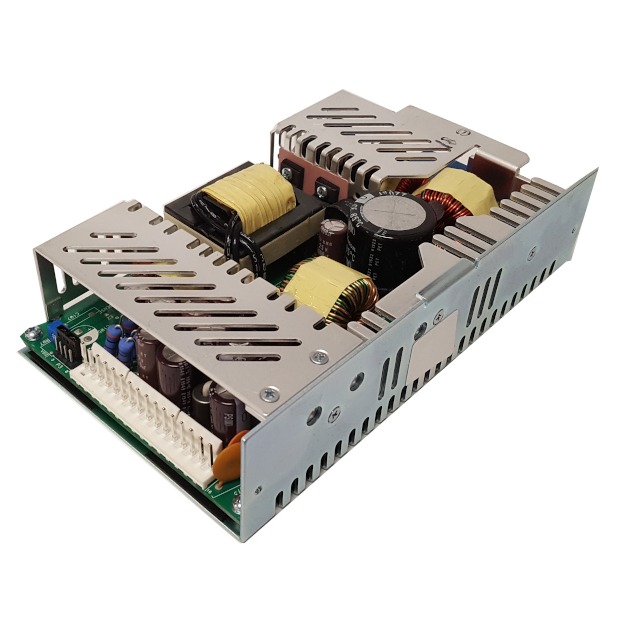

1010579 Series
Manufacturer: Integrated Power Designs
Beta
⌘K
REL-185-1006 CH
| Part | Standard Number | Approval Agency | Features | Voltage - Output 1 | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Type | Current - Output 1 | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | 60601-1; 62368-1 | CE cURus TUV UKCA | Adjustable Output Remote Sense Universal Input | 24 V | Chassis Mount | 4.36 in | 183.6 mm | 44.2 mm | 1.74 " | 110.7 mm | 7.23 in | 185 W | 1 | 70 °C | 0 °C | Chassis | 7.7 A | Industrial ITE (Commercial) Laboratory Medical |
