BM10B Series

Catalog

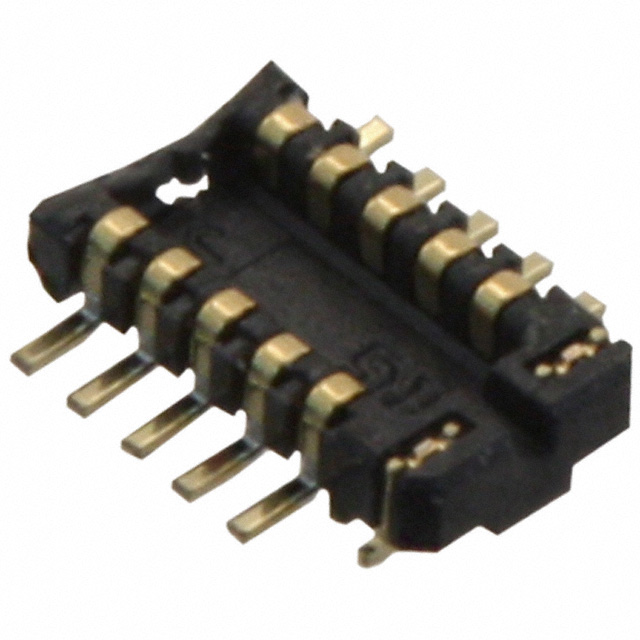

CONN HEADER 10POS SMD

Part	Connector Type	Number of Positions	Mated Stacking Heights	Pitch	Pitch	Features	Mounting Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Number of Rows [custom]	Number of Positions [custom]	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric Co Ltd BM10B(0.8)-10DP-0.4V(73)
Hirose Electric Co Ltd BM10B(0.8)-60DP-0.4V(73)
Hirose Electric Co Ltd BM10B(0.6)-24DP-0.4V(51)	Header Outer Shroud Contacts	24	0.6 mm	0.4 mm	0.016 in	Solder Retention	Surface Mount	Gold	0.02 in	0.5 mm	2
Hirose Electric Co Ltd BM10B(0.8)-34DP-0.4V(75)	Header Outer Shroud Contacts		0.8 mm	0.4 mm	0.016 in	Solder Retention	Surface Mount	Gold	0.025 in	0.63 mm	2	34	0.1 Ám	4 Áin
Hirose Electric Co Ltd BM10B(0.6)-10DP-0.4V(51)	Header Outer Shroud Contacts	10	0.6 mm	0.4 mm	0.016 in	Solder Retention	Surface Mount	Gold	0.02 in	0.5 mm	2
Hirose Electric Co Ltd BM10B(0.8)-24DP-0.4V(73)

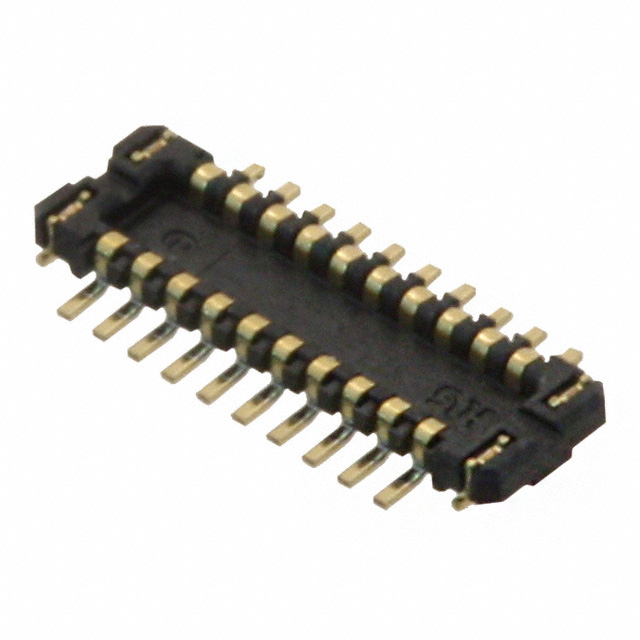

Hirose Electric Co Ltd BM10B(0.6)-20DP-0.4V(75)	Header Outer Shroud Contacts	20	0.6 mm	0.4 mm	0.016 in	Solder Retention	Surface Mount	Gold	0.02 in	0.5 mm	2		0.1 Ám	4 Áin
Hirose Electric Co Ltd BM10B(0.8)-40DP-0.4V(73)
Hirose Electric Co Ltd BM10B(0.8)-60DP-0.4V(51)	Header Outer Shroud Contacts	60	0.8 mm	0.4 mm	0.016 in	Solder Retention	Surface Mount	Gold	0.025 in	0.63 mm	2
Hirose Electric Co Ltd BM10B(0.8)-44DP-0.4V(75)	Header Outer Shroud Contacts	44	0.8 mm	0.4 mm	0.016 in	Solder Retention	Surface Mount	Gold	0.025 in	0.63 mm	2		0.1 Ám	4 Áin
