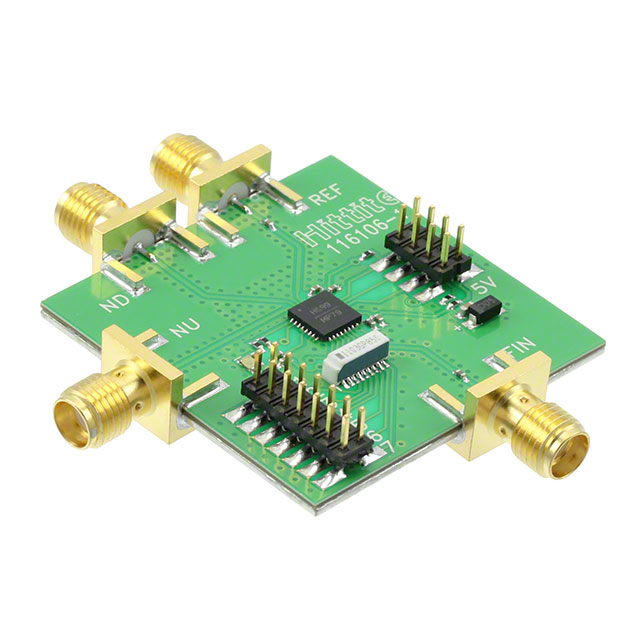

7 GHz Integer-N Synthesizer SMT
Key Features
• Ultra Low SSB Phase Noise Floor:-153 dBc/Hz @ 10 kHz offset @ 100 MHz
• Reference Frequency.
• Programmable Divider (N= 16 - 516) Operating up to 7 GHz
• Open Collector Output Buffer Amplifiers for Interfacing w/ Op-Amp Based Loop Filter
• Reversible Polarity PFD w/ Lock Detect Output
• 32 Lead 5x5mm SMT Package: 25mm
Description
AI
The HMC699LP5(E) is a frequency synthesizer with a wideband reversible polarity digital PFD and lock detect output. The divider operates from 160 - 7000 MHz with a continuous integer division ratio N = 56 to 519 and non-continuous division ratio N = 16 to 54. The HMC699LP5(E) high frequency operation along with ultra low phase noise floor make possible synthesizers with wide loop bandwidth and low N resulting in fast settling and very low phase noise. When used in conjunction with a differential loop filter, the HMC699LP5(E) can be used to phase lock a VCO to a reference oscillator. For continuous division ratio, the A counter and S counter must satisfy the condition: A + 1 ≥≥ S.APPLICATIONSSatellite Communication SystemsPoint-to-Point RadiosMilitary ApplicationsSonet Clock Generation
