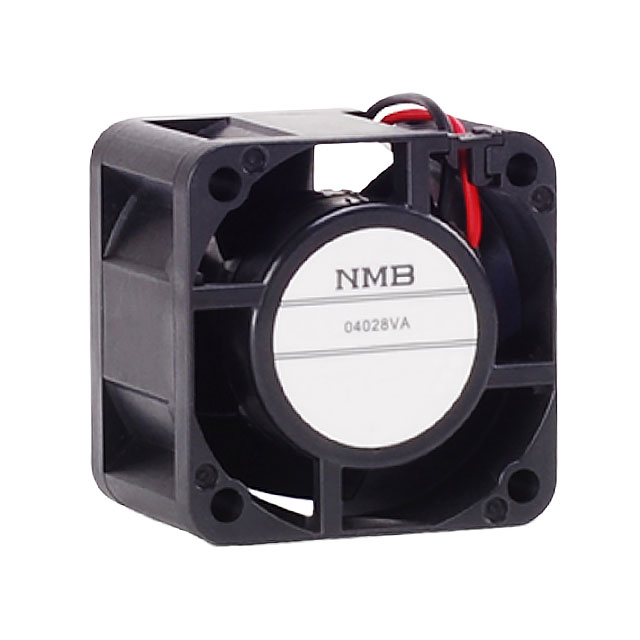

04028VA Series

DC Fans DC Axial Fan, 40x40x28mm, 24VDC, 12.4CFM, Rib Mount, Ball, Lead Wires, IP69K

Catalog

DC Fans DC Axial Fan, 40x40x28mm, 24VDC, 12.4CFM, Rib Mount, Ball, Lead Wires, IP69K

Part	Material - Blade	Air Flow	Air Flow	Material - Frame	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Noise	RPM	Weight	Weight	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Bearing Type	Static Pressure	Static Pressure	Fan Type	Size / Dimension [x]	Size / Dimension [z]	Termination	Width [y]	Power (Watts)	Voltage - Rated	Features	Lifetime @ Temp.
NMB TECHNOLOGIES 04028VA-24N-CA-00	Plastic	0.406 m³/min	14.5 CFM	Plastic	100 mA	10 VDC	26.4 VDC	44.5 dB	13000 RPM	0.121 lb	54.88 g	IP69K - Dust Tight High Temp Water Jets Waterproof	70 °C	-10 °C	Ball	209.2 Pa	0.84 in H2O	Tubeaxial	40 mm	40 mm	2 Wire Leads	28.1 mm	2.4 W	24 VDC
NMB TECHNOLOGIES 04028VA-24M-CA-00		0.35 m³/min	12.5 CFM					39 dB(A)	11000 RPM			IP69K - Dust Tight High Temp Water Jets Waterproof	70 °C	-10 °C	Ball	145.3 Pa	0.583 in H2O	Tubeaxial	40 mm	40 mm	2 Wire Leads	28.1 mm	1.68 W	24 VDC	Auto Restart
NMB TECHNOLOGIES 04028VA-24M-CA-00	Plastic	0.35 m³/min	12.5 CFM	Plastic	70 mA	10 VDC	26.4 VDC	39 dB(A)	11000 RPM			IP69K - Dust Tight High Temp Water Jets Waterproof	70 °C	-10 °C	Ball	145.3 Pa	0.583 in H2O	Tubeaxial	40 mm	40 mm	2 Wire Leads	28.1 mm	1.68 W	24 VDC	Auto Restart	100000 Hrs

DC Fans DC Axial Fan, 40x40x28mm, 24VDC, 12.4CFM, Rib Mount, Ball, Lead Wires, IP69K
