BG0903 Series

Catalog

FAN BLOWER 97X33MM 12VDC WIRE

Part	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Current Rating (Amps)	Lifetime @ Temp.	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Voltage - Rated	Noise	Bearing Type	Air Flow	Air Flow	Width	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Fan Type	RPM	Weight	Weight	Power (Watts)	Approval Agency	Features	Static Pressure	Static Pressure
NMB TECHNOLOGIES BG0903-B042-000-00	Plastic	8 V	13.8 VDC	Plastic	400 mA	100000 Hrs	97 mm	93.5 mm	Rectangular/Rounded	12 VDC	47.5 dB	Ball	20.5 CFM	0.574 m³/min	33 mm	-10 °C	60 °C	2 Wire Leads	Blower	2700 RPM	210.01 g	0.463 lb	4.8 W	CE CSA UL VDE
NMB TECHNOLOGIES BG0903-B043-00L-00	Plastic	8 V	13.8 VDC	Plastic	0.64 A	100000 Hrs	97 mm	93.5 mm	Rectangular/Rounded	12 VDC	51.5 dB	Ball	24.7 CFM	0.692 m³/min	33 mm	-10 °C	60 °C	3 Wire Leads	Blower	3200 RPM	210.01 g	0.463 lb	7.68 W	CE CSA UL VDE	Locked Rotor Sensor	225 Pa	0.903 in H2O
NMB TECHNOLOGIES BG0903-B044-00S-00	Plastic	8	12.8 VDC	Plastic	1.03 A	100000 Hrs	97 mm	93.5 mm	Rectangular/Rounded	12 VDC	54.5 dB	Ball	28.6 CFM	0.801 m³/min	33 mm	-10 °C	60 °C	3 Wire Leads	Blower	3700 RPM	210.01 g	0.463 lb	12.4 W	CE CSA UL VDE	Speed Sensor (Tach)	342 Pa	1.373 in H2O
NMB TECHNOLOGIES BG0903-B053-000-00	Plastic	10 VDC	27.6 VDC	Plastic	0.33 A	100000 Hrs	97 mm	93.5 mm	Rectangular/Rounded	24 VDC	51.5 dB	Ball	24.7 CFM	0.692 m³/min	33 mm	-10 °C	60 °C	2 Wire Leads	Blower	3200 RPM	210.01 g	0.463 lb	7.92 W	CE CSA UL VDE		224.2 Pa	0.9 in H2O
NMB TECHNOLOGIES BG0903-B047-000-00	Plastic	10.8 VDC	12.6 VDC	Plastic	1.6 A	100000 Hrs	97 mm	93.5 mm	Rectangular/Rounded	12 VDC		Ball	38.1 CFM	1.07 m³/min	33 mm	-10 °C	60 °C	2 Wire Leads	Blower	5200 RPM	210.01 g	0.463 lb	19.2 W	CE CSA UL VDE		473.3 Pa	1.9 in H2O

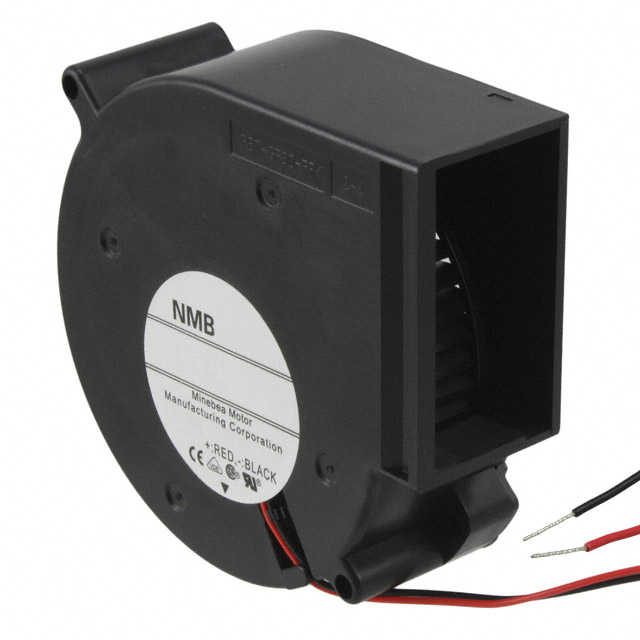

NMB TECHNOLOGIES BG0903-B044-000-00	Plastic	8	12.8 VDC	Plastic	1.03 A	100000 Hrs	97 mm	93.5 mm	Rectangular/Rounded	12 VDC	54.5 dB	Ball	28.6 CFM	0.801 m³/min	33 mm	-10 °C	60 °C	2 Wire Leads	Blower	3700 RPM	210.01 g	0.463 lb	12.4 W	CE CSA UL VDE		342 Pa	1.373 in H2O
NMB TECHNOLOGIES BG0903-B054-00L-00	Plastic	10 VDC	25 VDC	Plastic	490 mA	100000 Hrs	97 mm	93.5 mm	Rectangular/Rounded	24 VDC	54.5 dB	Ball	28.6 CFM	0.801 m³/min	33 mm	-10 °C	60 °C	3 Wire Leads	Blower	3700 RPM	210.01 g	0.463 lb	11.8 W	CE CSA UL VDE	Locked Rotor Sensor	342 Pa	1.373 in H2O
NMB TECHNOLOGIES BG0903-B042-00S-00	Plastic	8 V	13.8 VDC	Plastic	400 mA	100000 Hrs	97 mm	93.5 mm	Rectangular/Rounded	12 VDC	47.5 dB	Ball	20.5 CFM	0.574 m³/min	33 mm	-10 °C	60 °C	3 Wire Leads	Blower	2700 RPM	210.01 g	0.463 lb	4.8 W	CE CSA UL VDE	Speed Sensor (Tach)
NMB TECHNOLOGIES BG0903-B043-000-00	Plastic	8 V	13.8 VDC	Plastic	0.64 A	100000 Hrs	97 mm	93.5 mm	Rectangular/Rounded	12 VDC	51.5 dB	Ball	24.7 CFM	0.692 m³/min	33 mm	-10 °C	60 °C	2 Wire Leads	Blower	3200 RPM	210.01 g	0.463 lb	7.68 W	CE CSA UL VDE		224.2 Pa	0.9 in H2O
NMB TECHNOLOGIES BG0903-B052-000-00	Plastic	10 VDC	27.6 VDC	Plastic	0.21 A	100000 Hrs	97 mm	93.5 mm	Rectangular/Rounded	24 VDC	47.5 dB	Ball	20.5 CFM	0.574 m³/min	33 mm	-10 °C	60 °C	2 Wire Leads	Blower	2700 RPM	210.01 g	0.463 lb	5.04 W	CE CSA UL VDE
