RM21WTP Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN CAB CLAMP INT SZ21 SIL M20
| Part | Includes | For Use With/Related Products | Material | Cable Exit | Shell Size - Insert [custom] | Ingress Protection | Cable Opening | Cable Opening | Features | Color | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Thread Size | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Number of Positions | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Backshell Material, Plating | Primary Material | Orientation | Shell Finish | Mounting Type | Material Flammability Rating | Insert Material | Connector Type | Contact Material | Contact Finish - Mating | Shell Material | Fastening Type | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

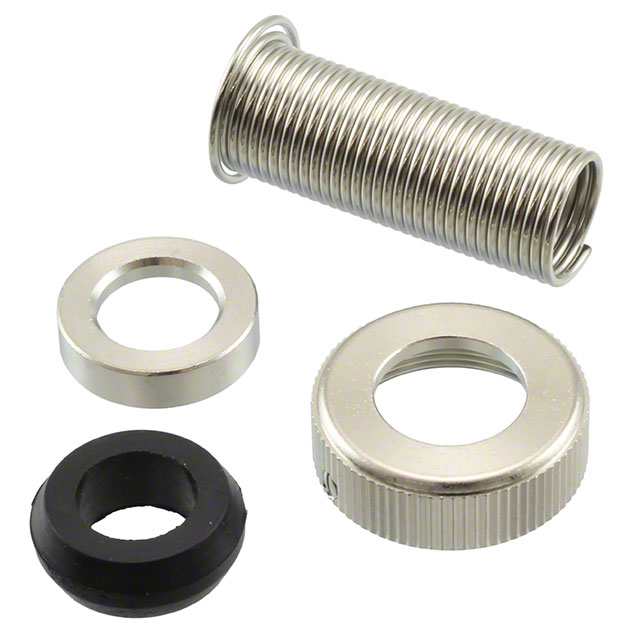

 Hirose Electric Co Ltd | 1 Gasket 1 Washer 2 pc Clamp | RM-W Series Plug | Brass | 180 ° | 21 | IP67 - Dust Tight Waterproof | 0.394 in | 10 mm | Gasket Washer | Silver | 23 mm | 0.906 " | M20x0.75 | Cable Clamp Internal | ||||||||||||||||||||

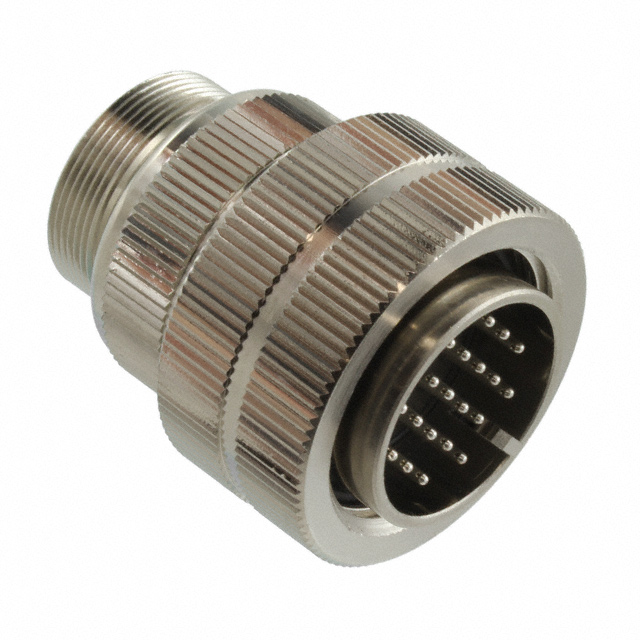

 Hirose Electric Co Ltd | 21 | IP67/IP68 | Backshell Coupling Nut | Silver | 85 °C | -25 °C | 350 VAC 490 VDC | 20 | 5 A | 8 µin | 0.203 µm | Brass Nickel | Metal | Keyed | Nickel | Free Hanging (In-Line) | UL94 V-0 | Diallyl Phthalate (DAP) | Plug Male Pins | Copper Alloy | Silver | Brass | Threaded | |||||||||||

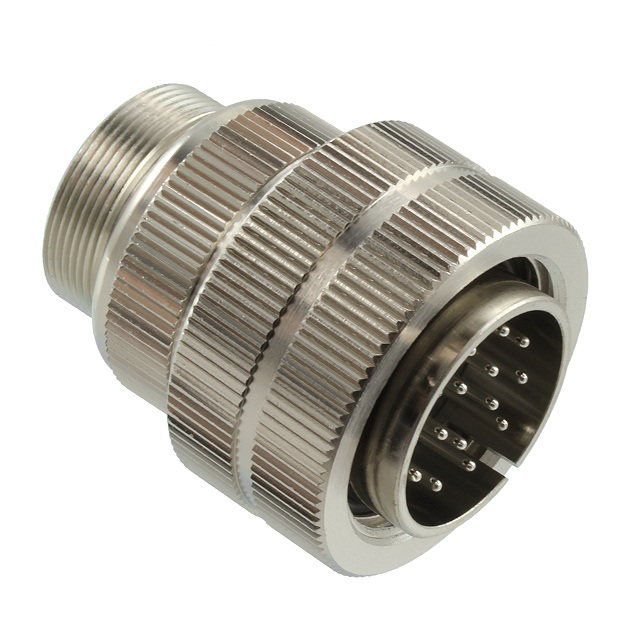

 Hirose Electric Co Ltd | 21 | IP67/IP68 | Backshell Coupling Nut | Silver | 85 °C | -25 °C | 500 VAC 700 VDC | 15 | 5 A | 78.7 µin | 2 µm | Brass Nickel | Metal | Keyed | Nickel | Free Hanging (In-Line) | UL94 V-0 | Diallyl Phthalate (DAP) | Plug Male Pins | Copper Alloy | Silver | Brass | Threaded | |||||||||||

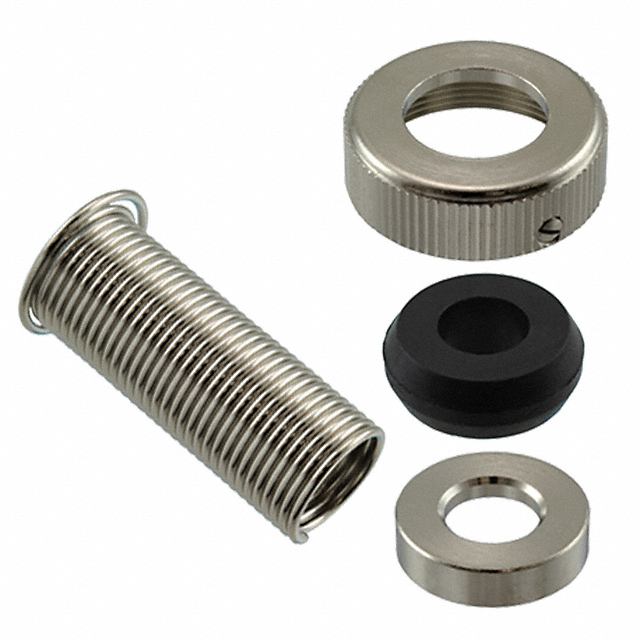

 Hirose Electric Co Ltd | 1 Gasket 1 Washer 2 pc Clamp | RM-W Series Plug | Brass | 180 ° | 21 | IP67 - Dust Tight Waterproof | 0.315 in | 8 mm | Gasket Washer | Silver | 23 mm | 0.906 " | M20x0.75 | Cable Clamp Internal | ||||||||||||||||||||

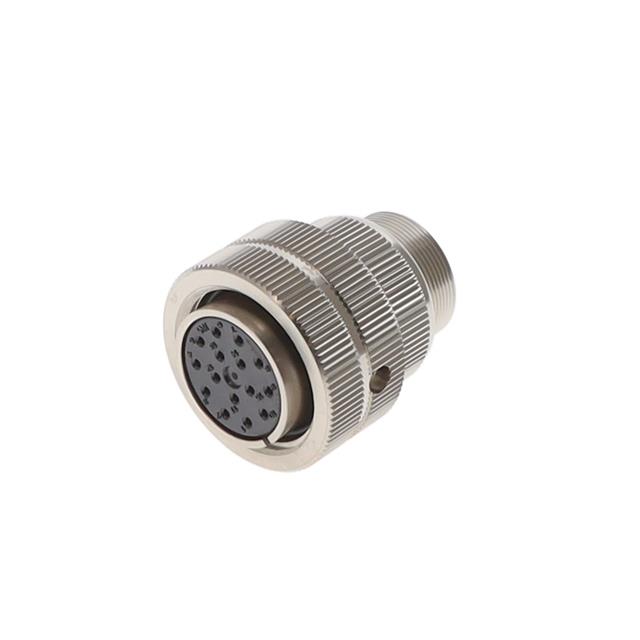

 Hirose Electric Co Ltd | 21 | IP67/IP68 | Backshell Coupling Nut | Silver | 85 °C | -25 °C | 500 VAC 700 VDC | 15 | 5 A | 5 µin | 0.127 µm | Brass Nickel | Metal | Keyed | Nickel | Free Hanging (In-Line) | UL94 V-0 | Polyphenylene Sulfide (PPS) | Plug Female Sockets | Copper Alloy | Silver | Brass | Threaded | Unshielded | ||||||||||
Hirose Electric Co Ltd | 21 | IP67/IP68 | Backshell Coupling Nut | Silver | 85 °C | -25 °C | 350 VAC 490 VDC | 20 | 5 A | 5 µin | 0.127 µm | Brass Nickel | Metal | Keyed | Nickel | Free Hanging (In-Line) | UL94 V-0 | Diallyl Phthalate (DAP) | Plug Male Pins | Copper Alloy | Silver | Brass | Threaded | Unshielded |
