MCP6V62 Series

80 µA, 1 MHz Zero-Drift Op Amps

Catalog

80 µA, 1 MHz Zero-Drift Op Amps

Part	Number of Circuits	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input Offset	Slew Rate	Current - Input Bias	Current - Supply	Output Type	Voltage - Supply Span (Min) [Min]	Current - Output / Channel	Gain Bandwidth Product	Voltage - Supply Span (Max) [Max]	Amplifier Type	Mounting Type	Package / Case	Package / Case [custom]	Package / Case	Supplier Device Package

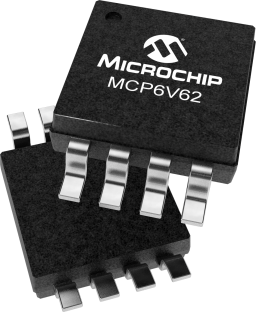

Microchip Technology MCP6V62T-E/MS	2	-40 °C	125 °C	8 µV	0.45 V/µs	1 pA	80 µA	Rail-to-Rail	1.8 V	23 mA	1 MHz	5.5 V	Zero-Drift	Surface Mount	8-MSOP 8-TSSOP	0.118 in	3 mm	8-MSOP
Microchip Technology MCP6V62-E/MS	2	-40 °C	125 °C	8 µV	0.45 V/µs	1 pA	80 µA	Rail-to-Rail	1.8 V	23 mA	1 MHz	5.5 V	Zero-Drift	Surface Mount	8-MSOP 8-TSSOP	0.118 in	3 mm	8-MSOP

Catalog

80 µA, 1 MHz Zero-Drift Op Amps

Key Features

• * Zero Drift architecture

• * Maximum offset of only 8 uV

• * Maximum offset drift of 15 nV/C

• * No 1/f noise

• * GBWP of 1 MHz

• * Enhanced EMI Rejection

• * Small 2x3 TDFN and MSOP packaging

Description

The MCP6V6x family of operational amplifiers provides input offset voltage correction for very low offset and offset drift. These devices provide a gain bandwidth product of 1 MHz, are unity gain stable, have no 1/f noise, and provide superior CMRR and PSRR performance. These products operate with a single supply voltage as low as 1.8V with a maximum quiescent current of only 130 uA.
