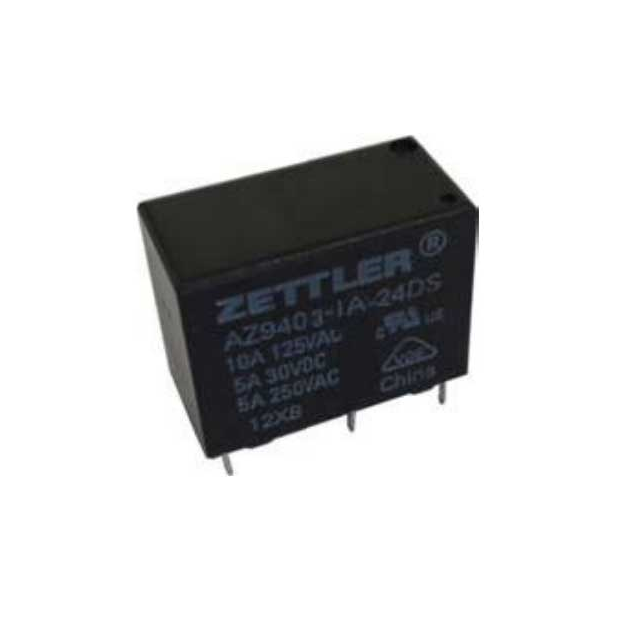

AZ9403-1A Series

Catalog

RELAY GEN PURPOSE SPST 10A 12V

Part	Coil Resistance	Load - Max Switching	Contact Material	Release Time	Contact Form	Coil Voltage	Must Release Voltage	Contact Rating (Current)	Coil Type	Operate Time	Seal Rating	Mounting Type	Must Operate Voltage	Approval Agency	Switching Voltage [Max]	Coil Current	Termination Style	Coil Insulation	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]
American Zettler AZ9403-1A-12DE	320 Ohms	150 W 2770 VA	Silver Tin Oxide (AgSnO)	5 ms	SPST-NO (1 Form A)	12 VDC	0.6 VDC	10 A	Non Latching	8 ms	Sealed - Fully	Through Hole	9 VDC	UL VDE	150 VDC 400 VAC	0.0375 A	PC Pin	Class F	General Purpose	-40 C	110 °C
American Zettler AZ9403-1A-24DSE		150 W 2770 VA	Silver Tin Oxide (AgSnO)	5 ms	SPST-NO (1 Form A)	24 VDC	1.2 VDC	10 A	Non Latching	8 ms	Sealed - Fully	Through Hole	18 VDC	UL VDE	150 VDC 400 VAC	8.6 mA	PC Pin	Class F	General Purpose	-40 C	110 °C
American Zettler AZ9403-1A-12DSE	720 Ohms	150 W 2770 VA	Silver Tin Oxide (AgSnO)	5 ms	SPST-NO (1 Form A)	12 VDC	0.6 VDC	10 A	Non Latching	8 ms	Sealed - Fully	Through Hole	9 VDC	UL VDE	150 VDC 400 VAC	16.7 mA	PC Pin	Class F	General Purpose	-40 C	110 °C
American Zettler AZ9403-1A-24DE	1280 Ohms	150 W 2770 VA	Silver Tin Oxide (AgSnO)	5 ms	SPST-NO (1 Form A)	24 VDC	1.2 VDC	10 A	Non Latching	8 ms	Sealed - Fully	Through Hole	18 VDC	UL VDE	150 VDC 400 VAC	18.8 mA	PC Pin	Class F	General Purpose	-40 C	110 °C
American Zettler AZ9403-1A-5DS	125 Ohms	150 W 2770 VA	Silver Tin Oxide (AgSnO)	5 ms	SPST-NO (1 Form A)	5 VDC	0.25 VDC	10 A	Non Latching	8 ms		Through Hole	3.8 VDC	UL VDE	150 VDC 400 VAC	40 mA	PC Pin	Class F	General Purpose	-40 C	110 °C
American Zettler AZ9403-1A-24DS		150 W 2770 VA	Silver Tin Oxide (AgSnO)	5 ms	SPST-NO (1 Form A)	24 VDC	1.2 VDC	10 A	Non Latching	8 ms		Through Hole	18 VDC	UL VDE	150 VDC 400 VAC	8.6 mA	PC Pin	Class F	General Purpose	-40 C	110 °C
