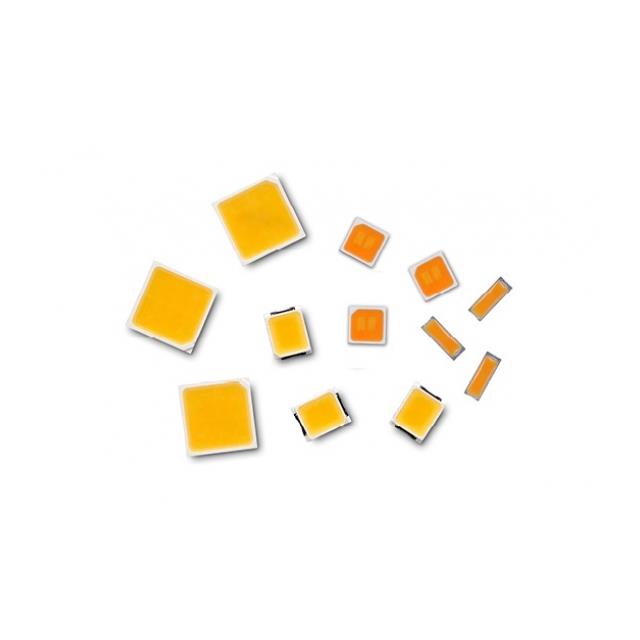

BXFN-50 Series

Manufacturer: BRIDGELUX

Catalog

LED F90 COOL WHITE 5000K 1411

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 25°C, Current - Test	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Color	Package / Case	Package / Case	CRI (Color Rendering Index)	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Supplier Device Package	Viewing Angle	Current - Test	CCT (K)	CCT (K)	Thermal Resistance of Package	Height - Seated (Max) [Max]	Height - Seated (Max)	Flux @ 85°C, Current - Test
BRIDGELUX BXFN-50G-21H-18C-00-0-3	0.7 mm	0.028 "	144 lm	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	Cool White	3528 Metric	1411	87	65 mA	18 V	160 lm/W	1411	120 °	50 mA	5000 K	3-Step MacAdam Ellipse
BRIDGELUX BXFN-50G-21H-18C-00-0-0			144 lm	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	Cool White	3528 Metric	1411	87	65 mA	18 V	160 lm/W	1411	120 °	50 mA	5000 K	6-Step MacAdam Ellipse	11.1 °C/W	0.031 in	0.8 mm	128 lm
BRIDGELUX BXFN-50G-13H-9D-00-0-3			145 lm	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	Cool White	3528 Metric	1411	87	120 mA	8.95 V		1411	120 °	100 mA	5000 K	3-Step MacAdam Ellipse	12 °C/W	0.031 in	0.8 mm	130 lm
BRIDGELUX BXFN-50G-11L-3C3-00-0-3			35 lm	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	Cool White	3528 Metric	1411	88	180 mA	2.82 V	188 lm/W	1411	120 °	65 mA	5000 K	3-Step MacAdam Ellipse	17.7 °C/W	0.031 in	0.8 mm	31 lm
BRIDGELUX BXFN-50G-13H-9C-00-0-3			130 lm	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	Cool White	3528 Metric	1411	87	120 mA	9.15 V	142 lm/W	1411	120 °	100 mA	5000 K	3-Step MacAdam Ellipse	12 °C/W	0.031 in	0.8 mm	113 lm
BRIDGELUX BXFN-50G-21L-3C4-00-0-0			36 lm	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	Cool White	3528 Metric	1411	88	240 mA	2.72 V		1411	120 °	65 mA	5000 K	6-Step MacAdam Ellipse	10 °C/W	0.031 in	0.8 mm	33 lm
BRIDGELUX BXFN-50G-21L-3C4-00-0-3			36 lm	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	Cool White	3528 Metric	1411	88	240 mA	2.72 V		1411	120 °	65 mA	5000 K	3-Step MacAdam Ellipse	10 °C/W	0.031 in	0.8 mm	33 lm
BRIDGELUX BXFN-50G-11L-37-00-0-3			31 lm	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	Cool White	3528 Metric	1411	88	120 mA	2.9 V	164 lm/W	1411	120 °	65 mA	5000 K	3-Step MacAdam Ellipse	28.6 °C/W	0.031 in	0.8 mm	27 lm
BRIDGELUX BXFN-50G-11L-3C3-00-0-0			35 lm	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	Cool White	3528 Metric	1411	88	180 mA	2.82 V	188 lm/W	1411	120 °	65 mA	5000 K	6-Step MacAdam Ellipse	17.6 °C/W	0.031 in	0.8 mm	31 lm
BRIDGELUX BXFN-50G-13H-9C-00-0-0			130 lm	Surface Mount	3.5 mm	0.11 "	2.8 mm	0.138 in	Cool White	3528 Metric	1411	87	120 mA	9.15 V	142 lm/W	1411	120 °	100 mA	5000 K	6-Step MacAdam Ellipse	12 °C/W	0.031 in	0.8 mm	113 lm
