FX6 Series

Catalog

CONN RCPT 80POS SMD GOLD

...

Part	Contact Finish	Pitch	Pitch	Features	Mated Stacking Heights	Number of Positions	Height Above Board [z]	Height Above Board [z]	Mounting Type	Connector Type	Number of Rows [custom]	Mated Stacking Heights [z]	Height Above Board	Height Above Board	Mated Stacking Heights [Max] [z]	Mated Stacking Heights [Min] [z]
Hirose Electric Co Ltd FX6-80S-0.8SV2	Gold	0.8 mm	0.031 in	Board Guide	7 mm 8 mm 9 mm	80	0.236 in	6 mm	Surface Mount	Receptacle Center Strip Contacts	2
Hirose Electric Co Ltd FX6A-60P-0.8SV1(71)	Gold	0.8 mm	0.031 in			60	0.236 in	6 mm	Surface Mount	Header Outer Shroud Contacts	2	6 mm 8 mm

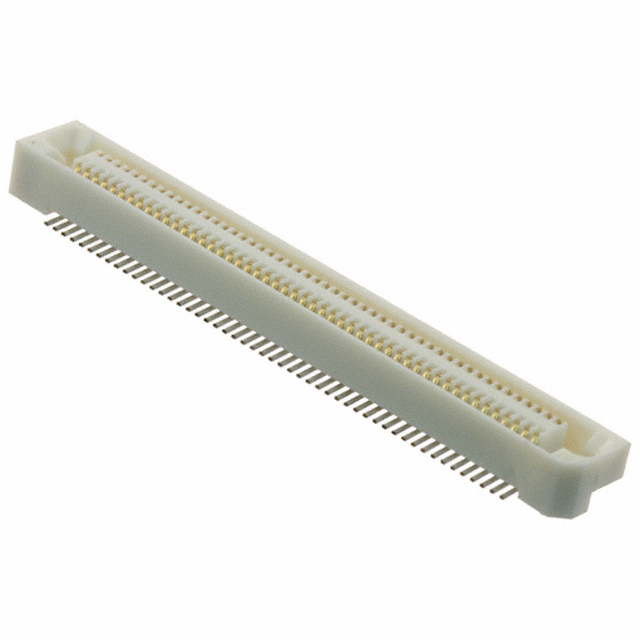

Hirose Electric Co Ltd FX6-100P-0.8SV1(71)	Gold	0.8 mm	0.031 in	Board Guide		100	0.236 in	6 mm	Surface Mount	Header Outer Shroud Contacts	2	6 mm 8 mm

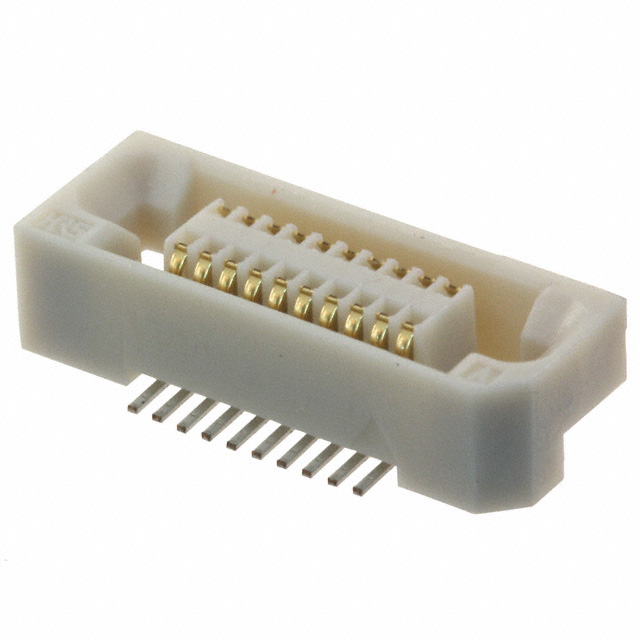

Hirose Electric Co Ltd FX6-20P-0.8SV1(93)	Gold	0.8 mm	0.031 in	Board Guide		20	0.236 in	6 mm	Surface Mount	Header Outer Shroud Contacts	2	6 mm 8 mm
Hirose Electric Co Ltd FX6-20P-0.8SV(92)	Gold	0.8 mm	0.031 in	Board Guide	5 mm 7 mm	20			Surface Mount	Header Outer Shroud Contacts	2		5 mm	0.197 in

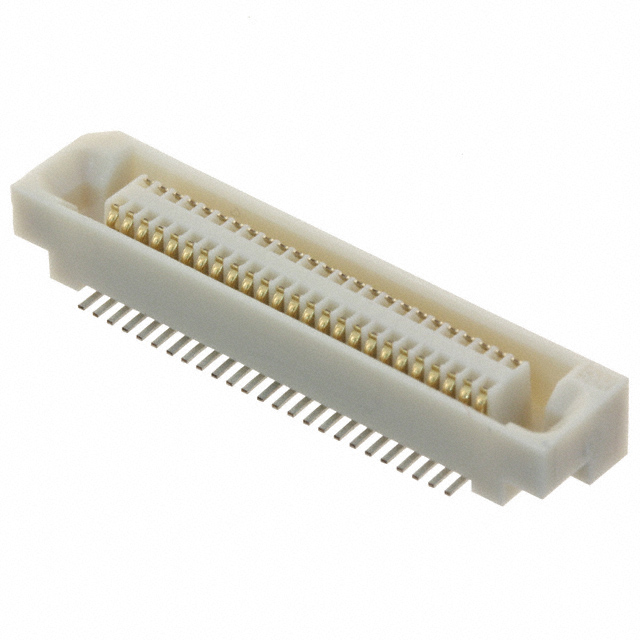

Hirose Electric Co Ltd FX6-50P-0.8SV2(89)	Gold	0.8 mm	0.031 in	Board Guide		50	0.276 in	7.01 mm	Surface Mount	Header Outer Shroud Contacts	2				9 mm	7 mm
Hirose Electric Co Ltd FX6A-40S-0.8SV(91)	Gold	0.8 mm	0.031 in		5 mm 6 mm 7 mm	40	0.157 in	4 mm	Surface Mount	Receptacle Center Strip Contacts	2
Hirose Electric Co Ltd FX6-60S-0.8SV2	Gold	0.8 mm	0.031 in	Board Guide	7 mm 8 mm 9 mm	60	0.236 in	6 mm	Surface Mount	Receptacle Center Strip Contacts	2
Hirose Electric Co Ltd FX6-20S-0.8SV(93)	Gold	0.8 mm	0.031 in	Board Guide	5 mm 6 mm 7 mm	20	0.157 in	4 mm	Surface Mount	Receptacle Center Strip Contacts	2
Hirose Electric Co Ltd FX6-40S-0.8SV2(71)	Gold	0.8 mm	0.031 in	Board Guide	7 mm 8 mm 9 mm	40	0.236 in	6 mm	Surface Mount	Receptacle Center Strip Contacts	2
