01380 Series

Catalog

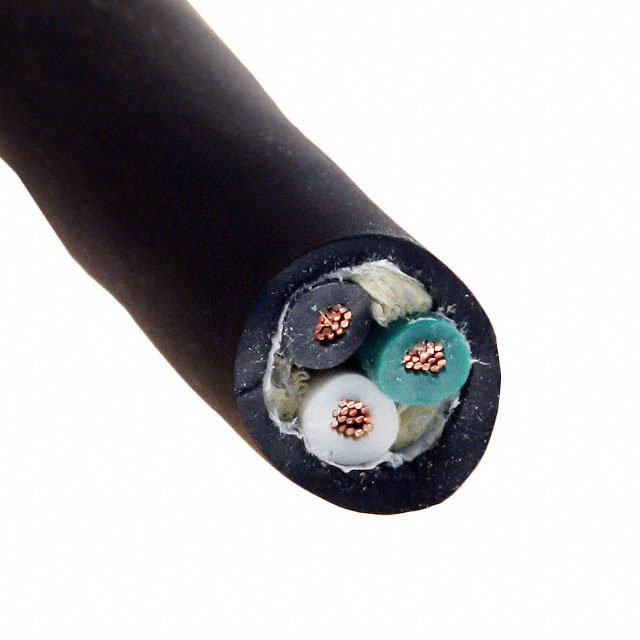

CABLE 3COND 12AWG BLACK

Part	Number of Conductors	Jacket (Insulation) Material	Cable Type	Conductor Material	Jacket Color	Conductor Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Voltage	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Length [x]	Length [x]
Prysmian Group 01380.41T.01	3	Carolprene	Multi-Conductor	Copper Bare	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	90 °C	-40 C	304.8 m	1000 ft	300 VDC	12 AWG	0.03 in	0.762 mm	30 AWG	65
Prysmian Group 01380.35.04	3	Carolprene	Multi-Conductor	Copper Annealed Bare	Orange	Ethylene Propylene Terpolymer Rubber (EPDM)	90 °C	-40 C	76.2 m	250 ft	300 VDC	12 AWG	0.03 in	0.762 mm	30 AWG	65
Prysmian Group 01380.35.01	3	Carolprene	Multi-Conductor	Copper Bare	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	90 °C	-40 C	76.2 m	250 ft	300 VDC	12 AWG	0.03 in	0.762 mm	30 AWG	65	Cord and Cordset
Prysmian Group 01380.99.01	3	Carolprene	Multi-Conductor	Copper Bare	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	90 °C	-40 C			300 VDC	12 AWG	0.03 in	0.762 mm	30 AWG	65
Prysmian Group 01380.46.01	3	Carolprene	Multi-Conductor	Copper Bare	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	90 °C	-40 C			300 VDC	12 AWG	0.03 in	0.762 mm	30 AWG	65
Prysmian Group 01380.35.01	3	Carolprene	Multi-Conductor	Copper Bare	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	90 °C	-40 C	76.2 m	250 ft	300 VDC	12 AWG	0.03 in	0.762 mm	30 AWG	65	Cord and Cordset
Prysmian Group 01380.41.01	3	Carolprene	Multi-Conductor	Copper Bare	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	90 °C	-40 C	304.8 m	1000 ft	300 VDC	12 AWG	0.03 in	0.762 mm	30 AWG	65	Cord and Cordset
Prysmian Group 01380.82.01	3	Carolprene	Multi-Conductor	Copper Annealed Bare	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	90 °C	-40 C			300 VDC	12 AWG	0.03 in	0.762 mm	30 AWG	65		100 ft	30.5 m
Prysmian Group 01380.41T.04	3	Carolprene	Multi-Conductor	Copper Annealed Bare	Orange	Ethylene Propylene Terpolymer Rubber (EPDM)	90 °C	-40 C	304.8 m	1000 ft	300 VDC	12 AWG	0.03 in	0.762 mm	30 AWG	65
Prysmian Group 01380R.44.01	3	Carolprene	Multi-Conductor	Copper Bare	Black	Ethylene Propylene Terpolymer Rubber (EPDM)	90 °C	-40 C	762 m	2500 ft	300 VDC	12 AWG	0.03 in	0.762 mm	30 AWG	65
