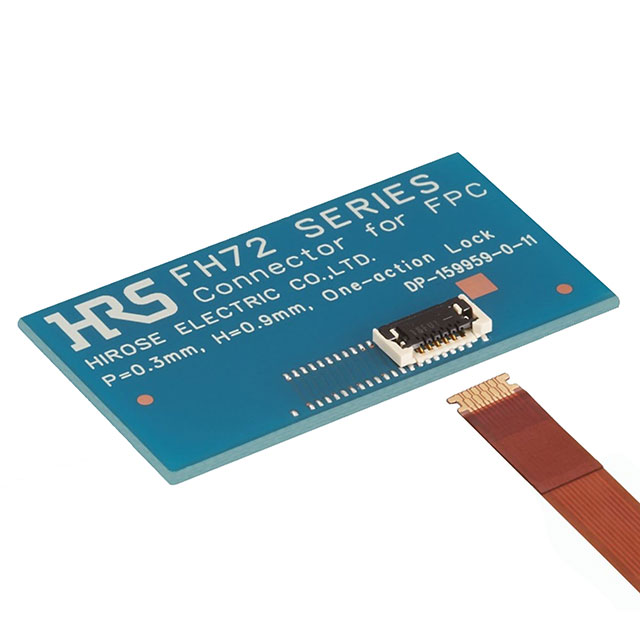

FH72 Series

Catalog

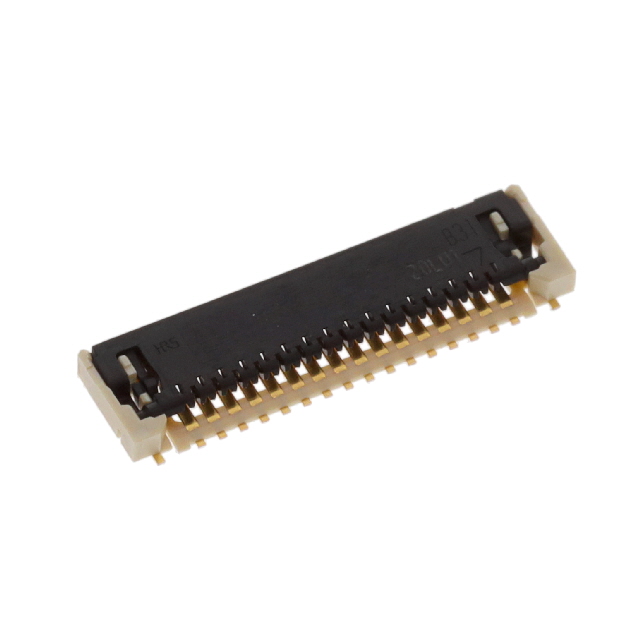

CONN FPC TOP 31POS 0.3MM R/A

Part	Actuator Color	Housing Color	Contact Finish Thickness	Contact Finish Thickness	Mating Cycles	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness [custom]	Mounting Type	Flat Flex Type	Height Above Board [z]	Height Above Board [z]	Locking Feature	Contact Finish	Voltage Rating	Cable End Type	Connector/Contact Type	Contact Material	Number of Positions [custom]	Actuator Material	Pitch	Pitch	Material Flammability Rating	Termination	Housing Material	Number of Positions
Hirose Electric Co Ltd FH72-31S-0.3SHW(99)	Black	Beige	1.25 Áin	0.03 Ám	10	0.2 A	-55 C	85 °C	0.2 mm	Right Angle Surface Mount	FPC	0.88 mm	0.035 in	Flip Lock	Gold	30 VDC	Notched	Contacts Top	Copper Alloy	31	Polyamide (PA) Nylon	0.012 in	0.3 mm	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)
Hirose Electric Co Ltd FH72-11S-0.3SHW	Black	Beige	1.25 Áin	0.03 Ám	10	0.2 A	-55 C	85 °C	0.2 mm	Right Angle Surface Mount	FPC	0.88 mm	0.035 in	Flip Lock	Gold	30 VDC	Notched	Contacts Top	Copper Alloy		Polyamide (PA) Nylon	0.012 in	0.3 mm	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)	11
Hirose Electric Co Ltd FH72-21S-0.3SHW	Black	Beige	1.25 Áin	0.03 Ám	10	0.2 A	-55 C	85 °C	0.2 mm	Right Angle Surface Mount	FPC	0.88 mm	0.035 in	Flip Lock	Gold	30 VDC	Notched	Contacts Top	Copper Alloy		Polyamide (PA) Nylon	0.012 in	0.3 mm	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)	21
Hirose Electric Co Ltd FH72-31S-0.3SHW	Black	Beige	1.25 Áin	0.03 Ám	10	0.2 A	-55 C	85 °C	0.2 mm	Right Angle Surface Mount	FPC	0.88 mm	0.035 in	Flip Lock	Gold	30 VDC	Notched	Contacts Top	Copper Alloy	31	Polyamide (PA) Nylon	0.012 in	0.3 mm	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)
Hirose Electric Co Ltd FH72-21S-0.3SHW(99)	Black	Beige	1.25 Áin	0.03 Ám	10	0.2 A	-55 C	85 °C	0.2 mm	Right Angle Surface Mount	FPC	0.88 mm	0.035 in	Flip Lock	Gold	30 VDC	Notched	Contacts Top	Copper Alloy		Polyamide (PA) Nylon	0.012 in	0.3 mm	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)	21
Hirose Electric Co Ltd FH72-11S-0.3SHW(99)	Black	Beige	1.25 Áin	0.03 Ám	10	0.2 A	-55 C	85 °C	0.2 mm	Right Angle Surface Mount	FPC	0.88 mm	0.035 in	Flip Lock	Gold	30 VDC	Notched	Contacts Top	Copper Alloy		Polyamide (PA) Nylon	0.012 in	0.3 mm	UL94 V-0	Solder	Liquid Crystal Polymer (LCP)	11
